Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 921:

  What is the purpose of the POST operation on a router?

  A. determine whether additional hardware has been added
  B. locate an IOS image for booting
  C. enable a TFTP server
  D. set the configuration register
  A. determine whether additional hardware has been added

• Question 922:

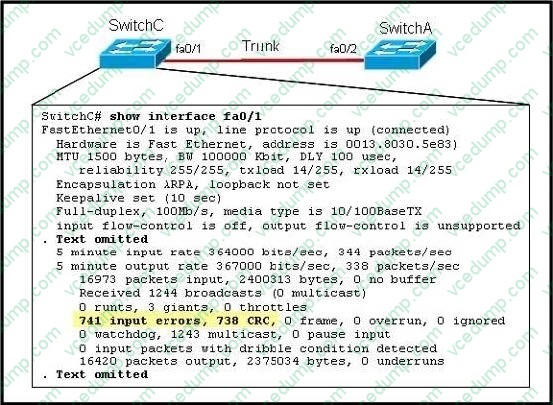

  Refer to the exhibit.



  Given this output for SwitchC, what should the network administrator's next action be?

  A. Check the trunk encapsulation mode for SwitchC's fa0/1 port.
  B. Check the duplex mode for SwitchC's fa0/1 port.
  C. Check the duplex mode for SwitchA's fa0/2 port.
  D. Check the trunk encapsulation mode for SwitchA's fa0/2 port.
  C. Check the duplex mode for SwitchA's fa0/2 port.

  ---

  Here we can see that this port is configured for full duplex, so the next step would be to check the duplex setting of the port on the other switch. A mismatched trunk encapsulation would not result in input errors and CRC errors.

• Question 923:

  Scenario

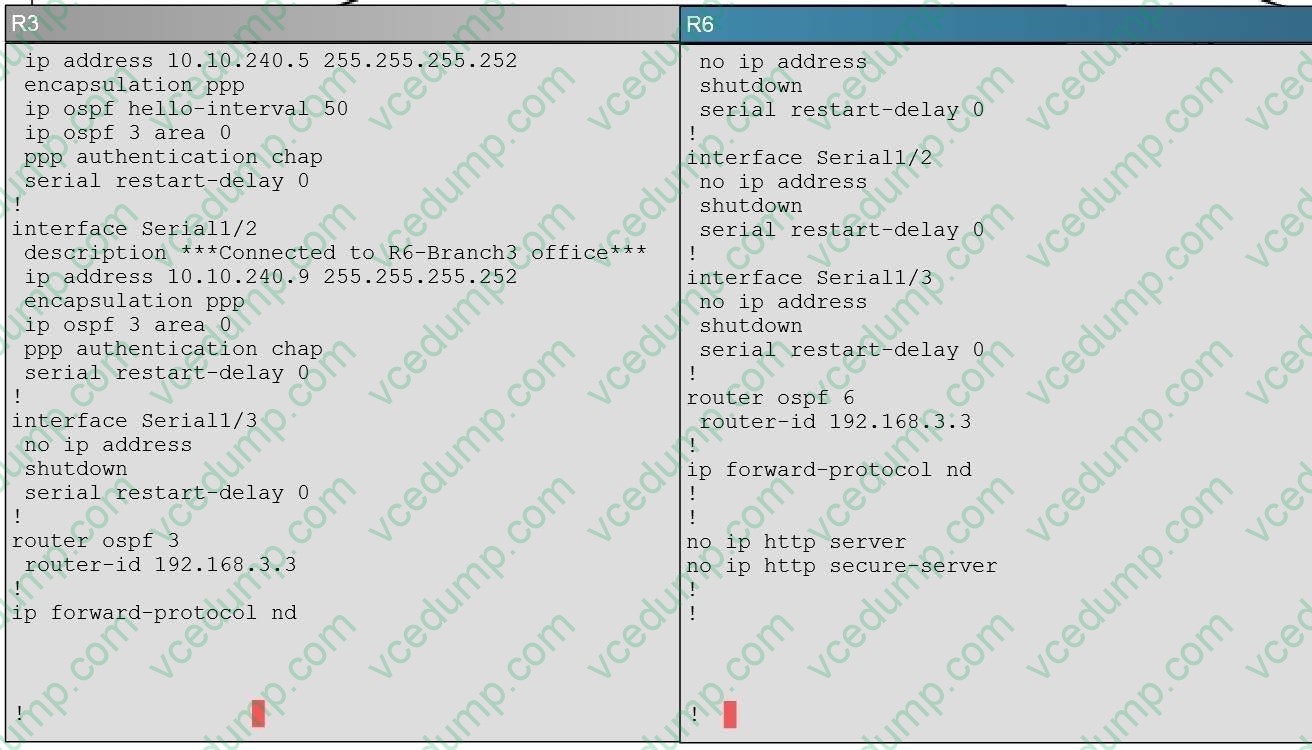

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links.

  You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the main office and the routers located in the remote branch offices.



  An OSPF neighbor adjacency is not formed between R3 in the main office and R6 in the Branch3 office. What is causing the problem?

  A. There is an area ID mismatch.
  B. There is a PPP authentication issue; the username is not configured on R3 and R6.
  C. There is an OSPF hello and dead interval mismatch.
  D. The R3 router ID is configured on R6.
  D. The R3 router ID is configured on R6.

  ---

  Using the show running-config command we see that R6 has been incorrectly configured with the same router ID as R3 under the router OSPF process.



• Question 924:

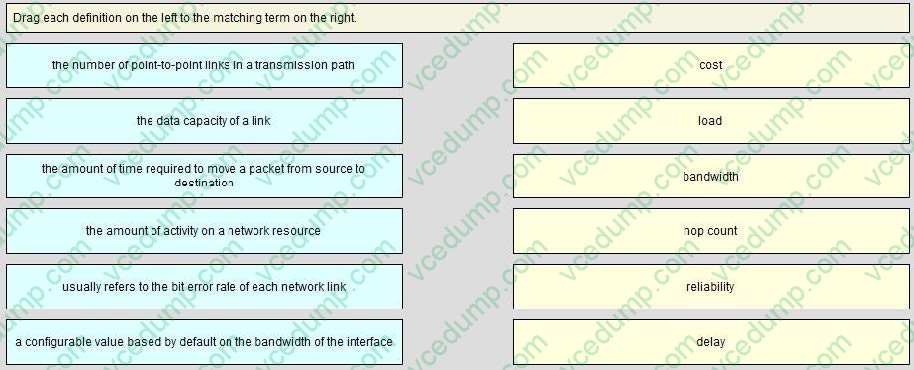

  Drag each definition on the left to the matching term on the right.

  Select and Place:





• Question 925:

  Which NAT term is defined as a group of addresses available for NAT use?

  A. NAT pool
  B. dynamic NAT
  C. static NAT
  D. one-way NAT
  A. NAT pool

• Question 926:

  Which HSRP Feature was new in HSRPv2 ?

  A. Virtual MAC Address
  B. Preemption
  C. Tracking
  D. VLAN Group Numbers that are greater than 255
  D. VLAN Group Numbers that are greater than 255

• Question 927:

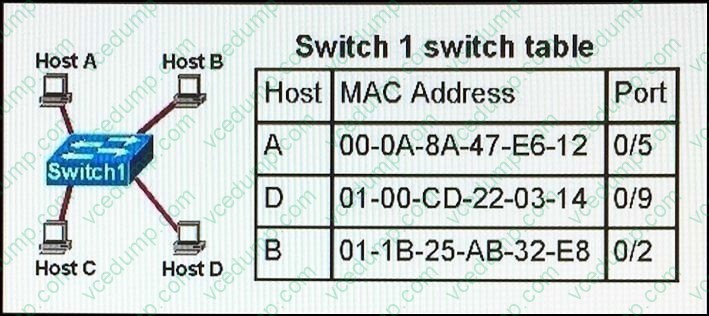

  Refer to the topology and switching table shown in the graphic. Host B sends a frame to Host C. Which option describes what the switch will do with the frame?

  A. send an ICMP Host Unreachable message to Host B
  B. return the frame to Host B
  C. drop the frame
  D. send the frame out all ports except port 0/2
  E. record the destination MAC address in the switching tableand send the frame directly to Host C
  F. send an ARP request for Host C
  D. send the frame out all ports except port 0/2

• Question 928:

  Which two EtherChannel PAgP modes can you configure? (Choose two.)

  A. passive
  B. auto
  C. desirable
  D. on
  E. active
  B. auto
  C. desirable

• Question 929:

  Refer to the exhibit.What is the effect of the configuration?



  A. Traffic from PC A is dropped when it uses the trunk to communicate with PC B
  B. Traffic from PC A is sent untagged when it uses the trunk to communicate with PC B
  C. Traffic from PC B is dropped when it uses the trunk to communicate with PC A
  D. Traffic from PC B is sent untagged when it uses the trunk to communicate with PCA
  C. Traffic from PC B is dropped when it uses the trunk to communicate with PC A

• Question 930:

  Which command can you enter to configure an IPV6 floating static route?

  A. Router(config)# ipv6 route FE80:0202::/32 serail 0/1 201
  B. Router(config)# ipv6 route::/0 serail0/1
  C. Router(config)# ipv6 route static resolve default
  D. Router(config)# ipv6 route FE80:0202::/32 serail 0/1 1
  A. Router(config)# ipv6 route FE80:0202::/32 serail 0/1 201
