Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 541:

  How many bits represent the network ID in iPv6?

  A. 32
  B. 48
  C. 64
  D. 128
  C. 64

• Question 542:

  Which value must the device send as its username when using CHAP to authenticate with the remote peer site id:17604704 over a PPP link?

  A. The automatically generated user name
  B. The local host name
  C. The user name defined by the administrator
  D. The host name of the remote device.
  B. The local host name

• Question 543:

  Why will a switch never learn a broadcast address?

  A. Broadcasts only use network layer addressing.
  B. A broadcast frame is never forwarded by a switch.
  C. A broadcast address will never be the source address of a frame.
  D. Broadcast addresses use an incorrect format for the switching table.
  E. Broadcast frames are never sent to switches.
  C. A broadcast address will never be the source address of a frame.

  ---

  Switches dynamically learn MAC addresses based on the source MAC addresses that it sees, and since a broadcast is never the source, it will never learn the broadcast address.

• Question 544:

  Which of the port is not part of STP protocol.?

  A. Listening
  B. Learning
  C. Forwarding
  D. Discarding
  D. Discarding

• Question 545:

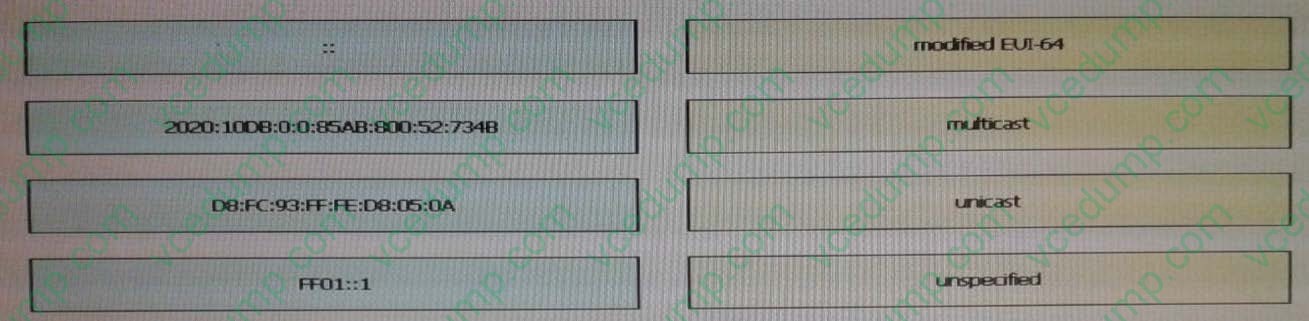

  Drag and drop the IPv6 IP addresses from the left onto the correct IPv6 address types on the right.

  Select and Place:





• Question 546:

  Which two task does a router perform when it receives a packet that is being forwarded from one network to another? (Choose two)

  A. It encapsulates the layer 2 packet
  B. It examines the MAC address table for the forwarding interface
  C. It removes the layer 2 frame header and trailer
  D. It examines the routing table for the best path to the destination IP address of the packet
  E. It removes the layer3 frame header and trailer
  C. It removes the layer 2 frame header and trailer
  D. It examines the routing table for the best path to the destination IP address of the packet

• Question 547:

  Which type of device can be replaced by the use of sub interfaces for VLAN routing?

  A. Layer 2 bridge
  B. Layer 2 switch
  C. Layer 3 switch
  D. router
  C. Layer 3 switch

• Question 548:

  What will happen if a private IP address is assigned to a public interface connected to an ISP?

  A. Addresses in a private range will not be routed on the Internet backbone.
  B. Only the ISP router will have the capability to access the public network.
  C. The NAT process will be used to translate this address to a valid IP address.
  D. A conflict of IP addresses happens, because other public routers can use the same range.
  A. Addresses in a private range will not be routed on the Internet backbone.

  ---

  Private RFC 1918 IP addresses are meant to be used by organizations locally within their own network only, and cannot be used globally for Internet use.

• Question 549:

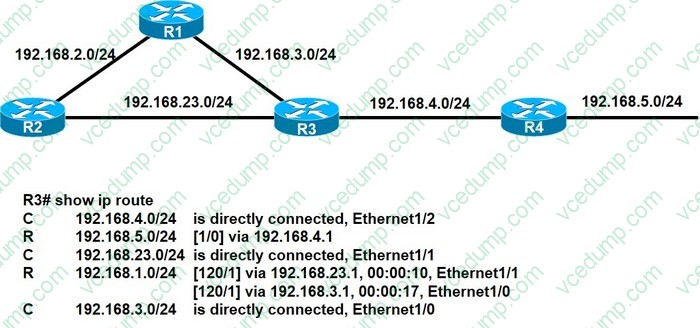

  Refer to the exhibit.If all routers on this network run RIPv2,which two configurations can you apply to router R3 to produce this routing table?(choose two)



  A. router rip version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 passive-interface default
  B. router rip version 2 network 192.168.3.0 network 192.168.23.0 passive-interface default
  C. router rip version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0
  D. router rip version 2 network 192.168.3.0 network 192.168.4.0
  A. router rip version 2 network 192.168.3.0 network 192.168.4.0 network 192.168.23.0 passive-interface default
  B. router rip version 2 network 192.168.3.0 network 192.168.23.0 passive-interface default

• Question 550:

  Which information is used to install the best route to a destination in IP routing table?

  A. the tunnel ID
  B. the prefix length
  C. the interface number
  D. the autonomous system
  B. the prefix length
