Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 461:

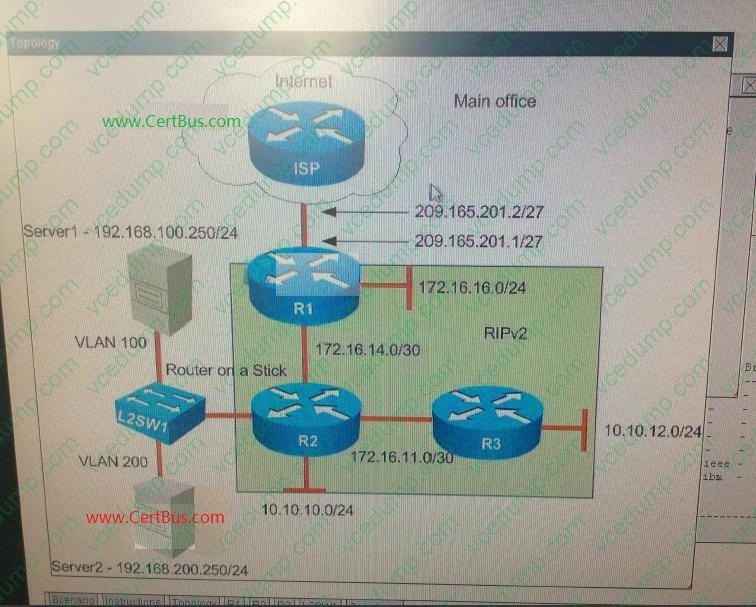

  --Router R1 connects the main office to internet, and routers R2 and R3 are internal routers --NAT is enabled on Router R1 --The routing protocol that is enabled between Rl, R2 and R3 is RIPv2 --R1 sends default route into RIPv2 for internal routers to forward internet traffic to R1 --Serverl and Server 2 are placed in VLAN 100 and 200 respectively, and are still running on stick Configuration with router R2. You have console access on Rl, R2, R3 and L2SW1 devices. Use only show commands to troubleshoot the issues.



  What is the correct statement below after examining the R1 routing table?

  A. Traffic that is destined to 10.10.10.0/24 from R1 LAN network uses static route instead RIPv2 Because the static route AD that is configured is less than the AD of RIPv2
  B. Traffic that is destined to 10.10.10.0/24 from R1 LAN network uses RIPv2 instead static route Because the static route AD that is configured is higher than the AD of RIPv2
  C. Traffic that is destined to 10.10.10.0/24 from R1 LAN network uses static route instead RIPv2 But the traffic is forwarded to the ISP instead of the internal network.
  D. Traffic that is destined to 10.10.10.0/24 from R1 LAN network uses RIPv2 instead static route Because the static route AD that is configured is 255
  B. Traffic that is destined to 10.10.10.0/24 from R1 LAN network uses RIPv2 instead static route Because the static route AD that is configured is higher than the AD of RIPv2

• Question 462:

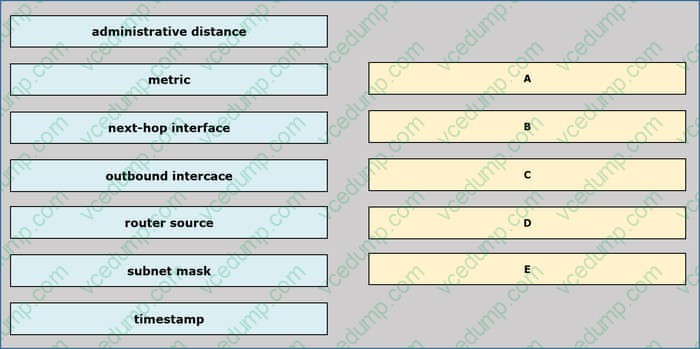

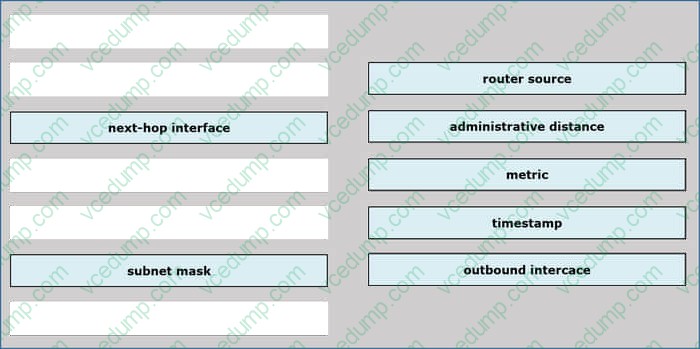

  Drag and Drop

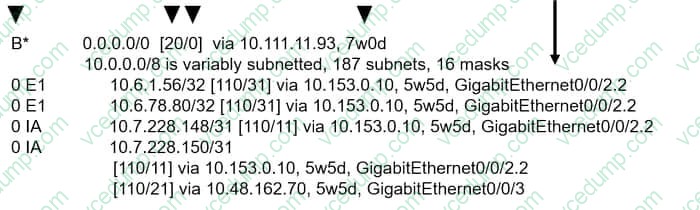

  Refer to the exhibit.



  Drag and drop the routing table components on the left onto the corresponding letter from the exhibit on the right.not all options are used.

  Select and Place:





• Question 463:

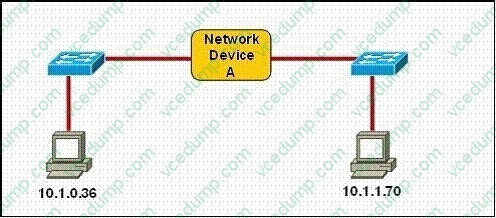

  Refer to the exhibit.



  Which three statements correctly describe Network Device A? (Choose three.)

  A. With a network wide mask of 255.255.255.128, each interface does not require an IP address.
  B. With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP subnet.
  C. With a network wide mask of 255.255.255.0, must be a Layer 2 device for the PCs to communicate with each other.
  D. With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.
  E. With a network wide mask of 255.255.254.0, each interface does not require an IP address.
  B. With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP subnet.
  D. With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.
  E. With a network wide mask of 255.255.254.0, each interface does not require an IP address.

  ---

  If Subnet Mask is 255.255.255.128 the hosts vary from x.x.x.0 - x.x.x.127 and x.x.x.128- x.x.x.255, so the IP Addresses of 2 hosts fall in different subnets so each interface needs an IP an address so that they can communicate each other.

  If Subnet Mask is 255.255.255.0 the 2 specified hosts fall in different subnets so they need a Layer 3 device to communicate.

  If Subnet Mask is 255.255.254.0 the 2 specified hosts are in same subnet so are in network address and can be accommodated in same Layer 2 domain and can communicate with each other directly using the Layer 2 address.

• Question 464:

  Which two Layer 2 WAN transports are most appropriate to extend Ethernet over a WAN? (Choose two)

  A. 802.1Q VLAN tagging
  B. DMVPN
  C. 4GLTE with VPN
  D. Point-to-multipoint service
  E. Point-to-point service
  D. Point-to-multipoint service
  E. Point-to-point service

• Question 465:

  Which two conditions can StackWise use to determine the master of the stack? (Choose two )

  A. the lowest member priority
  B. the lowest system MAC address
  C. the greatest number of configured VLANs
  D. the highest system MAC address
  E. the highest member priority
  B. the lowest system MAC address
  E. the highest member priority

• Question 466:

  Which feature facilitates the tagging of frames on a specific VLAN?

  A. routing
  B. hairpinning
  C. switching
  D. encapsulation
  D. encapsulation

• Question 467:

  Which three features are represented by the letter A in AAA authentication? (Choose three.)

  A. authorization
  B. accountability
  C. authority
  D. authentication
  E. accounting
  F. accessibility
  A. authorization
  D. authentication
  E. accounting

• Question 468:

  Which two characteristics of a link-state routing protocol are true? (Choose two)

  A. Each router in the network maintains a separate routing database of its own neighbors.
  B. Each router uses LSAs to exchange the information about the network topology.
  C. Each router uses Dijkstra's algorithm to determine the shortest path.
  D. Each router establishes an adjacency to every other router in the network
  E. Each router uses the same path to each network in the topology.
  B. Each router uses LSAs to exchange the information about the network topology.
  C. Each router uses Dijkstra's algorithm to determine the shortest path.

• Question 469:

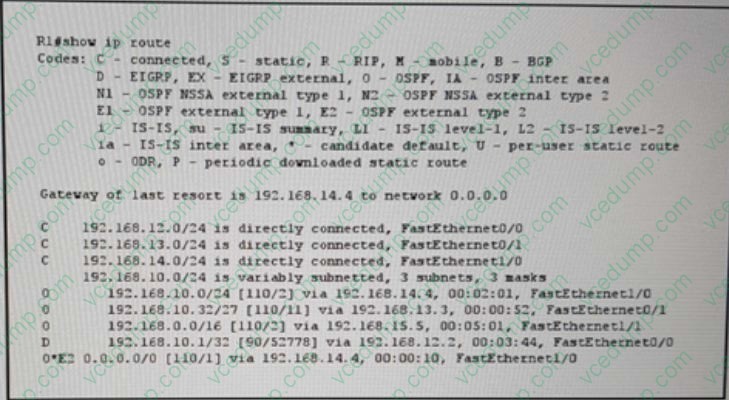

  Refer to the exhibit.



  What is the metric for the route from R1 to 192.168.10.1?

  A. 2
  B. 90
  C. 110
  D. 52778
  D. 52778

• Question 470:

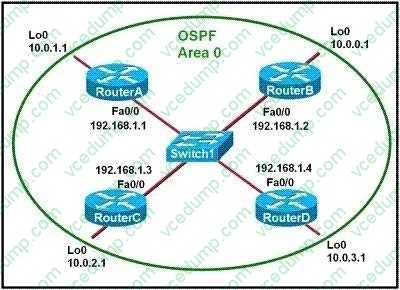

  Refer to the exhibit. Which two statements are true about the loopback address that is configured on RouterB? (Choose two.)



  A. It ensures that data will be forwarded by RouterB.
  B. It provides stability for the OSPF process on RouterB.
  C. It specifies that the router ID for RouterB should be 10.0.0.1.
  D. It decreases the metric for routes that are advertised from RouterB.
  E. It indicates that RouterB should be elected the DR for the LAN.
  B. It provides stability for the OSPF process on RouterB.
  C. It specifies that the router ID for RouterB should be 10.0.0.1.

  ---

  Explanation:

  A loopback interface never comes down even if the link is broken so it provides stability for the OSPF process (for example we use that loopback interface as the router-id) - The router-ID is chosen in the order below:

  + The highest IP address assigned to a loopback (logical) interface.+ If a loopback interface is not defined, the highest IP address of all active router's physical interfaces will be chosen. -> The loopback interface will be chosen as the router ID of RouterB ?
