Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 381:

  What are the alert messages generated by SNMP agents called?

  A. INFORM
  B. GET
  C. SET
  A. INFORM
  B. GET

  ---

  A TRAP is a SNMP message sent from one application to another (which is typically on a remote host). Their purpose is merely to notify the other application that something has happened, has been noticed, etc. The big problem with TRAPs is that they're unacknowledged so you don't actually know if the remote application received your oh-so- important message to it. SNMPv2 PDUs fixed this by introducing the notion of an INFORM, which is nothing more than an acknowledged TRAP.

• Question 382:

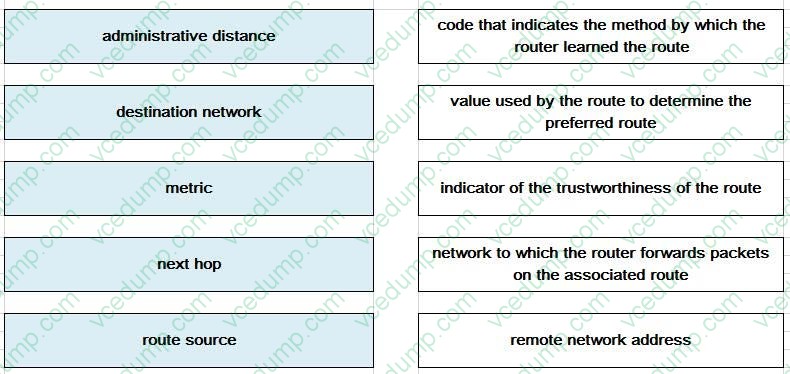

  Drag and drop the values in a routing table from the left onto the correct meanings on the right.

  Select and Place:





• Question 383:

  According to security best practices,which two actions must you take to protect an unused switch port?(choose two)

  A. Enable CDP
  B. Configure the port as an access port on a VLAN other than VLAN 1
  C. Configure the port to automatically come online
  D. Administratively shut down the port
  E. Configure the port as a trunk port
  B. Configure the port as an access port on a VLAN other than VLAN 1
  D. Administratively shut down the port

• Question 384:

  Which option is a valid IPv6 address?

  A. 2001:0000:130F::099a::12a
  B. 2002:7654:A1AD:61:81AF:CCC1
  C. FEC0:ABCD:WXYZ:0067::2A4
  D. 2004:1:25A4:886F::1
  D. 2004:1:25A4:886F::1

  ---

  An IPv6 address is represented as eight groups of four hexadecimal digits, each group representing 16 bits (two octets). The groups are separated by colons (:). An example of an IPv6 address is 2001:0db8:85a3:0000:0000:8a2e:0370:7334. The leading 0's in a group can be collapsed using ::, but this can only be done once in an IP address.

• Question 385:

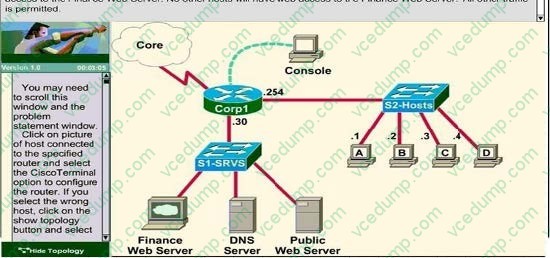

  A network associate is adding security to the configuration of the Corp1 router. The user on host C should be able to use a web browser to access financial information from the Finance Web Server. No other hosts from the LAN nor the Core should be able to use a web browser to access this server. Since there are multiple resources for the corporation at this location including other resources on the Finance Web Server, all other traffic should be allowed.

  The task is to create and apply an access-list with no more than three statements that will allow ONLY host C web access to the Finance Web Server. No other hosts will have web access to the Finance Web Server. All other traffic is permitted.



  Access to the router CLI can be gained by clicking on the appropriate host.

  All passwords have been temporarily set to "cisco".

  The Core connection uses an IP address of 198.18.247.65

  The computers in the Hosts LAN have been assigned addresses of 192.168.240.1 - 192.168.240.254

  1.

  host A 192.168.240.1

  2.

  host B 192.168.240.2

  3.

  host C 192.168.240.3

  Correct Answer. Check the answer below
  Check the answer below

  ---

  Corp1#conf t Corp1(config)# access-list 128 permit tcp host 192.168.240.1 host 172.22.141.26 eq www Corp1(config)# access-list 128 deny tcp any host 172.22.141.26 eq www Corp1(config)# access-list 128 permit ip any any Corp1(config)#int fa0/1 Corp1(config-if)#ip access-group 128 out Corp1(config-if)#end Corp1#copy run startup-config

• Question 386:

  You have configured the host computers on a campus LAN to receive their DHCP addresses from the local router to be able to browse their corporate site. Which statement about the network environment is true?

  A. It supports a DNS server for use by DHCP clients.
  B. Two host computers may be assigned the same IP address.
  C. The DNS server mustbe configured manually on each host.
  D. The domain name must be configured locally on each host computer.
  A. It supports a DNS server for use by DHCP clients.

• Question 387:

  Which two descriptions of distance-vector routing protocols are true? (Choose two)

  A. Each router is aware of only its neighbor routers.
  B. Each router determines its own path to a destination.
  C. Each router views the network as if it were the root of its own topology.
  D. The hop count metric is used to determine the best path to a destination.
  E. Each router in the network shares a database of known routes.
  D. The hop count metric is used to determine the best path to a destination.
  E. Each router in the network shares a database of known routes.

• Question 388:

  Refer to the exhibit.



  Which two statements about the route 172.61.3.16/28 are true? (Choose two)

  A. It has a metric of 1
  B. It is less preferred than dynamically learned routes
  C. It is preferred over dynamically learned routes
  D. It was learned from a remote router
  E. It has a default administrative distance of 1
  C. It is preferred over dynamically learned routes
  E. It has a default administrative distance of 1

• Question 389:

  What OSPF command, when configured, will include all interfaces into area 0?

  A. network 0.0.0.0 255.255.255.255 area 0
  B. network 0.0.0.0 0.0.0.0 area 0
  C. network 255.255.255.255 0.0.0.0 area 0
  D. network all-interfaces area 0
  A. network 0.0.0.0 255.255.255.255 area 0

  ---

  Example 3-1 displays OSPF with a process ID of 1 and places all interfaces configured with an IP address in area 0. The network command network 0.0.0.0 255.255.255.255 area 0 dictates that you do not care (255.255.255.255) what the IP address is, but if an IP address is enabled on any interface, place it in area 0. Example 3-1 Configuring OSPF in a Single Area router ospf 1

  network 0.0.0.0 255.255.255.255 area 0

  Reference: http://www.ciscopress.com/articles/article.asp?p=26919andseqNum=3

• Question 390:

  When is the most appropriate time to escalate an issue that you are troubleshooting?

  A. when you lack proper resources to resolve the issue
  B. when you have gathered all available information about the issue
  C. when you have been unable to resolve the issue after 30 minutes
  D. when a more urgent issue that requires your intervention is detected
  B. when you have gathered all available information about the issue
