Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 271:

  Which command is configured on a switch to enable neighbor discovery in a multivendor environment?

  A. cdp run
  B. lldp receive
  C. lldp transmit
  D. lldp run
  D. lldp run

• Question 272:

  What parameter can be different on ports within an EtherChannel?

  A. speed
  B. DTP negotiation settings
  C. trunk encapsulation
  D. duplex
  B. DTP negotiation settings

  ---

  For an etherchannel to come up, the speed, duplex and the trunk encapsulation must be the same on each end.

• Question 273:

  Scenario:

  Refer to the topology. Your company has decided to connect the main office with three other remote branch offices using point-to-point serial links.

  You are required to troubleshoot and resolve OSPF neighbor adjacency issues between the main office and the routers located in the remote branch offices.



  R1 does not form an OSPF neighbor adjacency with R2. Which option would fix the issue?

  A. R1 ethernet0/1 is shutdown. Configure no shutdown command.
  B. R1 ethernet0/1 configured with a non-default OSPF hello interval of 25; configure no ip ospf hello-interval 25.
  C. R2 ethernet0/1 and R3 ethernet0/0 are configured with a non-default OSPF hello interval of 25; configure no ip ospf hello-interval 25.
  D. Enable OSPF for R1 ethernet0/1; configure ip ospf 1 area 0 command under ethernet0/1.
  B. R1 ethernet0/1 configured with a non-default OSPF hello interval of 25; configure no ip ospf hello-interval 25.

  ---

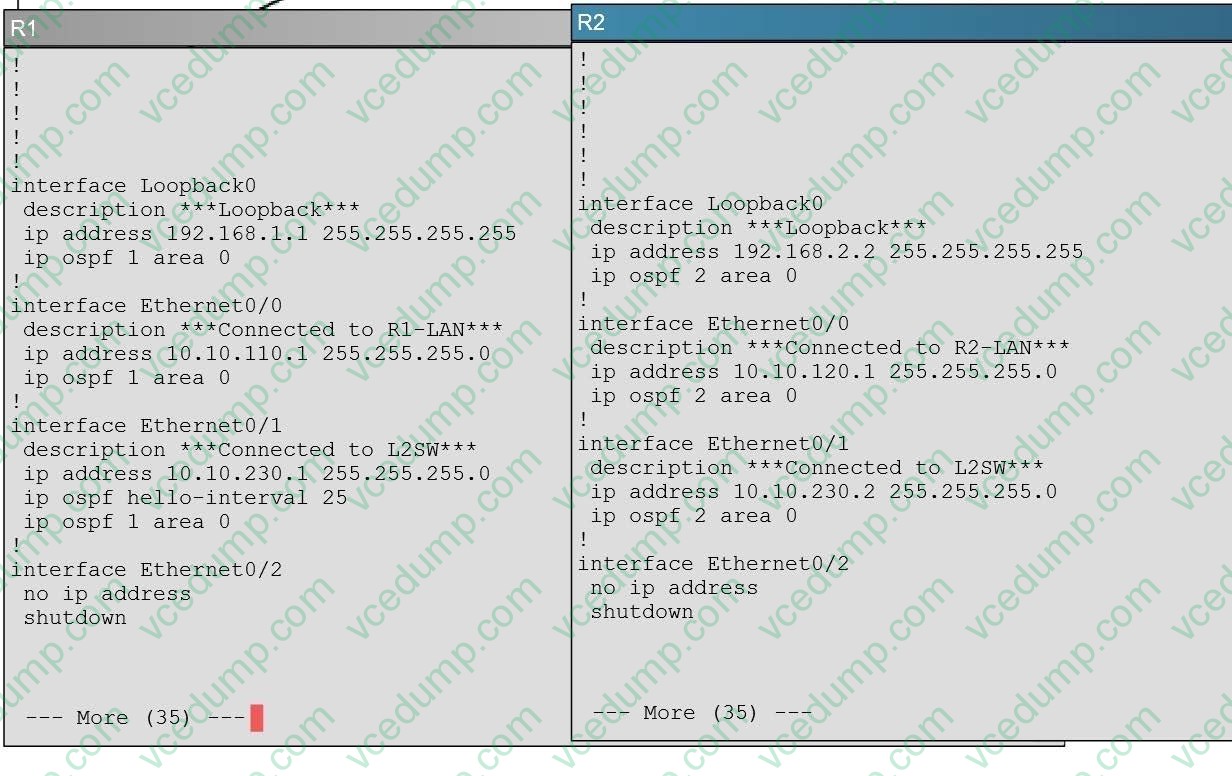

  Looking at the configuration of R1, we see that R1 is configured with a hello interval of 25 on interface Ethernet 0/1 while R2 is left with the default of 10 (not configured).



• Question 274:

  Which component of the routing table ranks routing protocols according to their preferences?

  A. administrative distance
  B. next hop
  C. metric
  D. routing protocol code
  A. administrative distance

  ---

  Administrative distance - This is the measure of trustworthiness of the source of the route. If a router learns about a destination from more than one routing protocol, administrative distance is compared and the preference is given to the routes with lower administrative distance. In other words, it is the believability of the source of the route.

• Question 275:

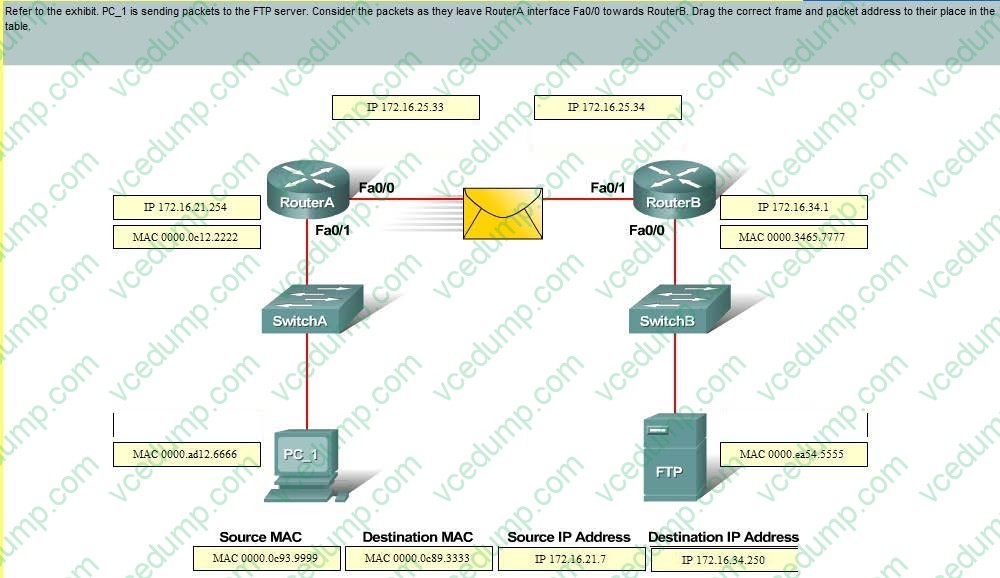

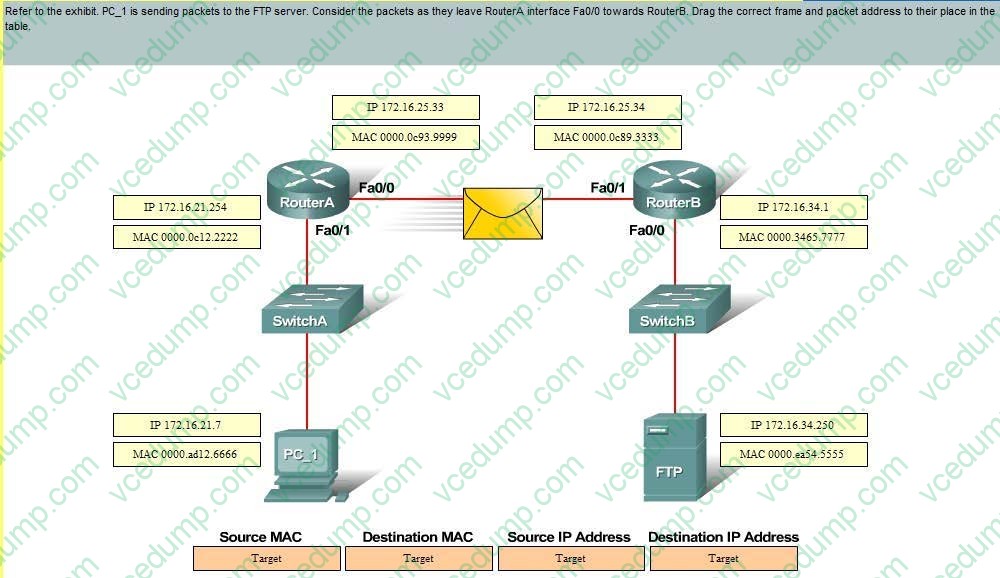

  Refer to the exhibit. PC_1 is sending packets to the FTP server. Consider the packets as they leave RouterA interface Fa0/0 towards RouterB. Drag the correct frame and packet address to their place in the table.

  Select and Place:





• Question 276:

  Which command should you enter to configure an LLDP delay time of 5 seconds?

  A. lldp reinit 5000
  B. lldp reinit 5
  C. lldp holdtime 5
  D. lldp timer 5000
  B. lldp reinit 5

• Question 277:

  Which chassis-aggregation technology combines two physical switches into one virtual switch?

  A. LACP
  B. VRRP
  C. VSS
  D. StackWise
  C. VSS

• Question 278:

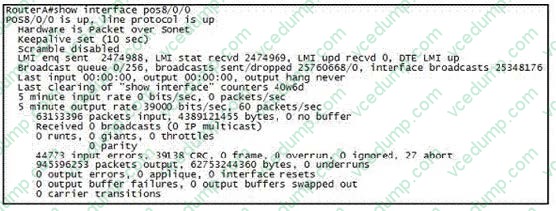

  Refer to the exhibit.



  Which WAN protocol is being used?

  A. ATM
  B. HDLC
  C. Frame Relay
  D. PPP
  C. Frame Relay

  ---

  This question is to examine the show int command. According to the information provided in the exhibit, we can know that the data link protocol used in this network is the Frame Relay protocol. "LMI enq sent..."

• Question 279:

  Which value is included in the initial TCP syn message?

  A. a session ID
  B. sequence number
  C. a TTL number
  D. an acknowledgment number
  B. sequence number

• Question 280:

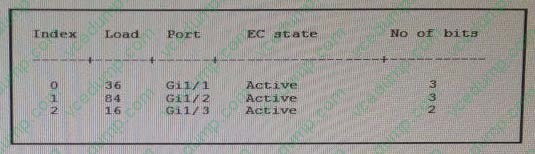

  Refer to the exhibit.



  While troubleshooting a switch, you executed the show interface port-channel 1 etherchannel command and it returned this output. Which information is provided by the Load value?

  A. the percentage of use of the link
  B. the preference of the link
  C. the session count of the link
  D. the number source-destination pairs on the link
  D. the number source-destination pairs on the link
