Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 291:

  DRAG DROP

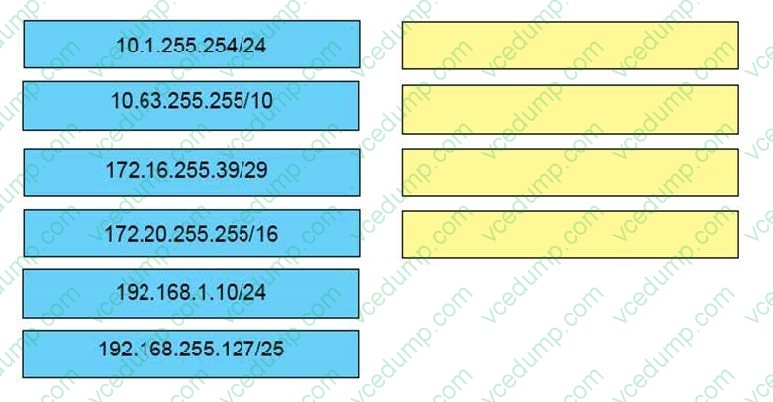

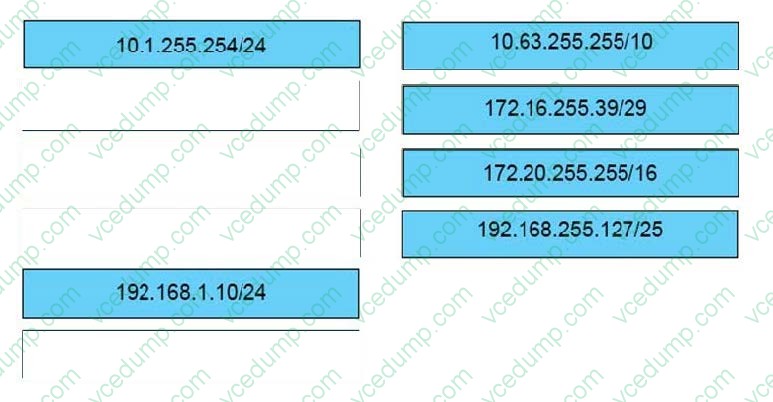

  Drag and drop each broadcast IP address on the left to the Broadcast Address column on the right. Not all options are used.

  Select and Place:





• Question 292:

  Which two statements about how a router makes forwarding decisions are true? (Choose two.)

  A. The data plane forwards traffic through the router.
  B. The management plane gathers information from routing protocols.
  C. The control plane traffic based on information that it receives from the data plane.
  D. The control plane gathers information from routing protocols.
  E. The management plane traffic based on information that it receives from the data plane.
  F. The data plane gathers information from routing protocols.
  A. The data plane forwards traffic through the router.
  D. The control plane gathers information from routing protocols.

• Question 293:

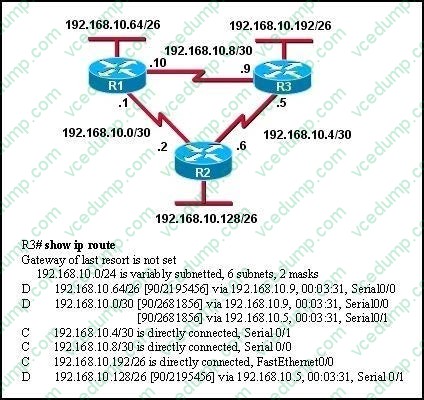

  Refer to the exhibit.



  Based on the exhibited routing table, how will packets from a host within the 192.168.10.192/26 LAN be forwarded to 192.168.10.1?

  A. The router will forward packets from R3 to R2 to R1.
  B. The router will forward packets from R3 to R1 to R2.
  C. The router will forward packets from R3 to R2 to R1 AND from R3 to R1.
  D. The router will forward packets from R3 to R1.
  C. The router will forward packets from R3 to R2 to R1 AND from R3 to R1.

  ---

  From the routing table we learn that network 192.168.10.0/30 is learned via 2 equal-cost paths (192.168.10.9 and192.168.10.5) -> traffic to this network will be load-balancing.

• Question 294:

  It has become necessary to configure an existing serial interface to accept a second Frame Relay virtual circuit. Which of the following procedures are required to accomplish this task? (Choose three.)

  A. Remove the IP address from the physical interface.
  B. Encapsulate the physical interface with multipoint PPP.
  C. Create the virtual interfaces with the interface command.
  D. Configure each subinterface with its own IP address.
  E. Disable split horizon to prevent routing loops between the subinterface networks.
  F. Configure static Frame Relay map entries for each subinterface network.
  A. Remove the IP address from the physical interface.
  C. Create the virtual interfaces with the interface command.
  D. Configure each subinterface with its own IP address.

  ---

  For multiple PVC's on a single interface, you must use subinterfaces, with each subinterface configured for each PVC. Each subinterface will then have its own IP address, and no IP address will be assigned to the main interface.

• Question 295:

  What are contained in layer 2 ethernet frame? (Choose Three.)

  A. Preamble
  B. TTL
  C. Type/length
  D. Frame check sequence
  E. version
  A. Preamble
  C. Type/length
  D. Frame check sequence

• Question 296:

  Where information about untrusted hosts are stored?

  A. CAM table
  B. Trunk table
  C. MAC table
  D. binding database
  D. binding database

• Question 297:

  What are three characteristics of the TCP protocol? (Choose three.)

  A. It uses a single SYN-ACK message to establish a connection.
  B. The connection is established before data is transmitted.
  C. It ensures that all data is transmitted and received by the remote device.
  D. It supports significantly higher transmission speeds than UDP.
  E. It requires applications to determine when data packets must be retransmitted.
  F. It uses separate SYN and ACK messages to establish a connection.
  B. The connection is established before data is transmitted.
  C. It ensures that all data is transmitted and received by the remote device.
  F. It uses separate SYN and ACK messages to establish a connection.

• Question 298:

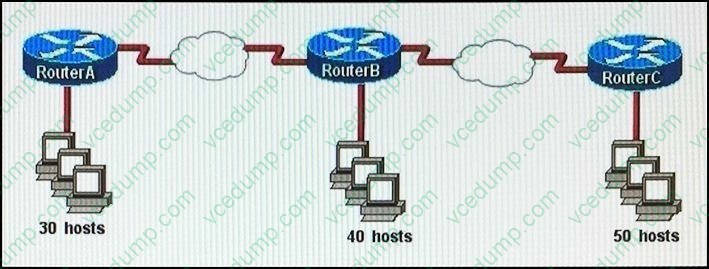

  Refer to the exhibit. The enterprise has decided to use the network address 172.16.0.0. The network administrator needs to design a classful addressing scheme to accommodate the three subnets, with 30, 40, and 50 hosts, as shown. Which subnet mask would accommodate this network?

  A. 255.255.255.224
  B. 255.255.255.240
  C. 255.255.255.252
  D. 255.255.255.248
  E. 255.255.255.192
  E. 255.255.255.192

• Question 299:

  What are three benefits of GLBP? (Choose three.)

  A. GLBP supports up to eight virtual forwarders per GLBP group.
  B. GLBP supports clear text and MD5 password authentication between GLBP group members.
  C. GLBP is an open source standardized protocol that can be used with multiple vendors.
  D. GLBP supports up to 1024 virtual routers.
  E. GLBP can load share traffic across a maximum of four routers.
  F. GLBP elects two AVGs and two standby AVGs for redundancy.
  B. GLBP supports clear text and MD5 password authentication between GLBP group members.
  D. GLBP supports up to 1024 virtual routers.
  E. GLBP can load share traffic across a maximum of four routers.

• Question 300:

  Which password types are encrypted?

  A. SSH
  B. Telnet
  C. enable secret
  D. enable password
  C. enable secret
