Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1161:

  By default, how many MAC addresses are permitted to be learned on a switch port with port security enabled?

  A. 8
  B. 2
  C. 1
  C. 1

• Question 1162:

  A network administrator is troubleshooting the OSPF configuration of routers R1 and R2. The routers cannot establish an adjacency relationship on their common Ethernet link.

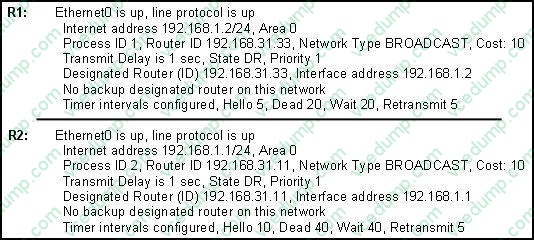

  The graphic shows the output of the show ip ospf interface e0 command for routers R1 and R2. Based on the information in the graphic, what is the cause of this problem?

  A. The OSPF area is not configured properly.
  B. The priority on R1 should be set higher.
  C. The cost on R1 should be set higher.
  D. The hello and dead timers are not configured properly.
  E. A backup designated router needs to be added to the network.
  F. The OSPF process ID numbers must match.
  D. The hello and dead timers are not configured properly.

  ---

  In OSPF, the hello and dead intervals must match and here we can see the hello interval is set to 5 on R1 and 10 on R2. The dead interval is also set to 20 on R1 but it is 40 on R2.

• Question 1163:

  Which two options are primary responsibilities of the APlC-EM controller? (Choose two.)

  A. lt automates network actions between different device types
  B. lt provides robust asset management.
  C. lt tracks license usage and Cisco lOS versions.
  D. lt automates network actions between legacy equipment.
  E. lt makes network functions programmable.
  A. lt automates network actions between different device types
  E. lt makes network functions programmable.

• Question 1164:

  Which option is the default switch port port-security violation mode?

  A. shutdown
  B. protect
  C. shutdown vlan
  D. restrict
  A. shutdown

  ---

  Shutdown--This mode is the default violation mode; when in this mode, the switch will automatically force the switchport into an error disabled (err-disable) state when a violation occurs. While in this state, the switchport forwards no traffic. The switchport can be brought out of this error disabled state by issuing the errdisable recovery cause CLI command or by disabling and reenabling the switchport.

  Shutdown VLAN--This mode mimics the behavior of the shutdown mode but limits the error disabled state the specific violating VLAN.

• Question 1165:

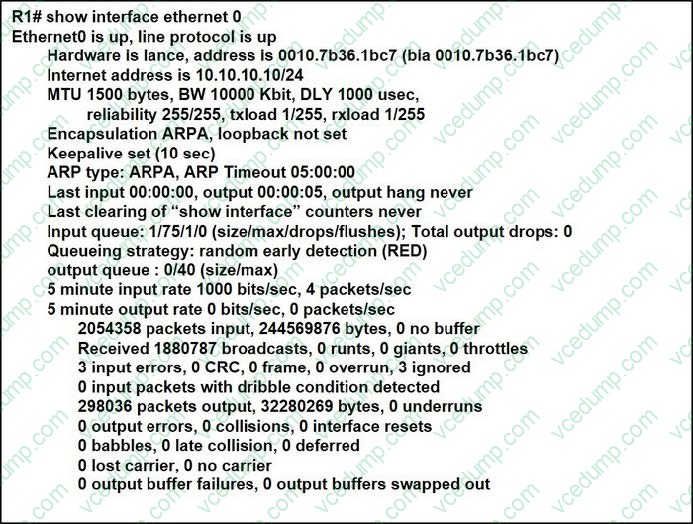

  Refer to the exhibit.If the router attempts to send a frame out of the interface,but the carrier is busy,which counter will increment?

  A. lost carrier
  B. late collision
  C. deferred
  D. collisions
  D. collisions

• Question 1166:

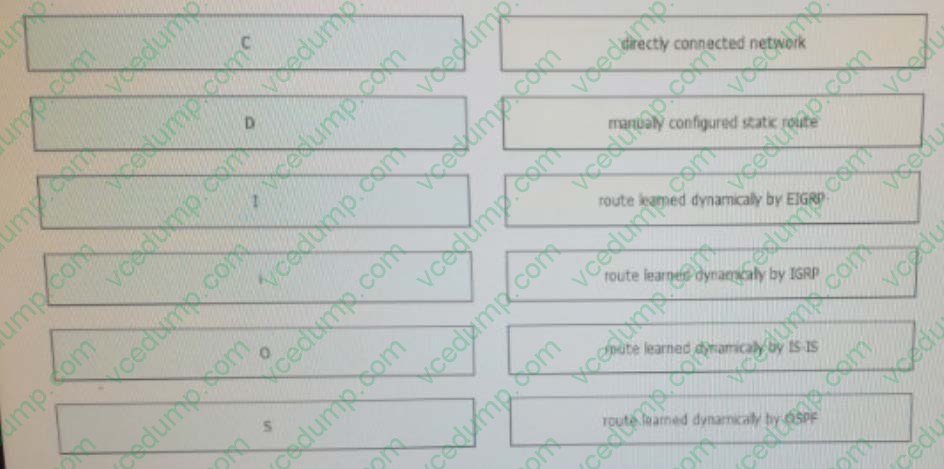

  Drag and Drop the route source codes in a routing table from the left onto the correct meanings on the right.

  Select and Place:





• Question 1167:

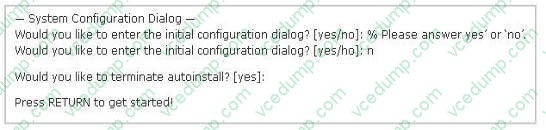

  Refer to the exhibit.



  A network administrator configures a new router and enters the copy startup-config running-config command on the router. The network administrator powers down the router and sets it up at a remote location. When the router starts, it enters the system configuration dialog as shown. What is the cause of the problem?

  A. The network administrator failed to save the configuration.
  B. The configuration register is set to 0x2100.
  C. The boot system flash command is missing from the configuration.
  D. The configuration register is set to 0x2102.
  E. The router is configured with the boot system startup command.
  A. The network administrator failed to save the configuration.

  ---

  The "System Configuration Dialog" appears only when no startup configuration file is found. The network administrator has made a mistake because the command "copy startup-config running-config" will copy the startup config (which is empty) over the running config (which is configured by the administrator). So everything configured was deleted. Note: We can tell the router to ignore the start-up configuration on the next reload by setting the register to 0?142. This will make the "System Configuration Dialog" appear at the next reload.

• Question 1168:

  A switch has 48 ports and 4 VLANs. How many collision and broadcast domains exist on the switch (collision, broadcast)?

  A. 4,48
  B. 48,4
  C. 48,1
  D. 4,1
  E. 1,48
  B. 48,4

• Question 1169:

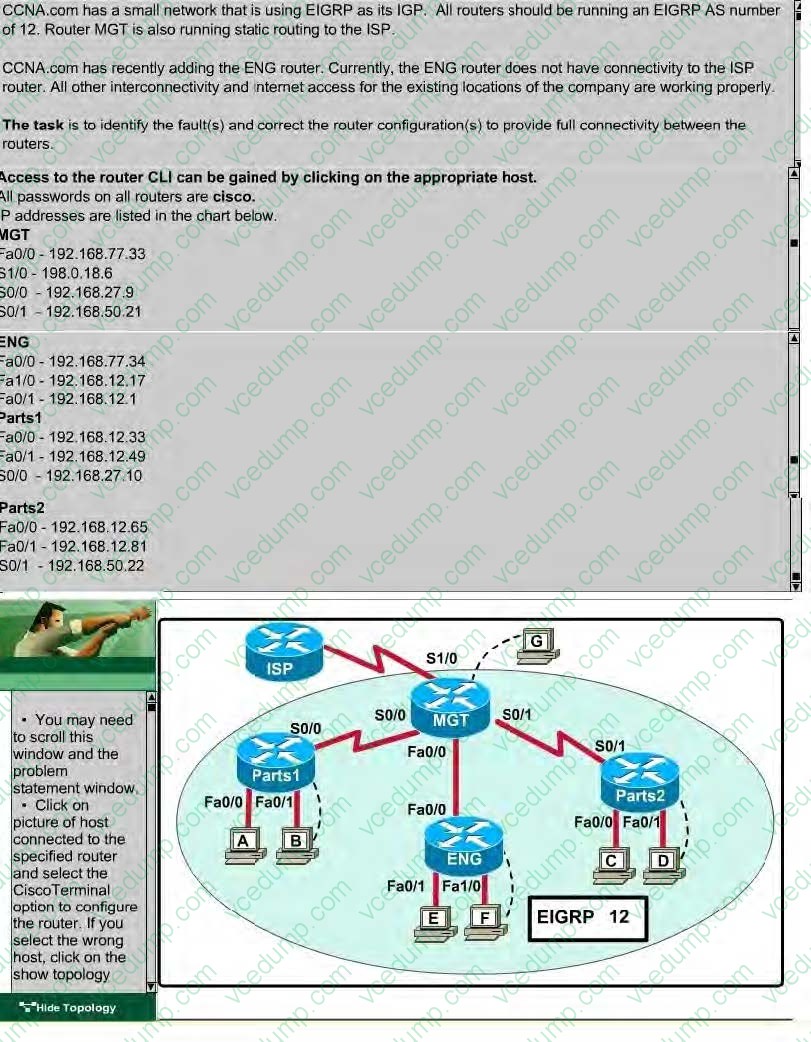

  CCNA.com has a small network that is using EIGRP as its IGP. All routers should be running an EIGRP AS number of 12. Router MGT is also running static routing to the ISP.

  CCNA.com has recently added the ENG router. Currently, the ENG router does not have connectivity to the ISP router. All over interconnectivity and Internet access for the existing locations of the company are working properly.

  The task is to identify the fault(s) and correct the router configuration(s) to provide full connectivity between the routers.

  Access to the router CLI can be gained by clicking on the appropriate host.

  All passwords on all routers are cisco.

  IP addresses are listed in the chart below.

  MGT

  Fa0/0 – 192.168.77.33 S1/0 – 198.0.18.6 S0/0 – 192.168.27.9 S0/1 – 192.168.50.21

  ENG

  Fa0/0 – 192.168.77.34 Fa1/0 – 192.168.12.17 Fa0/1 – 192.168.12.1

  Parts1

  Fa0/0 – 192.168.12.33 Fa0/1 – 192.168.12.49 S0/0 – 192.168.27.10

  Parts2

  Fa0/0 – 192.168.12.65 Fa0/1 – 192.168.12.81 S0/1 – 192.168.50.22



  Correct Answer. Check the answer below
  Check the answer below

  ---

  On the MGT Router: Config t Router eigrp 12 Network 192.168.77.0

• Question 1170:

  Under normal operations, Cisco recommends that you configure switchports on which VLAN?

  A. on any VLAN except the default VLAN
  B. on the management VLAN
  C. on the native VLAN
  D. on the default VLAN
  A. on any VLAN except the default VLAN
