Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1111:

  Which two server types are used to support DNS lookup? (Choose two)

  A. web server
  B. name resolver
  C. authoritative name sever
  D. ESX host
  E. file transfer server
  B. name resolver
  C. authoritative name sever

• Question 1112:

  What is the default encapsulation type for Cisco WAN serial interfaces?

  A. Frame Relay
  B. HDLC
  C. PPP
  D. SDLC
  B. HDLC

• Question 1113:

  Which command can be used from a PC to verify the connectivity between hosts that connect through a switch in the same LAN?

  A. ping address
  B. tracert address
  C. traceroute address
  D. arp address
  A. ping address

  ---

  ICMP pings are used to verify connectivity between two IP hosts. Traceroute is used to verify the router hop path traffic will take but in this case since the hosts are in the same LAN there will be no router hops involved.

• Question 1114:

  A network administrator is configuring ACLs on a Cisco router, to allow traffic from hosts on networks 192.168.146.0, 192.168.147.0, 192.168.148.0, and 192.168.149.0 only. Which two ACL statements, when combined, would you use to accomplish this task? (Choose two.)

  A. access-list 10 permit ip 192.168.146.0 0.0.1.255
  B. access-list 10 permit ip 192.168.147.0 0.0.255.255
  C. access-list 10 permit ip 192.168.148.0 0.0.1.255
  D. access-list 10 permit ip 192.168.149.0 0.0.255.255
  E. access-list 10 permit ip 192.168.146.0 0.0.0.255
  F. access-list 10 permit ip 192.168.146.0 255.255.255.0
  A. access-list 10 permit ip 192.168.146.0 0.0.1.255
  C. access-list 10 permit ip 192.168.148.0 0.0.1.255

  ---

  "access-list 10 permit ip 192.168.146.0 0.0.1.255" would allow only the 192.168.146.0 and 192.168.147.0 networks, and "access-list 10 permit ip 192.168.148.0 0.0.1.255" would allow only the 192.168.148.0 and 192.168.149.0 networks.

• Question 1115:

  Which type of address is the public IP address of a NAT device?

  A. outside global
  B. outside local
  C. inside global
  D. inside local
  E. outside public
  F. inside public
  C. inside global

• Question 1116:

  What to do when the router password was forgotten?

  A. use default password cisco to reset
  B. access router physically
  C. use ssl/vpn
  D. Type confreg 0x2142 at the rommon 1
  D. Type confreg 0x2142 at the rommon 1

• Question 1117:

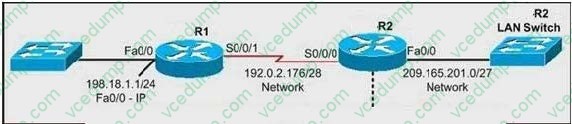

  Central Florida Widgets recently installed a new router in their office. Complete the network installation by performing the initial router configurations and configuring R1PV2 routing using the router command line interface (CLI) on the RC.

  Configure the router per the following requirements:

  Name of the router is R2

  Enable. secret password is cisco

  The password to access user EXEC mode using the console is cisco2

  The password to allow telnet access to the router is cisco3

  IPV4 addresses must be configured as follows:

  Ethernet network 209.165.201.0/27 - router has fourth assignable host address in subnet Serial network is 192.0.2.176/28 - router has last assignable host address in the subnet.

  Interfaces should be enabled.

  Router protocol is RIPV2

  Attention:

  In practical examinations, please note the following, the actual information will prevail.

  1.

  Name or the router is xxx

  2.

  Enable. secret password is xxx

  3.

  Password In access user EXEC mode using the console is xxx

  4.

  The password to allow telnet access to the router is xxx

  5.

  IP information



  Correct Answer. Check the answer below
  Check the answer below

  ---

  Router>enable Router#config terminal Router(config)#hostname R2 R2(config)#enable secret Cisco 1 R2(config)#line console 0 R2(config-line)#password Cisco 2 R2(config-line)#exit R2(config)#line vty 0 4 R2(config-line)#password Cisco 3 R2(config-line)#login R2(config-line)#exit R2(config)#interface faO/0 R2(config-if)#ip address 209.165.201.4 255.255.255.224 R2(config)#interface s0/0/0 R2(config-if)#ip address 192.0.2.190 255.255.255.240 R2(config-if)#no shutdown R2(config-if)#exit R2(config)#router rip R2(config-router)#version 2 R2(config-router)#network 209.165.201.0 R2(config-router)#network 192.0.2.176 R2(config-router)#end R2#copy run start

• Question 1118:

  which three options are benefits of using TACACS+ on a device ?

  A. Device administration packets are encrypted in their entirety
  B. it allows the user to remotely access devices from other vendors
  C. it supports access level authorization for commands
  D. it ensures that user activity is untraceable
  E. it allows users to be authenticated against a remote server
  F. it provides a secure accounting facility on the device
  A. Device administration packets are encrypted in their entirety
  C. it supports access level authorization for commands
  E. it allows users to be authenticated against a remote server

• Question 1119:

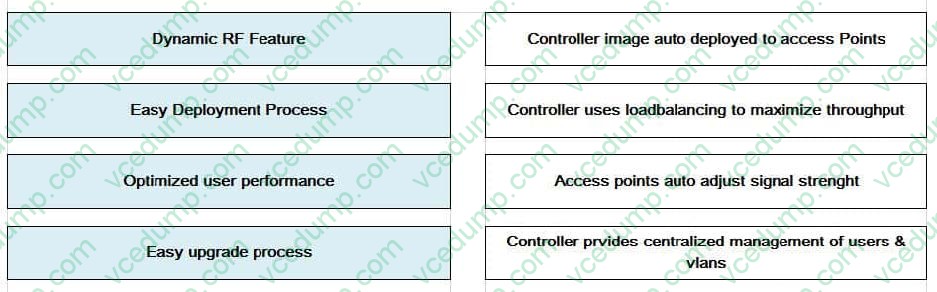

  Drag and Drop

  Select and Place:





• Question 1120:

  What does a Layer 2 switch use to decide where to forward a received frame?

  A. source MAC address
  B. source IP address
  C. source switch port
  D. destination IP address
  E. destination port address
  F. destination MAC address
  F. destination MAC address

  ---

  When a frame is received, the switch looks at the destination hardware address and finds the interface if it is in its MAC address table. If the address is unknown, the frame is broadcast on all interfaces except the one it was received on.
