Cisco 200-125 Online Practice Questions and Exam Preparation

Cisco 200-125 Online Questions & Answers

• Question 1131:

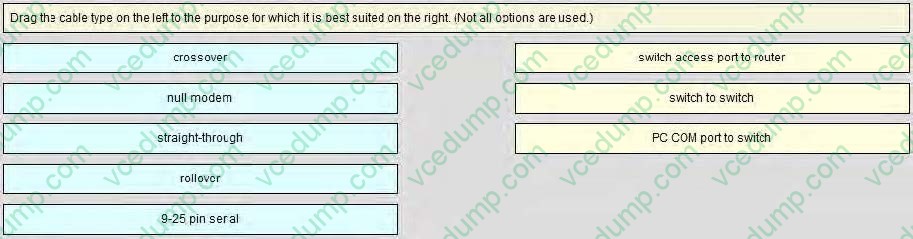

  Drag the cable type on the left to the purpose for which it is best suited on the right. (Not all options are used.)

  Select and Place:





  ---

  To remember which type of cable you should use, follow these tips:

  -To connect two serial interfaces of 2 routers we use serial cable

  – To specify when we use crossover cable or straight-through cable, we should remember: Group 1: Router, Host, Server Group 2: Hub, Switch One device in group 1 + One device in group 2: use straight-through cableTwo devices in the same group: use crossover cable For example: we use straight-through cable to connect switch to router, switch to host, hub to host, hub to server… and we use crossover cable to connect switch to switch, switch to hub, router to router, host to host…)

• Question 1132:

  In which three ways is an IPv6 header simpler than an IPv4 header? (Choose three.)

  A. Unlike IPv4 headers, IPv6 headers have a fixed length.
  B. IPv6 uses an extension header instead of the IPv4 Fragmentation field.
  C. IPv6 headers eliminate the IPv4 Checksum field.
  D. IPv6 headers use the Fragment Offset field in place of the IPv4 Fragmentation field.
  E. IPv6 headers use a smaller Option field size than IPv4 headers.
  F. IPv6 headers use a 4-bit TTL field, and IPv4 headers use an 8-bit TTL field.
  A. Unlike IPv4 headers, IPv6 headers have a fixed length.
  B. IPv6 uses an extension header instead of the IPv4 Fragmentation field.
  C. IPv6 headers eliminate the IPv4 Checksum field.

• Question 1133:

  Which three options are types of Layer 2 network attack? (Choose three.)

  A. ARP attacks
  B. brute force attacks
  C. spoofing attacks
  D. DDOS attacks
  E. VLAN hopping
  F. botnet attacks
  A. ARP attacks
  C. spoofing attacks
  E. VLAN hopping

• Question 1134:

  Which command should you enter to configure a single port to discard inferior BPDUs?

  A. spanning-tree portfast bpdufilter default
  B. spanning-tree guard root
  C. spanning-tree portfast bpduguard
  D. spanning-tree portfast bpdufilter
  C. spanning-tree portfast bpduguard

• Question 1135:

  which feature must you enable to distribute vlans automatically across multiple switch ?

  A. configure NTP
  B. Configure the native VLAN
  C. Define Each vlan
  D. configure VTP
  D. configure VTP

• Question 1136:

  which technology supports multiple dynamic secure connections an unsecure transport network ?

  A. DMVPN
  B. VPN
  C. Site-to-site VPN
  D. client VPN
  A. DMVPN

• Question 1137:

  Under which circumstance is a router on a stick most appropriate?

  A. When the router must route a single across multiple physical links.
  B. When the router must route multiple subnets across multiple physical links.
  C. When the router must route a single across single physical links.
  D. When the router must route multiple subnets across single physical links.
  D. When the router must route multiple subnets across single physical links.

• Question 1138:

  What is the default VLAN on an access port?

  B. 1
  C. 10
  D. 1024
  B. 1

• Question 1139:

  What are three factors a network administrator must consider before implementing Netflow in the network? (Choose three.)

  A. CPU utilization
  B. where Netflow data will be sent
  C. number of devices exporting Netflow data
  D. port availability
  E. SNMP version
  F. WAN encapsulation
  A. CPU utilization
  B. where Netflow data will be sent
  C. number of devices exporting Netflow data

  ---

  NetFlow has a reputation for increasing CPU utilization on your network devices. Cisco's performance testing seems to indicate that newer hardware can accommodate this load pretty well, but you will still want to check it out before you turn on the feature. Some symptoms of high CPU utilization are very large jitter and increased delay. Services running on the device may also be affected. Another thing to keep in mind is the amount of data you're going to be sending across the network. Depending on how much traffic you have and how you configure it, the traffic can be substantial. For example, you may not want to send NetFlow data from a datacenter switch to a NetFlow collector on the other side of a small WAN circuit. Also bear in mind that the flows from aggregating large numbers of devices can add up.

  Reference: http://searchenterprisewan.techtarget.com/tip/How-the-NetFlow-protocol- monitors-your-WAN

• Question 1140:

  Which three statements about IPv6 address fd14:920b:f83d:4079::/64 are true? (Choose three)

  A. The subnet ID is 14920bf83d
  B. The subnet ID is 4079
  C. The global ID is 14920bf83d
  D. The address is a link-local address
  E. The global ID is 4079
  F. The address is a unique local address
  B. The subnet ID is 4079
  C. The global ID is 14920bf83d
  F. The address is a unique local address

  ---

  Explanation: https://www.ripe.net/participate/member-support/lir- basics/ipv6_reference_card.pdf
