• Question 461:

  Which IPv6 address is valid?

  A. 2001:0db8:0000:130F:0000:0000:08GC:140B
  B. 2001:0db8:0:130H::87C:140B
  C. 2031::130F::9C0:876A:130B
  D. 2031:0:130F::9C0:876A:130B
  D. 2031:0:130F::9C0:876A:130B

• Question 462:

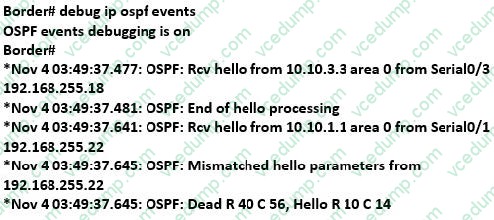

  Refer to the exhibit. What can be concluded from the output of the debug command?



  A. The output represents normal OSPF operation.
  B. The interfaces of two OSPF routers connected to the Border router are in the same subnet.
  C. The OSPF router connected to interface Serial0/1 has NOT formed a neighbor relationship with the Border router.
  D. A router is connected to interface Serial0/3 of the Border router. The OSPF router ID of the connected router is the IP address of the connected interface.
  C. The OSPF router connected to interface Serial0/1 has NOT formed a neighbor relationship with the Border router.

• Question 463:

  The company internetwork is subnetted using 29 bits. Which wildcard mask should be used to configure an extended access list to permit or deny access to an entire subnetwork?

  A. 255.255.255.224
  B. 255.255.255.248
  C. 0.0.0.224
  D. 0.0.0.8
  E. 0.0.0.7
  F. 0.0.0.3
  E. 0.0.0.7

• Question 464:

  Which two EtherChannel PAgP modes can you configure? (Choose two.)

  A. passive
  B. auto
  C. desirable
  D. on
  E. active
  B. auto
  C. desirable

• Question 465:

  Which command can you enter to determine whether a voice VLAN has been configured?

  A. Show interface trunk
  B. Show interface switchport
  C. Show interface brief
  D. Show interface
  B. Show interface switchport

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3560/software/release/12-2_52_se/configuration/guide/3560scg/swvoip.html#wp1034425

• Question 466:

  Which two steps must occur before two routers can become BGP peers? (Choose two.)

  A. The routers must establish a TCP connection to one another
  B. The routers must exchange BGP version information
  C. The routers must receive multicast hello packets from one another
  D. The routers must receive more than one BGP routing update from one another
  E. Each router must reset its BGP timers to their default settings
  A. The routers must establish a TCP connection to one another
  B. The routers must exchange BGP version information

• Question 467:

  Which three statements about HSRP operation are true? (Choose three.)

  A. HSRP supports only clear-text authentication.
  B. The HSRP virtual IP address must be on a different subnet than the routers' interfaces on the same LAN.
  C. The HSRP default timers are 3 second hello interval and a 10 second dead interval.
  D. The HSRP virtual IP address must be the same as one of the router's interface addresses on the LAN.
  E. The virtual IP address and virtual MAC address are active on the HSRP Master router.
  F. HSRP supports up to 255 groups per interface, enabling an administrative form of load balancing.
  C. The HSRP default timers are 3 second hello interval and a 10 second dead interval.
  E. The virtual IP address and virtual MAC address are active on the HSRP Master router.
  F. HSRP supports up to 255 groups per interface, enabling an administrative form of load balancing.

  ---

  The virtual MAC address of HSRP version 1 is 0000.0C07.ACxx, where xx is the HSRP group number in hexadecimal based on the respective interface. For example, HSRP group 10 uses the HSRP virtual MAC address of 0000.0C07.AC0A.

  HSRP version 2 uses a virtual MAC address of 0000.0C9F.FXXX (XXX:HSRP group in hexadecimal)

  All routers in a HSRP group send hello packets. By default, the hello timer is set to 3 seconds and the dead interval is 10 seconds. The range for HSRP version 1 is from 0 to 255. The range is for HSRP version 2 is from 0 to 4095. The default

  value is 0. For this question, it is assumed that Cisco is referring to HSRP version 1 as the other options are not correct.

• Question 468:

  Which statement about using the keepalive command on a tunnel interface is true?

  A. It can be configured on either side of the tunnel or on both sides.
  B. It can be configured only on the downstream side of the tunnel.
  C. If it is configured on both sides of the tunnel, the values must match.
  D. It can be configured only on the upstream side of the tunnel.
  A. It can be configured on either side of the tunnel or on both sides.

  ---

  Reference: https://www.cisco.com/c/en/us/support/docs/ip/generic-routing-encapsulation-gre/118370-technote-gre-00.html

• Question 469:

  Which three statements about inform-request options are true? (Choose three.)

  A. The default number of retries is 3.
  B. By default, the maximum number of pending informs is 10.
  C. The default timeout is 60 seconds.
  D. The default number of retries is 5.
  E. The default timeout is 30 seconds.
  F. By default, the maximum number of pending informs is 25.
  A. The default number of retries is 3.
  E. The default timeout is 30 seconds.
  F. By default, the maximum number of pending informs is 25.

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/snmp/command/nm-snmp-cr-book/nm-snmp-cr-s5.html

• Question 470:

  Which process is associated with spanning-tree convergence?

  A. determining the path cost
  B. electing designated ports
  C. learning the sender bridge ID
  D. assigning the port ID
  B. electing designated ports

  ---

  The three steps of STP convergence is:

  1.

  Root Bridge election

  2.

  Root port election

  3.

  Designated port election.
