• Question 311:

  Which two statements about VTP are true? (Choose two.)

  A. All switches must be configured with the same VTP domain name
  B. All switches must be configured to perform trunk negotiation.
  C. All switches must be configured with a unique VTP domain name
  D. The VTP server must have the highest revision number in the domain
  E. All switches must use the same VTP version.
  A. All switches must be configured with the same VTP domain name
  D. The VTP server must have the highest revision number in the domain

• Question 312:

  What command visualizes the general NetFlow data on the command line?

  A. show ip flow export
  B. show ip flow top-talkers
  C. show ip cache flow
  D. show mls sampling
  E. show mls netflow ip
  C. show ip cache flow

  ---

  The following is an example of how to visualize the NetFlow data using the CLI. There are three methods to visualize the data depending on the version of Cisco IOS Software. The traditional show command for NetFlow is "show ip cache flow" also available are two forms of top talker commands. One of the top talkers' commands uses a static configuration to view top talkers in the network and another command called dynamic top talkers allows real-time sorting and aggregation of NetFlow data. Also shown is a show MLS command to view the hardware cache on the Cisco Catalyst 6500 Series Switch. The following is the original NetFlow show command used for many years in Cisco IOS Software. Information provided includes packet size distribution; basic statistics about number of flows and export timer setting, a view of the protocol distribution statistics and the NetFlow cache. R3#show ip cache flow IP packet size distribution (469 total packets):1-32 64 96 128 160 192 224 256 288 320 352 384 416 448 480 .000 .968 .000 .031 .000 .000 .000 .000 .000 .000 .000 .000 .000 .000 .000 512 544 576 1024 1536 2048 2560 3072 3584 4096 4608.000 .000 .000 .000 .000 .000 .000 .000 .000 .000 .000 IP Flow Switching Cache, 278544 bytes 7 active, 4089 inactive, 261 added 1278 ager polls, 0 flow alloc failures Active flows timeout in 30 minutes. Inactive flows timeout in 15 seconds IP Sub Flow Cache, 25736 bytes 1 active, 1023 inactive, 38 added, 38 added to flow 0 alloc failures, 0 force free 1 chunk, 1 chunk added last clearing of statistics never Protocol Total Flows Packets Bytes Packets Active(Sec) Idle(Sec) --------Flows /Sec /Flow /Pkt /Sec/ Flow /Flow TCP-WWW 71 0.0 1 40 0.1 1.3 1.2 TCP-BGP 35 0.0 1 40 0.0 1.3 1.2 TCP-other 108 0.1 1 40 0.1 1.3 1.2 UDP-other 37 0.0 1 52 0.0 0.0 15.4 ICMP 3 0.0 5 100 0.0 0.0 15.3 Total: 254 0.2 1 42 0.4 1.1 3.5 (NetFlow cache below) SrcIf SrcIPaddress DstIf DstIPaddress Pr SrcP DstP Pkts Et1/0 172.16.7.2 Null 224.0.0.9 11 0208 0208 1 Et1/0 172.16.10.2 Et0/0 172.16.1.84 06 0087 0087 1 Et1/0 172.16.10.2 Et0/0 172.16.1.84 06 0050 0050 1 Et1/0 172.16.10.2 Et0/0 172.16.1.85 06 0089 0089 1 Et1/0 172.16.10.2 Et0/0 172.16.1.85 06 0050 0050 1 Et1/0 172.16.10.2 Et0/0 172.16.1.86 06 00B3 00B3 1 Et1/0 172.16.10.2 Et0/0 172.16.1.86 06 0185 0185 2

  Reference: http://www.cisco.com/c/en/us/products/collateral/ios-nx-os-software/ios-netflow/prod_white_paper0900aecd80406232.html

• Question 313:

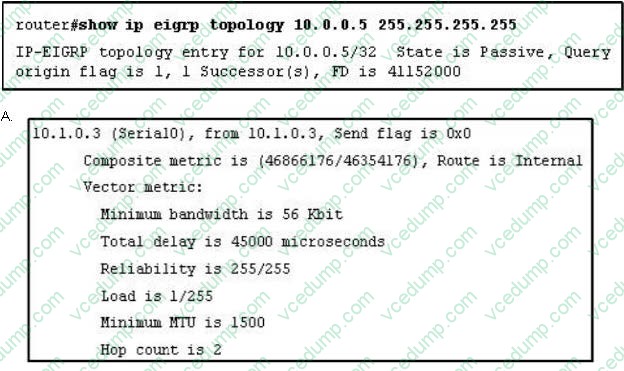

  Refer to the exhibit.

  Given the output from the show ip eigrp topology command, which router is the feasible successor?



  B. C. D.
  B. C. D.

  ---

  To be the feasible successor, the Advertised Distance (AD) of that route must be less than the Feasible Distance (FD) of the successor. From the output of the "show ip eigrp topology 10.0.0.5 255.255.255.255 we learn that the FD of the

  successor is 41152000.

  Now we will mention about the answers, in the "Composite metric is (.../...)" statement the first parameter is the FD while the second parameter is the AD of that route. So we need to find out which route has the second parameter (AD) less

  than 41152000 -> only answer B satisfies this requirement with an AD of 128256.

  Reference: http://networklessons.com/eigrp/eigrp-neighbor-and-topology-table-explained/

• Question 314:

  What are three benefits of implementing VLANs? (Choose three.)

  A. A higher level of network security can be reached by separating sensitive data traffic from other network traffic.
  B. A more efficient use of bandwidth can be achieved allowing many physical groups to use the same network infrastructure.
  C. A more efficient use of bandwidth can be achieved allowing many logical networks to use the same network infrastructure.
  D. Broadcast storms can be mitigated by increasing the number of broadcast domains, thus reducing their size
  E. Broadcast storms can be mitigated by decreasing the number of broadcast domains, thus increasing their size.
  F. VLANs make it easier for IT staff to configure new logical groups, because the VLANs all belong to the same broadcast domain.
  G. Port-based VLANs increase switch-port use efficiency, thanks to 802.1Q trunks.
  A. A higher level of network security can be reached by separating sensitive data traffic from other network traffic.
  C. A more efficient use of bandwidth can be achieved allowing many logical networks to use the same network infrastructure.
  D. Broadcast storms can be mitigated by increasing the number of broadcast domains, thus reducing their size

• Question 315:

  What is the default administrative distance of OSPF?

  A. 90
  B. 100
  C. 110
  D. 120
  C. 110

  ---

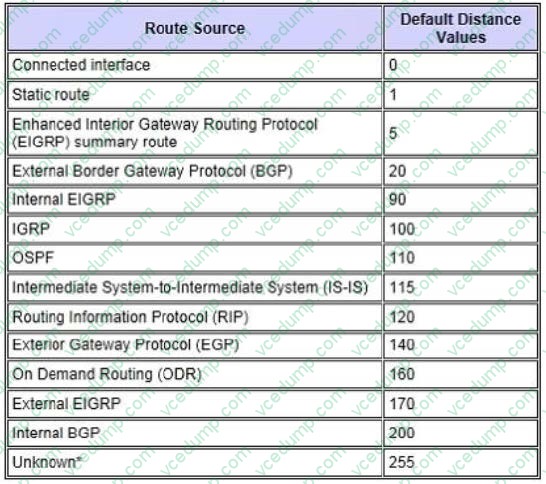

  Default Distance Value Table

  This table lists the administrative distance default values of the protocols that Cisco supports:



• Question 316:

  Which two criteria does a host use to choose from among multiple PADO packets? (Choose two.)

  A. MAC address of the access concentrator
  B. IP address of the access concentrator
  C. services offered by the access concentrator
  D. packet size
  E. name of the access concentrator
  C. services offered by the access concentrator
  E. name of the access concentrator

• Question 317:

  Which protocol provides a method of sharing VLAN configuration information between switches?

  A. VTP
  B. STP
  C. ISL
  D. 802.1Q
  E. VLSM
  A. VTP

  ---

  Understanding VLAN Trunk Protocol (VTP)

  Introduction

  VLAN Trunk Protocol (VTP) reduces administration in a switched network. When you configure a new VLAN on one VTP server, the VLAN is distributed through all switches in the domain. This reduces the need to configure the same VLAN

  everywhere. VTP is a Cisco-proprietary protocol that is available on most of the Cisco Catalyst series products.

  Reference: http://www.cisco.com/en/US/tech/tk389/tk689/technologies_tech_note09186a0080094c52.shtml

• Question 318:

  Which command do you enter to protect a PortFast-enabled port against unauthorized switches on the network?

  A. switch(config)#spanning-tree portfast bpdufilter default
  B. switch(config)#spanning-tree portfast bpduguard default
  C. switch(config-if)#spanning-tree guard root
  D. switch(config-if)#spanning-tree portfast
  B. switch(config)#spanning-tree portfast bpduguard default

  ---

  Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst2960/software/release/12-2_55_se/configuration/guide/scg_2960/swstpopt.html

• Question 319:

  Which of the following is needed to be enable back the role of active in HSRP?

  A. prempt
  B. priority
  C. cost
  D. failover
  A. prempt

• Question 320:

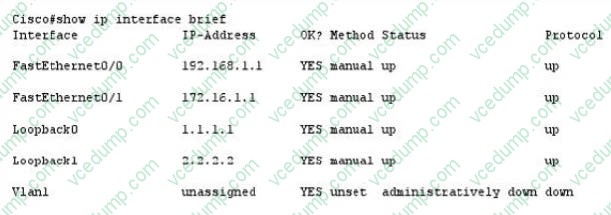

  Refer to the exhibit.

  If the router Cisco returns the given output and has not had its router ID set manually, what value will OSPF use as its router ID?



  A. 192.168.1.1
  B. 172.16.1.1
  C. 1.1.1.1
  D. 2.2.2.2
  D. 2.2.2.2

  ---

  If a router-id is not configured manually in the OSPF routing process the router will automatically configure a router-id determined from the highest IP address of a logical interface (loopback interface) or the highest IP address of an active interface. If more than one loopback interfaces are configured, the router will compare the IP addresses of each of the interfaces and choose the highest IP address from the loopbacks.
