Riverbed 199-01 Online Practice Questions and Exam Preparation

Riverbed 199-01 Online Questions & Answers

• Question 41:

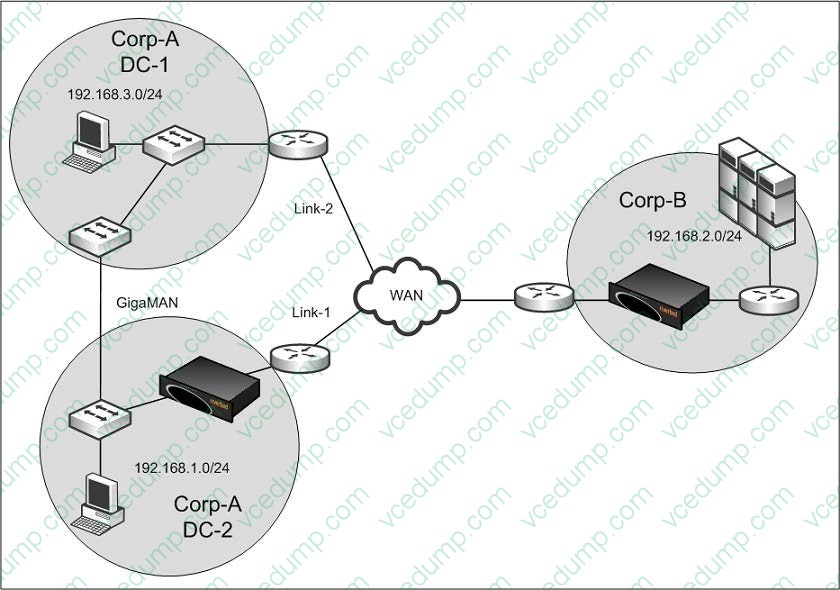

  Refer to the exhibit.



  Traffic going from Corp-A-DC-2 towards Corp-B will always use Link-1. Traffic from Corp-B back to Corp-A-DC-1 may traverse Corp-A-DC-1, over the GigaMAN before it reaches Corp-A-DC-2. No TCP connections are initiated from Corp-B to either Corp-A-DC-1 or Corp-A-DC-2. Unfortunately, the customer does not have any money to purchase any additional Steelheads. What are some possible fixes to ensure optimization occurs while Link-1 is operational? (If Link-1 ceases to function, optimization is not possible.) (Select 2)

  A. Configure a fixed-target rule on the Corp-A-DC-2 Steelhead pointing to the Corp-B Steelhead on port 7800
  B. On the Corp-B Steelhead, enable "in-path probe direct"
  C. On the Corp-A-DC-2 Steelhead, enable "in-path probe direct"
  D. Configure the Corp-A-DC-2 Steelhead to inject a route into the network
  E. Enable Full Transparency
  A. Configure a fixed-target rule on the Corp-A-DC-2 Steelhead pointing to the Corp-B Steelhead on port 7800
  C. On the Corp-A-DC-2 Steelhead, enable "in-path probe direct"

• Question 42:

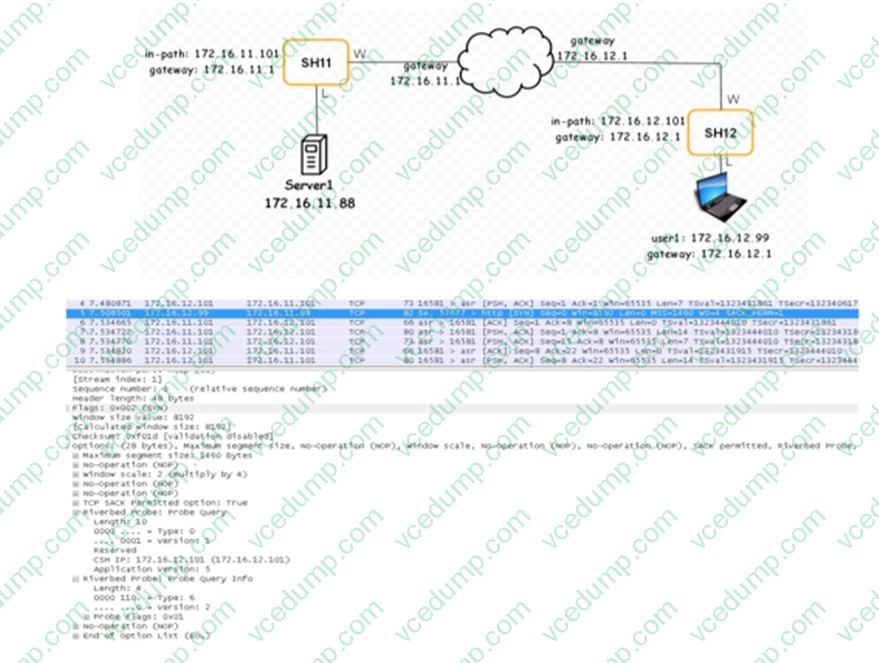

  -- Exhibit



  -- Exhibit -Refer to the exhibit. According to the packet capture, what statements are true? (Select 2)

  A. This Steelhead appliance is configured with enhanced auto-discovery.
  B. This Steelhead appliance is configured with enhanced peering discovery.
  C. The SYN packet coming from 172.16.12.99 with a destination to 172.16.11.88 carries a probe of 10 bytes.
  D. The SYN packet coming from 172.16.12.99 with a destination to 172.16.11.88 carries a probe of 10 bytes + a 4 bytes notification message.
  A. This Steelhead appliance is configured with enhanced auto-discovery.
  D. The SYN packet coming from 172.16.12.99 with a destination to 172.16.11.88 carries a probe of 10 bytes + a 4 bytes notification message.

• Question 43:

  How can you enable SkipWare?

  A. SkipWare is enabled automatically when the license is installed.
  B. On the Management Console host settings menu.
  C. SkipWare is enabled by default.
  D. On the Management Console high-speed TCP menu.
  A. SkipWare is enabled automatically when the license is installed.

• Question 44:

  The Interceptor appliance can be configured to redirect traffic to the Steelhead appliances via what methods?

  A. GRE B. L2
  C. ISIS
  D. Multicast
  E. Redirection is automatic and not configurable
  E. Redirection is automatic and not configurable

• Question 45:

  You need to take a full packet trace from the WAN interface of a Steelhead appliance to send into technical support. Which of the following commands will achieve this assuming typical Ethernet MTU? (Select 2)

  A. tcpdump –i wan0_0 –s 0 –w filename
  B. tcpdump –i wan0_0 –s 1500 –w filename
  C. tcpdump –I wan0_0 –w filename
  D. tcpdump –i wan0_0 –w filename
  E. tcpdump –I wan0_0 –s 1500 –w filename
  A. tcpdump –i wan0_0 –s 0 –w filename
  B. tcpdump –i wan0_0 –s 1500 –w filename

• Question 46:

  In a WCCP configuration, during a packet trace, you notice the return WCCP communication on a CAT 6500 is using GRE. The Steelhead appliance is directly connected to it. What can be done to alleviate the router's CPU? (Select 2)

  A. Force L2 return
  B. Use PBR
  C. Use peering rules to avoid using GRE altogether
  D. Use NBAR to redirect
  E. Nothing can be done to force traffic as a different return
  A. Force L2 return
  B. Use PBR

• Question 47:

  In a recent in-path deployment, users are complaining that some of their CIFS drive-mapping connections do not appear to be optimized. Upon further analysis, you discover the file shares reside on a domain controller. The Steelhead appliances are deployed in a default configuration. Which of the following is the most likely cause of the problem?

  A. The Steelhead appliance lost an Opportunistic Lock on the file
  B. SMB Signing is set to required
  C. No fixed-target rules installed
  D. Misconfigured Steelhead appliance
  E. Packet ricochet
  B. SMB Signing is set to required

• Question 48:

  What port number is should be configured on a Steelhead appliance to communicate to the AAA RADIUS server?

  A. 1645
  B. 1646
  C. 1812
  D. 389
  E. 49
  C. 1812

• Question 49:

  Which deployment options are available to Virtual SteelHead on ESXi?

  A. Physical In-path (with Riverbed bypass NIC)
  B. Virtual In-path
  C. Out-of-path
  D. Server-side Out-of-Path
  E. All of the above
  A. Physical In-path (with Riverbed bypass NIC)
  B. Virtual In-path
  C. Out-of-path

• Question 50:

  How is peer affinity reset in the CLI for an Interceptor appliance cluster?

  A. "peer affinity reset" on all Interceptors
  B. "neighbor reset" on all Steelheads
  C. "service restart" on all Interceptors
  D. "neighbor reset" on all Interceptors
  C. "service restart" on all Interceptors
