Riverbed 199-01 Online Practice Questions and Exam Preparation

Riverbed 199-01 Online Questions & Answers

• Question 311:

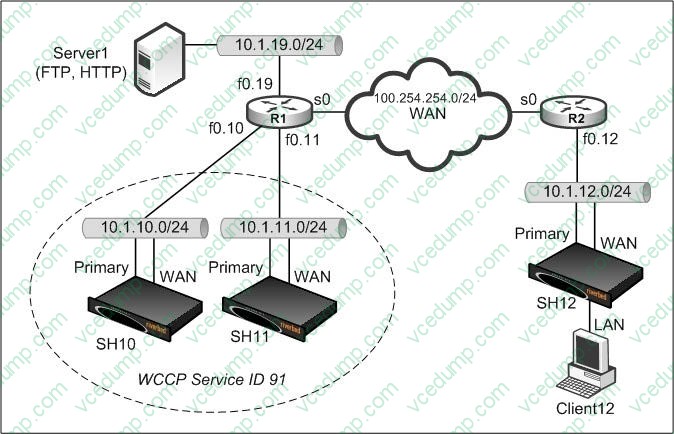

  Refer to the exhibit.



  Assume that a packet being optimized by SH10 incorrectly ends up on SH11 (due to load balancing error, or similar). How can you ensure that this packet is correctly returned to SH10?

  A. Set the WCCP weight of SH10 to be higher than that of SH11
  B. Use fixed-target rules explicitly at SH12 to peer to SH10
  C. Enable destination IP hash and destination port hash
  D. Enable destination IP hash and source port hash
  E. Enable destination IP hash and source IP hash
  F. Enable Connection Forwarding
  F. Enable Connection Forwarding

• Question 312:

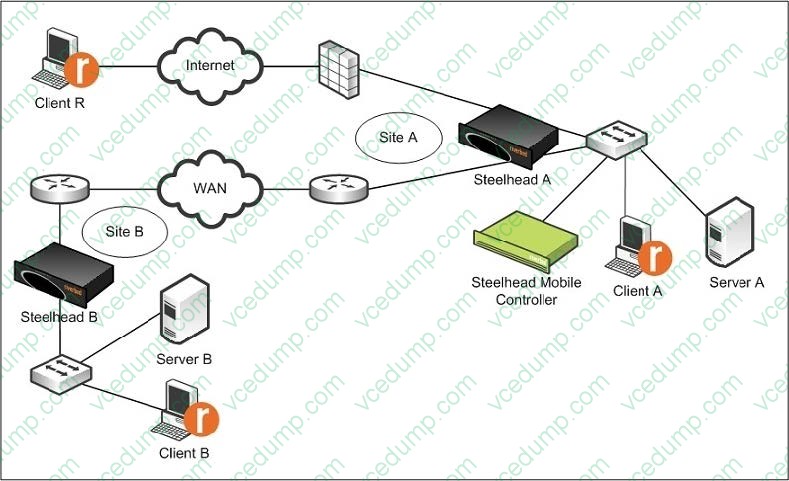

  Refer to the exhibit.



  What configuration option is most relevant on Steelhead A to enable Steelhead Mobile Client R to set up the most efficient optimized connection to Server B?

  A. Enhanced auto-discovery
  B. Simplified Routing
  C. no in-path peering manual enable
  D. in-path rule pass rulenum start
  E. in-path peering rule pass rulenum 1
  A. Enhanced auto-discovery

• Question 313:

  Authentication fails for certain users after configuring the Server-Side Steelhead Appliance to be a RODC. What could be the issue?

  A. These users make use of NTLM authentication.
  B. These users exclusively make use of Kerberos authentication.
  C. Overlapping open is enabled.
  D. SMB signing is required.
  B. These users exclusively make use of Kerberos authentication.

• Question 314:

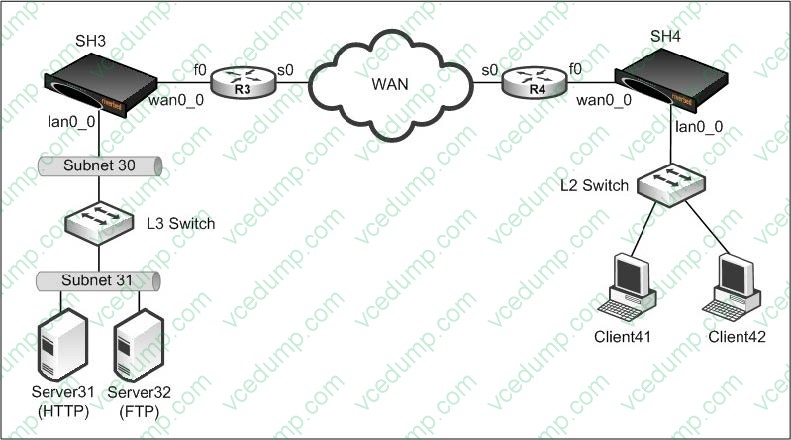

  In the exhibit, there is a resident firewall inside the WAN cloud that drops packets with any TCP option. The customer allows you to use fixed-target rules instead. The firewall policy can only allow unassigned ports 7750-7751 to pass-through it. Additionally, the SH3 has been configured with service port 7750, while SH4 has been configured with service port 7751. Which of the following fixed-target rule specification is correct?



  A. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7800. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7800.
  B. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7810. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7810.
  C. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.
  D. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7751. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7750.
  E. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7751.
  E. The fixed-target rule at SH4 peers to the inpath0_0 IP address of SH3 as the target appliance with port number 7750. The fixed-target rule at SH3 peers to the inpath0_0 IP address of SH4 as the target appliance with port number 7751.

• Question 315:

  Which of the following are configurable in the CMC appliance Jump-Start Wizard? (Select 4)

  A. IP address
  B. Netmask
  C. Steelhead appliance model number
  D. Default gateway
  E. Administrator password
  A. IP address
  B. Netmask
  D. Default gateway
  E. Administrator password

• Question 316:

  In the Interceptor appliance version 3.0 and later the command to enable cluster failover is:

  A. failover-peer enable.
  B. Interceptor appliance communication allow-failure enable.
  C. Interceptor appliance failover enable.
  D. Enable interceptor appliance peer failover.
  B. Interceptor appliance communication allow-failure enable.

• Question 317:

  Which of the following features are available with the Virtual Steelhead appliance? (Select 2)

  A. RSP
  B. HSTCP
  C. Fail-to-wire
  D. PFS
  E. Datastore synchronization
  B. HSTCP
  E. Datastore synchronization

• Question 318:

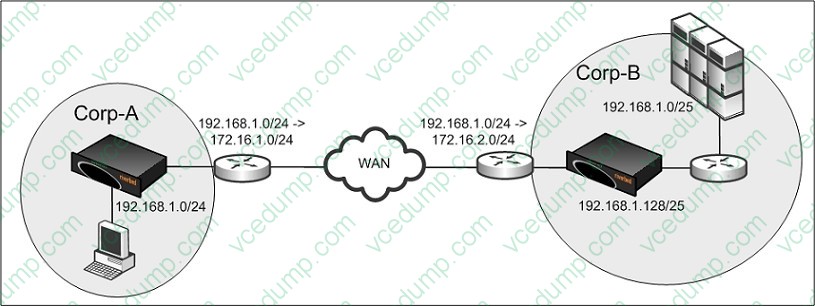

  Refer to the exhibit.



  Corp-A and Corp-B have overlapping address space and therefore the network administrator implemented NAT to overcome this. Users from Corp-A NAT to 172.16.1.0/24 and users from Corp-B NAT to 172.16.2.0/24. Users in Corp-A use the destination address of 172.16.2.0/24 to access the resources in Corp-B. The servers in Corp-B use the client IP for authentication. What do you need to do in order to make this deployment work? (Select 2)

  A. Configure Full Transparency
  B. Configure out-of-path
  C. Configure Port Transparency
  D. Configure OOB Transparency
  E. Steelhead appliances cannot be deployed in this network
  A. Configure Full Transparency
  D. Configure OOB Transparency

• Question 319:

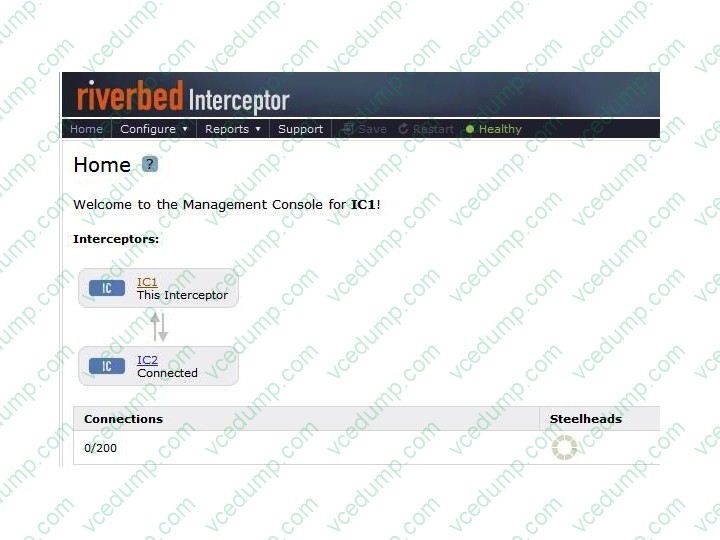

  -- Exhibit -- Exhibit -



  Refer to the exhibit. A Steelhead administrator has recently decided to implement two Interceptor appliances and one Steelhead appliance on his data center. After configuring the Interceptor and the Steelhead, he noticed the information on the screen when he logs into one of the Interceptor appliances. What does that represent? (Select 2)

  A. This is normal ?it represents two Interceptor appliances in failover mode, with one Steelhead appliance in the cluster.
  B. This is normal ?it represents two Interceptor appliances in parallel mode, with one Steelhead appliance in the cluster.
  C. This is not normal ?the Steelhead appliance is showing none of 200 connections available.
  D. This is normal ?the Steelhead appliance is showing there are 200 connections available.
  A. This is normal ?it represents two Interceptor appliances in failover mode, with one Steelhead appliance in the cluster.
  D. This is normal ?the Steelhead appliance is showing there are 200 connections available.

• Question 320:

  On an Interceptor appliance, what does the Neighbor Peers reporting page display?

  A. connected, disconnected
  B. connecting, disconnecting
  C. connected, connecting, disconnecting, disconnected
  D. connected, connecting, resyncing, disconnected
  D. connected, connecting, resyncing, disconnected
