Riverbed 199-01 Online Practice Questions and Exam Preparation

Riverbed 199-01 Online Questions & Answers

• Question 271:

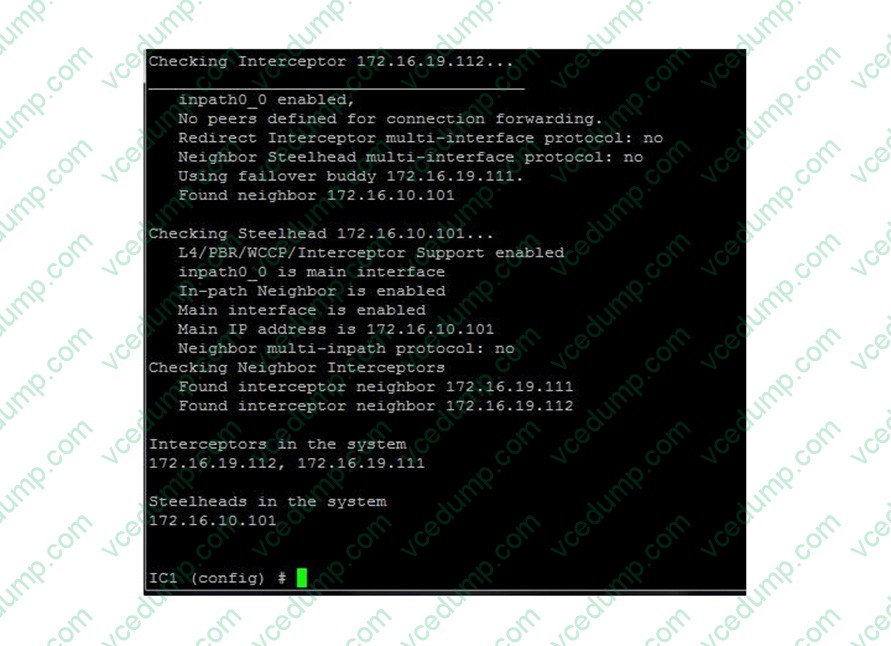

  -- Exhibit



  -- Exhibit -

  Refer to the exhibit. A Steelhead administrator has recently decided to implement two Interceptor appliances and one Steelhead appliance on his data center. After configuring the Intercetor appliances, and the Steelhead appliance, he decided to check if the devices will work appropriately. Which Intercetor appliance diagnostic tool did the administrator use?

  A. The command "debug deployment validation".
  B. The command "debug validate deployment".
  C. The command "connection tracing".
  D. The command "debug tracing".
  B. The command "debug validate deployment".

• Question 272:

  You have an existing Steelhead appliance deployment which is achieving excellent optimization at five sites. You have deployed a Steelhead appliance physically in-path at a new small branch office and all of your applications have become slower for this new branch office only. What is the likely cause?

  A. Incorrect in-path rules at the data-center
  B. Incorrect in-path rules at the new branch office
  C. Duplex mismatch between the new branch Steelhead and a connected device
  D. Duplex mismatch between the data-center Steelhead and a connected device
  E. Incorrect peering rules at the data-center
  F. Incorrect peering rules at the new branch office
  C. Duplex mismatch between the new branch Steelhead and a connected device

• Question 273:

  One of the Steelhead appliances in your Steelhead appliance cluster is running an older version of RiOS. You decide to schedule a change window to upgrade that Steelhead appliance's image to the current release. What should you do to ensure that the Steelhead appliance optimization still occurs and the upgraded Steelhead appliance no longer accepts new connections?

  A. Enable the "no in-path accept new" CLI command
  B. Create an in-path rule on the Steelhead appliance to bypass the connections
  C. On the Interceptor appliance, click on "Pause" for that particular Steelhead appliance
  D. Schedule a job on the Steelhead appliance to remove itself from the cluster
  E. All of the above
  C. On the Interceptor appliance, click on "Pause" for that particular Steelhead appliance

• Question 274:

  What are the capabilities of an Interceptor appliance? (Select 3)

  A. Peer affinity
  B. Sequential rule processing
  C. Intelligent forwarding
  D. Basic in-path rules for pushing to the Steelhead appliance cluster
  E. Centralize reporting of all Steelhead appliances in the enterprise
  A. Peer affinity
  B. Sequential rule processing
  C. Intelligent forwarding

• Question 275:

  In a serial cluster deployment of Interceptor appliances, which interfaces are connected from one Interceptor appliance to another Interceptor appliance assuming they are connected back to back?

  A. LAN0_0 to LAN0_1
  B. WAN0_0 to WAN0_0
  C. WAN0_0 to LAN0_0
  D. LAN0_0 to LAN0_0
  C. WAN0_0 to LAN0_0

• Question 276:

  The primary purpose of the Redirect In-path rule is to:

  A. Select which traffic to redirect to Steelhead appliances
  B. Utilize the Interceptor appliance as a backup firewall device
  C. Select which traffic to split to two different interfaces
  D. Select to which Steelhead appliance(s) traffic will be redirected
  A. Select which traffic to redirect to Steelhead appliances

• Question 277:

  On an Interceptor appliance running Fair Peering v2, what Steelhead characteristic is used to calculate peer affinity?

  A. Appliance size.
  B. Percentage of data store free.
  C. Maximum connection count.
  D. Version of RiOS running.
  A. Appliance size.

• Question 278:

  What is the command to verify a configuration of the Interceptor peers and peer neighbors?

  A. verify interceptor deployment
  B. service verify
  C. debug validate deployment
  D. config checker
  C. debug validate deployment

• Question 279:

  A branch has a Virtual SteelHead VCX75-5H. Recently, staffing levels have changed and the best model for the branch is now a VCX555-L. What is required to downgrade the model?

  A. It is not possible to downgrade a Virtual SteelHead model
  B. Clone the VCX755-H virtual machine (VM) and reduce the CPU(s), memory and storage during clone
  C. ontact Riverbed TAC who can remotely assist in downgrading the VM
  D. Reduce the amount of CPU(s), memory and storage required and reboot
  E. Delete the VM and reinstall using the correct OVA file with the VCX755-H licenses
  B. Clone the VCX755-H virtual machine (VM) and reduce the CPU(s), memory and storage during clone

• Question 280:

  Under what circumstances would there be GRE traffic between the Interceptor and Steelhead appliances?

  A. Throughout the entire lifespan of a connection
  B. During connection teardown
  C. During connection setup
  D. GRE is not used but L2 is used during the entire connection
  E. GRE is never used between the Interceptor and Steelhead appliances
  C. During connection setup
