VMware VCP550 Online Practice Questions and Exam Preparation

VMware VCP550 Online Questions & Answers

• Question 231:

  -- Exhibit -

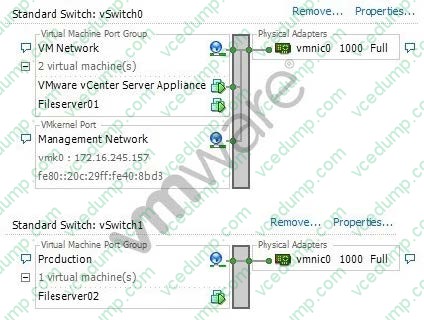

  -- Exhibit -Why is the network configuration shown in the exhibit impossible?

  A. A single vmnic cannot be shared by two virtual switches.
  B. The MAC address of the Management Network VMkernel port is invalid.
  C. Virtual machines are not allowed to run on the same virtual machine port group as the vCenter Server Virtual Appliance.
  D. Virtual Machine Port Groups and VMkernel Ports are not allowed on the same virtual switch.
  A. A single vmnic cannot be shared by two virtual switches.

• Question 232:

  An administrator needs to use vSphere Update Manager to perform orchestrated upgrades of ESXi hosts and virtual machines. The vSphere management components reside in a secure environment that does not have direct access to the Internet.

  How would Update Manager be configured in this environment while maintaining the organization's security requirements?

  A. Install Update Manager Download Service on a machine with Internet access and configure an export policy to the Update Manager server.
  B. Install Update Manager Secure Gateway on a machine in the DMZ and configure an IPsec tunnel to the internal Update Manager server.
  C. Create a TFTP server as an HTTP proxy and configure an export policy to the Update Manager server.
  D. Enable gateway services on the Update Manager server and provide Internet access to the gateway address.
  A. Install Update Manager Download Service on a machine with Internet access and configure an export policy to the Update Manager server.

• Question 233:

  An administrator needs to join several ESXi hosts in the environment to the corporate Active Directory instance. The container and path for the OU is Servers\VMware. The FQDN of the local Active Directory is CORP.AD. Which option accurately shows the information an administrator would enter when configuring an ESXi host to join the domain and ensures the host is placed in the appropriate OU?

  A. ldap://CORP.AD:389/Servers/VMware
  B. CORP.AD/Servers/VMware
  C. cn=VMware, ou=Servers, dc=CORP, dc=AD
  D. ou=VMware, ou=Servers, dc=CORP, dc=AD
  B. CORP.AD/Servers/VMware

• Question 234:

  A vSphere administrator needs to perform packet tracing from a Linux virtual machine. The virtual machine is attached to a vSphere Standard Switch configured with several VLANs. Which approach could the administrator use to configure the network to capture all traffic from the Linux virtual machine?

  A. Configure the virtual switch with VLAN Trunking and specify each VLANs on the port group containing the virtual machine.
  B. Configure a vSphere Distributed Switch with VLAN Trunking. Create a port group and configure it with Promiscuous Mode. Connect the virtual machine to that port group.
  C. Configure the port group containing the virtual machine for Promiscuous Mode. Set the port group to use VLAN 1.
  D. Configure a vSphere Distributed Switch with VLAN Trunking. Connect the virtual machine to the switch and enable Port Mirroring on the port group containing the virtual machine.
  B. Configure a vSphere Distributed Switch with VLAN Trunking. Create a port group and configure it with Promiscuous Mode. Connect the virtual machine to that port group.

• Question 235:

  An administrator has configured hardware acceleration for a Fibre Channel storage array.

  After a recent maintenance event, the administrator finds that cloning and migration operations are taking excessively long to complete.

  Which two settings could cause hardware acceleration to become disabled? (Choose two.)

  A. VAAI Plugin Name = VMW_VAAIP_SYM
  B. VAAI Plugin Name = VMW_VAAIP_NETAPP
  C. VMFS3.HardwareAcceleratedLocking = 0
  D. Datamover.HardwareAcceleratedInit = 0
  C. VMFS3.HardwareAcceleratedLocking = 0
  D. Datamover.HardwareAcceleratedInit = 0

• Question 236:

  What two requirements must be met to create a fully automated Distributed Resource Scheduler (DRS) cluster? (Choose two.)

  A. Shared storage
  B. Hosts with identical processor features
  C. Storage vMotion
  D. vMotion
  A. Shared storage
  D. vMotion

• Question 237:

  An administrator notices that a virtual machine fails to start when right-clicking on the VM in the inventory and clicking Power -> Power On. Which log file should the administrator check first to determine why the virtual machine will not start?

  A. vmkernel.log
  B. messages
  C. vpxa.log
  D. fdm.log
  A. vmkernel.log

• Question 238:

  What is not a supported method for increasing the availability of a vCenter Server virtual machine?

  A. vSphere High Availability
  B. vSphere Fault Tolerance
  C. vCenter Server Heartbeat
  D. Site Recovery Manager
  B. vSphere Fault Tolerance

• Question 239:

  Which minor badge items make up the Efficiency badge score for an ESXi host in vCenter Operations Manager?

  A. Workload, Anomalies, Faults
  B. Workload, Stress, Density
  C. Time Remaining, Capacity Remaining
  D. Reclaimable Waste, Density
  D. Reclaimable Waste, Density

• Question 240:

  A security team is validating policy settings in a vSphere environment.

  By default, which security policy is set to reject on a vSphere Standard Switch?

  A. Promiscuous mode
  B. MAC address changes
  C. Forged transmit
  D. Use explicit failover
  A. Promiscuous mode
