VMware VCP-510 Online Practice Questions and Exam Preparation

VMware VCP-510 Online Questions & Answers

• Question 151:

  vCenter Server is running in a virtual machine that is part of a vSphere DRS cluster. The vCenter Server virtual machine has been tested and can successfully migrate with vMotion between all ESXi hosts in the cluster. DRS is configured for partial automation. What happens if an ESXi 5.x host that is running the vCenter Server virtual machine experiences a power outage?

  A. All DRS cluster operations will be unavailable until the failed ESXi host is brought back online.
  B. vCenter Server will remain offline, but all virtual machines on the remaining hosts will continue without interruption.
  C. This situation cannot occur, because vCenter Server cannot be installed on a virtual machine in a vSphere DRS cluster.
  D. vSphere will restart the vCenter Server virtual machine on another host.
  D. vSphere will restart the vCenter Server virtual machine on another host.

• Question 152:

  A company has been utilizing templates in its environment. It is running a 10-node ESXi 5.x Cluster and DRS has not been configured. Several virtual machines have been deployed from this template and successfully powered on, but a newly deployed virtual machine will not power on. There appears to be adequate CPU and Memory resources available on the host. Which three things can be done to allow more virtual machines to be deployed into the cluster from this template? (Choose three.)

  A. Deploy the virtual machine to a different host using the same datastore
  B. Enable DRS on the cluster to balance the virtual load out across hosts
  C. Increase the virtual machine memory reservation
  D. Move the swap file to a different location
  E. Select a different datastore for the virtual machine
  C. Increase the virtual machine memory reservation
  D. Move the swap file to a different location
  E. Select a different datastore for the virtual machine

• Question 153:

  What would be a valid reason to enable traffic shaping?

  A. Limiting the bandwidth of a FTP server
  B. Restricting the load on a IDS server
  C. Limiting the bandwidth used by an independent hardware iSCSI adapter
  D. Improving the performance of a CPU-intensive application server
  A. Limiting the bandwidth of a FTP server

• Question 154:

  Click the Exhibit button. Based on the exhibit, what is the appropriate action to set a preferred path?



  A. Paths cannot be set to preferred on this array.
  B. Right-click the path you want to prefer and then select Preferred.
  C. Right-click the path you want to prefer then select Active.
  D. Double-click the new path you wish to prefer. The other existing paths will be set to Standby.
  A. Paths cannot be set to preferred on this array.

• Question 155:

  Which two steps are required before VMware Data Recovery can be used? (Choose two.)

  A. The Data Recovery Appliance Module must be installed on vCenter Server.
  B. A private network must be created for the backup appliance.
  C. The vSphere Client plug-in must be installed on any machine VDR will be managed from.
  D. The Data Recovery backup appliance must have additional storage added to it.
  C. The vSphere Client plug-in must be installed on any machine VDR will be managed from.
  D. The Data Recovery backup appliance must have additional storage added to it.

• Question 156:

  An administrator is responsible for enabling file access for desktop users. Many users have complained that they cannot access their files. An alert in the vSphere Client states that the storage connectivity alarm for all hosts has been triggered. The storage screen indicates that everything is connected, but the triggered alert has not been acknowledged. Which action will correct the user access problem?

  A. Rescan the storage on the file-sharing virtual machine on which the users are seeing the problem.
  B. Reconnect the storage containing the user files to all hosts in the cluster, then Refresh datastores on all hosts in the cluster.
  C. Tell each user to reboot their computer.
  D. Reconnect the storage containing the user files to all hosts in the cluster, then Rescan datastores on all hosts in the cluster.
  D. Reconnect the storage containing the user files to all hosts in the cluster, then Rescan datastores on all hosts in the cluster.

• Question 157:

  The vSwitch or vSwitch port group policy setting that allows a virtual machine to listen to traffic other than that which is specifically destined for the given VM is:

  A. MAC Address Changes
  B. Promiscuous Mode
  C. Forged Transmits
  D. Traffic Shaping
  B. Promiscuous Mode

• Question 158:

  An administrator attempts to increase the number of vCPUs in a virtual machine to 8. The configuration cannot be successfully completed. What are two likely causes of this issue? (Choose two.)

  A. MS-DOS was selected as guest OS.
  B. The host has 4 processor threads.
  C. Virtual machine hardware version 7 was chosen.
  D. The vSphere 5.x implementation is using a Standard license.
  A. MS-DOS was selected as guest OS.
  B. The host has 4 processor threads.

• Question 159:

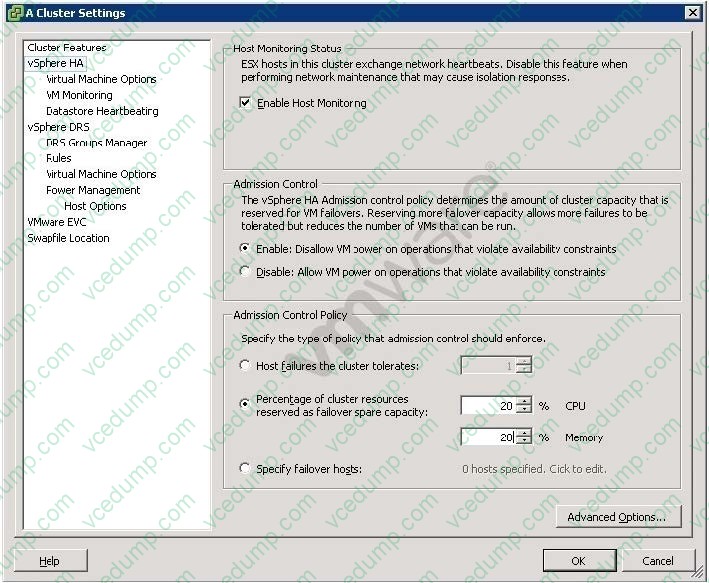

  Click the Exhibit button. An administrator has a DRS/HA cluster with five ESXi 5.x hosts. When the administrator tries to start a new Web server virtual machine, an error is displayed saying insufficient resources exist for HA . Based on the HA configuration in the exhibit, which two changes can resolve the issue? (Choose two.)



  A. Shut down one or more virtual machines on the cluster.
  B. Set VM Restart Priority to Disabled for the Web server.
  C. Set Host Isolation response to Shut down.
  D. Suspend one or more virtual machines in the cluster.
  A. Shut down one or more virtual machines on the cluster.
  D. Suspend one or more virtual machines in the cluster.

• Question 160:

  Which two actions can be scheduled through the Scheduled Task wizard in the vSphere Client? (Choose two.)

  A. Remove a host.
  B. Change the VM power state.
  C. Create a virtual machine.
  D. Revert to a snapshot of a virtual machine.
  B. Change the VM power state.
  C. Create a virtual machine.
