OMG OMG-OCUP2-FOUND100 Online Practice Questions and Exam Preparation

OMG OMG-OCUP2-FOUND100 Online Questions & Answers

• Question 81:

  What is the defining characteristic of a domain model?

  A. It is a model that is specified using UML diagrams.
  B. It is a model that focuses on the domain requirements of the system
  C. It is a model that captures the main domain concepts and their relationships.
  D. It is a model that represents the domain architecture of the implementation of the system.
  C. It is a model that captures the main domain concepts and their relationships.

  ---

  Explanation

  A domain model's defining characteristic is that it captures the main domain concepts and their relationships. This model focuses on representing the key elements within the problem domain, outlining how these elements interact with each other without detailing the specific implementations. The domain model is an essential tool in software development for understanding and communicating the fundamental structure of the system from a problem domain perspective, helping teams to design solutions that are well-aligned with actual domain needs. UML is often used to represent domain models due to its capability to visually and clearly model complex relationships and structures.

• Question 82:

  Which statement is correct about Activity precondition and postcondition constraints?

  A. They apply to all invocations of the Activity
  B. They apply only to specific invocations of the Activity.
  C. They are used to constrain specific actions within the Activity.
  D. They are used to constrain only the flow of objects within the Activity.
  B. They apply only to specific invocations of the Activity.

  ---

  Explanation

  Activity precondition and postcondition constraints are essential for specifying conditions that apply to an activity. Let's break down the concepts:

  Precondition: A precondition represents a condition that must be true before the activity can start or be invoked. It ensures that the necessary prerequisites are met before executing the activity. For example, a precondition for an activity related to booking a flight might be that the user has already logged in to the system. In UML, preconditions are typically expressed using natural language or constraints. These constraints can be associated with the entire activity or specific actions within it.

  Postcondition:

  A postcondition specifies a condition that must be true after the activity completes. It captures the expected state or outcome resulting from the activity's execution. For instance, a postcondition for the flight booking activity might be that the reservation has been successfully confirmed.

  Similar to preconditions, postconditions can apply to the entire activity or individual actions within it.

  Application Scope:

  B is the correct answer because preconditions and postconditions apply only to specific invocations of the activity.

  They do not universally apply to all invocations of the same activity. Different invocations of the same activity may have distinct preconditions and postconditions based on context or input parameters.

  Constraining Actions vs. Flow of Objects: Option is incorrect because preconditions and postconditions are not primarily used to constrain C specific actions within the activity.

  Option is also incorrect because they are not limited to constraining only the flow of objects D within the activity.

  Instead, preconditions and postconditions focus on the overall conditions for invoking and completing the activity.

  In summary, preconditions and postconditions are essential for ensuring the correctness and validity of an activity, but they are context-specific and apply to specific invocations 12.

  References:

  Sparx Systems. "Use Case Diagram - UML 2 Tutorial." 2

  Stack Overflow. "What is the difference between precondition, postcondition, and invariant constraints?" 1 Stack Overflow. "UML Use-case diagram postcondition implementation (with diagram)." 3

• Question 83:

  Which statement is correct regarding Enumeration Literals?

  A. EnumerationLiterals are immutable
  B. EnumerationLiterals may be anonymous.
  C. EnumerationLiterals may not be compared for equality.
  D. Enumeration Literal names may appear more than once within an Enumeration.
  A. EnumerationLiterals are immutable

  ---

  Explanation

  Enumeration literals in UML are used within an enumeration to define a set of named constants.

  According to the UML specification:

  A. This statement is correct. Enumeration literals are indeed immutable, which means once they are defined within an enumeration, their values cannot be changed.

  B. Enumeration literals cannot be anonymous; they must be named so that they can be referenced unambiguously within the model.

  C. Enumeration literals can be compared for equality. In fact, this is one of their primary uses, to allow for comparison between different values of an enumerated type to determine if they are the same.

  D. Enumeration literal names must be unique within their enumeration. They cannot appear more than once as this would cause ambiguity in references to the literals. The most accurate statement according to the UML 2 Foundation specification isA: EnumerationLiterals are immutable.

• Question 84:

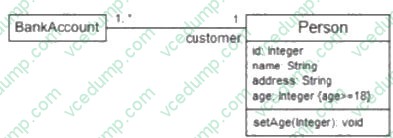

  Consider the following class diagram:



  Which statement is true about the class diagram?

  A. The preferred age to open a bank account is 18 years old or older
  B. Only customers who are 18 years old or older can open a bank account.
  C. The age condition should only hold when the setAge(Integer) function is called
  D. An object of Customer with age set to 18 or greater will raise an exception.
  B. Only customers who are 18 years old or older can open a bank account.

  ---

  Explanation

  In UML 2, a class diagram is used to depict the structure of a system by showing the system's classes, their attributes, operations (or methods), and the relationships among the classes. The constraint {age >= 18} in the Person class diagram indicates a condition that must hold true for the instances of the Person class whenever they are used in the context of a BankAccount. This constraint is an invariant of the Person class that specifies the rule for the

  attribute age.

  Now, let's consider the provided options and explain why option B is correct:

  A. The preferred age to open a bank account is 18 years old or older - This statement is incorrect because the diagram does not indicate a preference; it indicates a constraint or a rule.

  B. Only customers who are 18 years old or older can open a bank account - This is the correct statement. The {age >= 18} constraint next to the age attribute of the Person class signifies that any instance of Person associated with a BankAccount must be at least 18 years old. Since Person is connected to BankAccount with the role name customer, this implies that only persons who are at least 18 can be customers of a bank account.

  C. The age condition should only hold when the setAge(Integer) function is called - This statement is incorrect because the constraint {age >= 18} is not a condition that applies only when the setAge operation is invoked. Instead, it is a class invariant that must always hold true for any instance of Person.

  D. An object of Customer with age set to 18 or greater will raise an exception - This is incorrect because the UML diagram specifies a constraint, not an exception condition. The constraint ensures validity, not the raising of an exception. The answer is verified according to the UML 2 Foundation documents, such as the UML 2.5 specification, where class diagrams and constraints are defined. The specification states that constraints are semantic conditions or restrictions expressed in natural language text or in a machine-readable language that must hold true for the system being modeled (UML 2.5 specification, section 7.9).

• Question 85:

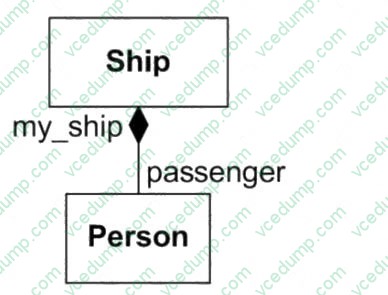

  Consider the following diagram:



  What does the filled diamond mean?

  A. A Ship-instance is responsible for the existence of the Person-instances linked to it.
  B. Class Person's existence depends on the ship. It will get deleted when the ship gets deleted.
  C. It is a modeling placebo It does not have any influence on the structure of the instances of Ship or Person.
  D. Class Ship owns an attribute passenger of Type Person. The ownership of attribute my_ship is undefined.
  E. Class Person owns an attribute my_ship of Type Ship. The ownership of attribute passenger is undefined.
  A. A Ship-instance is responsible for the existence of the Person-instances linked to it.

  ---

  Explanation

  In UML, a filled diamond represents a composite aggregation, also known as a composition. It indicates a whole-part relationship with strong ownership and coincident lifetime of the parts with the whole. Here's what it means in relation to the options provided:

  A. This is partially correct. A filled diamond indeed indicates that the Ship instance is responsible for the existence of the associated Person instances, but it is not complete as it does not explicitly state that the Person instances will be deleted when the Ship instance is deleted.

  B. This option is the most accurate. A filled diamond represents a composite aggregation, which means that the existence of the Person instances (parts) isdependent on the Ship instance (whole). When the Ship instance is deleted, so are the Person instances it contains.

  C. The filled diamond is not a placebo; it has a well-defined meaning in UML, indicating strong ownership and lifecycle dependency between the whole and the part.

  D. While the filled diamond does indicate ownership, it specifies more than just an attribute relationship; it indicates that the Ship class has a composition relationship with the Person class. This means that the Ship object contains Person objects as parts of itself, not just as an attribute reference.

  E. The filled diamond is connected to the Ship class, not the Person class, so this statement is incorrect. The composition relationship is from Ship to Person, not the other way around. Based on the UML specification for composite aggregation, the most accurate statement isB: Class Person's existence depends on the ship. It will get deleted when the ship gets deleted. This aligns with the definition of composite aggregation, where the part's lifecycle is dependent on the whole's lifecycle.

• Question 86:

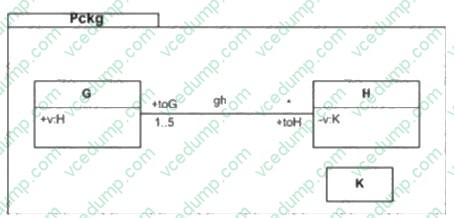

  Consider the following diagram:



  Which statement is true about the diagram?

  A. Within G you may refer to v:K by gh.H::v. .
  B. From within H it is impossible to reach the v within
  C. The package Pckg cannot have two definitions of v as shown in the diagram.
  D. v will indicate different elements depending on where you refer to v within Pckg
  D. v will indicate different elements depending on where you refer to v within Pckg

  ---

  Explanation

  The diagram you provided shows two classes, G and H, which are within a package named Pckg. Each class has an attribute named 'v' with different visibility and typeindicators. The attribute 'v' in class G has visibility 'private' (denoted by '-'), and in class H, it is 'protected' (denoted by '#'). This suggests that the scope of each 'v' is limited to its respective class. Therefore, when you refer to 'v' within the package, its meaning depends on the context or the namespace from which it's accessed.

  References:

  UML 2.x Superstructure Specification: This defines the rules for scopes and namespaces in UML. It clarifies how elements with the same name can coexist in different namespaces and how their references would differ based on the context. UML 2.x Infrastructure Specification: Provides the foundational concepts for UML, including the semantics of structured classifiers and namespaces which pertain to the interpretation of the 'v' attribute in different classes.

• Question 87:

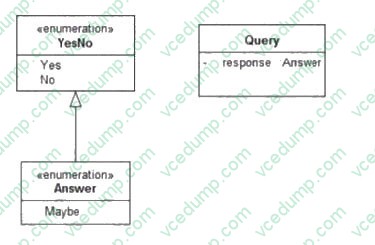

  Given the diagram fragment below:



  What are the possible values for the attribute response in the class Query?

  A. Maybe
  B. Yes. No, Maybe
  C. There is insufficient information to determine the answer.
  D. The diagram is not legal UML
  B. Yes. No, Maybe

  ---

  Explanation

  The second diagram fragment you provided includes two enumeration types, YesNo and Answer, where YesNo is a generalization of Answer. The class Query has an attribute 'response' of type Answer. Given that YesNo is a generalization of Answer, the possible values for 'response' include the literals of Answer plus those inherited from YesNo.

  Since Answer includes 'Maybe', and YesNo includes 'Yes' and 'No', all three are valid values for 'response'.

  References:

  UML 2.x Superstructure Specification: Discusses attributes and their types, the concept of generalization, and how attributes of a generalized type can take on values from their own literals as well as those from their parent in the hierarchy. UML 2.x Infrastructure Specification: Explains the foundational modeling constructs related to enumeration, classes, and attributes, which provides the basis for determining the legal values of an attribute based on its type's enumeration literals.

• Question 88:

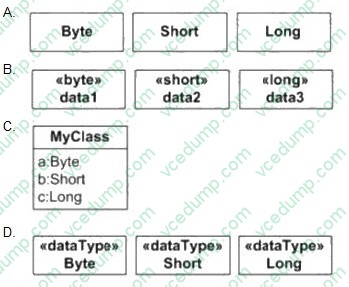

  Suppose you are using a programming language that knows the following basic types: byte, short, and long.

  Which diagram defines them:



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

  ---

  Explanation

  In UML, basic types like byte, short, and long are represented as DataType elements. These are typically used to specify the types of attributes, parameters, or return values of operations in a model. Option A shows three separate classes named Byte, Short, and Long, which would represent these as distinct data types within the UML model.

  Option B incorrectly uses stereotypes on objects, which is not the correct UML representation for data types.

  Option C shows a class with attributes of different types, but it does not define these types as basic types.

  Option D is incorrect because it uses stereotypes on DataType elements, which is not the standard way to represent basic types in UML. According to the UML 2.5 specification, DataTypes are a kind of classifier that specifies a domain of values without identity (section 10.5.8). DataTypes are not classes; they do not have operations and cannot have instances that maintain an identity.

• Question 89:

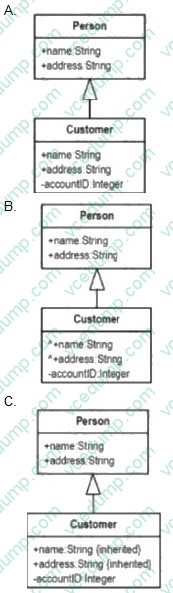

  Which diagram shows inherited properties?



  A. Option A
  B. Option B
  C. Option C
  D. Inherited properties cannot be shown In a specialized class.
  B. Option B

  ---

  Explanation

  In UML, inherited properties are those attributes that are defined in a superclass and inherited by a subclass. According to UML notation, when a subclass inherits from a superclass, it inherits all the attributes and operations of the superclass unless they are redefined.

  Let's examine each option:

  A. In Option A, the Customer class shows the attributes name and address repeated from the Person class. This is not necessary in UML to show inheritance and could imply these are different attributes that happen to have the same name.

  B. In Option B, the attributes of the Person class are not shown in the Customer class. This is correct as UML assumes that all attributes and operations are inherited by the subclass, and there is no need to repeat them unless they are overridden or extended. In this case, the diagram shows inheritance correctly without redundant representation of inherited properties.

  C. In Option C, the inherited properties name and address are explicitly marked as inherited. While it's possible to show inherited properties in this way for clarity, it's not necessary and is less common in standard UML class diagrams.

  D. Statement D is incorrect because inherited properties can be shown in a specialized class, although it is not a requirement to do so for the properties to be inherited. Based on the UML 2 Foundation specification, the correct way to depict inheritance without redundantly listing inherited attributes is shown in Option

  B.

• Question 90:

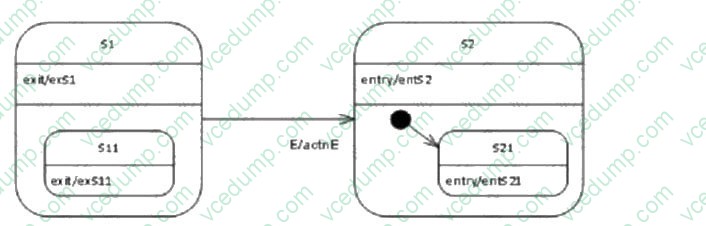

  Which sequence of behavior executions occurs if the state machine below is in state S11 and an event of type E occurs?



  A. actnE; exS1; exS11: entS21; entS2
  B. actnE; exS1; exS11: entS2; entS21
  C. exS11; actnE; entS2
  D. gxSH; exS1; actnE; entS2
  E. exS11; exS1; actnE; entS2; entS21
  B. actnE; exS1; exS11: entS2; entS21

  ---

  Explanation

  The image depicts a state machine with the following states:

  S1

  S11 S2 S21 The state machine transitions are labeled as follows: gxSH - This triggers the transition from the initial state to S1.

  E - This event triggers the transition from S11 to S21. exS1 - This signifies exiting state S1. exS11 - This signifies exiting state S11. entS2 - This signifies entering state S2. entS21 - This signifies entering state S21. actnE - This indicates an action associated with the E event. Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:

  actnE: The action associated with event E is executed. exS11: The state machine exits state S11. exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1. entS2: The state machine enters state S2. entS21: The state machine enters the nested state S21.

  Justification for excluding other options: Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.

  Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.

  Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).

  Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.

  Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.
