Question 1 Single choice

Choose the correct answer

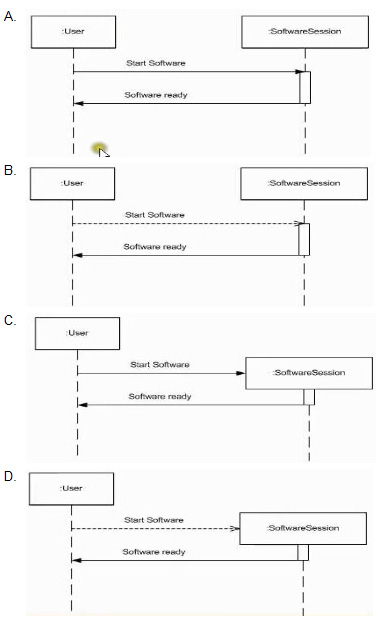

A sequence diagram depicts the beginning of a user's session with a piece of interactive software . The diagram must show that the oftware Session is created by some activity of the .User.

Which sequence diagram fragment expresses this?

  1. A

    Option A

  2. B

    Option B

  3. C

    Option C

  4. D

    Option D

Show answer and explanation

Correct answer: B

Question 2 Single choice

Choose the correct answer.

Where can a StateInvariant appear?

  1. A

    on a lifeline in a sd

  2. B

    on a transition in a stm

  3. C

    on an object node In an act

  4. D

    in the s rates compartment of a block on a bdd

Show answer and explanation

Correct answer: A

Question 3 Single choice

Choose the correct answer.

The essentials of a laptop battery capacity model are shown In the following diagrams (where the value types W, h and Wh stand for watl, hour, and watt-hour respectively). Assume that the instance values shown are inputs, and that nothing relevant has been omitted.

The designer needs to determine what the energy_capacity of battery 1 should be to enable a laptop usage_time_capacity time of 8 hours.

Which combination of the options listed in the text box in the figure will achieve this Intent with minimal changes (including minimal new aspects)?

  1. A

    O1.1 and O2 1

  2. B

    O1.1 and O2 2

  3. C

    O1 1 and O2 3

  4. D

    O1.2 and O2.1

  5. E

    O1 7 and O2.2

  6. F

    O1.2 and O2.3

  7. G

    O1 3 and O2 3

Show answer and explanation

Correct answer: C

Question 4 Single choice

Choose the correct answer.

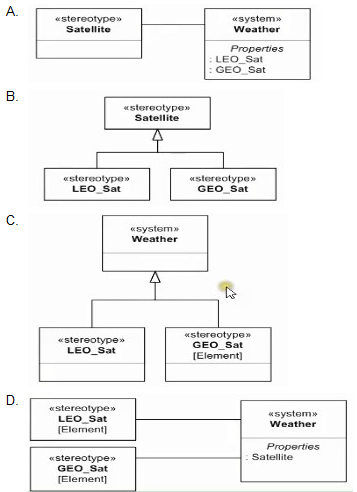

An engineer is building a model of a system that includes both Low Earth Orbit (LEO) and Geosynchronous Orbit (GEO) satellites.

Which diagram fragment shows a well-designed set of domain stereotypes that can be applied to the blocks representing those system elements?

  1. A

    Option A

  2. B

    Option B

  3. C

    Option C

  4. D

    Option D

Show answer and explanation

Correct answer: B

Question 5 Single choice

Choose the correct answer

Which statement is true about the read only keyword when it appears next to a property?

  1. A

    It states that the corresponding property is provided for reading purposes only

  2. B

    It specifies that the corresponding property cannot be redefined

  3. C

    It specifies that the value of the corresponding property cannot change during the lifetime of its owner.

  4. D

    It specifies that the value of the corresponding property can be changed by its owner, but can only be read by other blocks

Show answer and explanation

Correct answer: A

Question 6 Single choice

Choose the correct answer

The following are behavioral requirements for an automobile electric window

(1) When the window button is moved into the up position and the window is not fully up the window shall begin to move up

(2) When the window button is moved into the down position and the window is not hilly down, the window shall begin to move down

(3) When the window button is released or the window reaches the fully up or fully down position, the window shall stop moving

(4) Requirements (1-3) apply when the ignition is on. However, turning the ignition off shall lake effect only after the window has stopped moving.

Which state machine diagram fragment describes the required behavior?

  1. A

    Option A

  2. B

    Option B

  3. C

    Option C

  4. D

    Option D

  5. E

    Option E

Show answer and explanation

Correct answer: A

Question 7 Single choice

Choose the correct answer

How ate use cases and requirements used for requirements analysis in SysML?

  1. A

    in a SysML model, either use cases or requirements are modeled, but never both

  2. B

    Use cases are a relic from UML and are. strictly speaking, useless in a SysML model

  3. C

    Use cases are good for capturing functional requirements. For nonfunctional requirements, the requirement element is needed

  4. D

    Use cases are the basis for all requirements in a model. Requirements refine the use cases by adding additional information through then properties.

Show answer and explanation

Correct answer: C

Question 8 Single choice

Choose the correct answer.

What is the best way to specify the behavior of a functional requirement?

  1. A

    Model an activity that refines the functional requirement.

  2. B

    Model a state machine that refines the functional requirement.

  3. C

    The project methodology will indicate which way is compatible with its process.

  4. D

    The requirement text must be a clear and concise specification of the functionality.

Show answer and explanation

Correct answer: A

Question 9 Single choice

Choose the correct answer

What is an efficient way to represent highly reused patterns of interaction on sequence diagrams?

  1. A

    an Interaction use referencing an interaction defined on a separate sequence diagram

  2. B

    an interaction template construct that is instantiated from the referring sequence diagram

  3. C

    the call interaction operator with an operand referring to the reusable Interaction defined elsewhere

  4. D

    an activation on the referring sequence diagram allocated to another activation on the referenced diagram

Show answer and explanation

Correct answer: B

Question 10 Single choice

Choose the correct answer

Where may constraint blocks be defined?

  1. A

    on any diagram

  2. B

    only on parametric diagrams

  3. C

    only on block definition diagrams

  4. D

    only on block definition diagrams or package diagrams

  5. E

    only on block definition diagrams or parametric diagrams

  6. F

    only on block definition diagrams or internal block diagrams

Show answer and explanation

Correct answer: D
