The Open Group OG0-021 Online Practice Questions and Exam Preparation

The Open Group OG0-021 Online Questions & Answers

• Question 1:

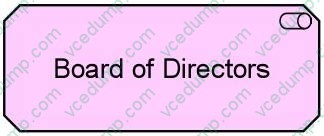

  Consider the following symbol, which represents information about a transformation project at ArchiSurance involving systems and business processes:



  Which of the following statements correctly expresses the meaning of the symbol?

  A. The Board of Directors will use the transformed systems
  B. The Board of Directors has a business role in the project
  C. The transformed systems will store information of interest to the Board of Directors
  D. The Board of Directors has concerns about the project
  D. The Board of Directors has concerns about the project

• Question 2:

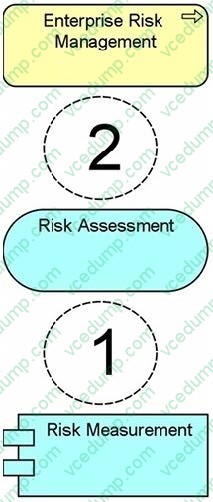

  At ArchiSurance, a Risk Assessment service provided by a Risk Measurement application enables actuaries to assess and mitigate financial risks as part of the Enterprise Risk Management process. Which combination of relationships, when added to this diagram, would best represent this situation?

  A. 1. Realization and 2. Assignment
  B. 1. Used by and 2. Realization
  C. 1. Realization and 2. Realization
  D. 1. Realization and 2. Used By
  D. 1. Realization and 2. Used By

• Question 3:

  Which application layer concept is defined as a passive element?

  A. Application component
  B. Application function r
  C. Data object
  D. Business object
  C. Data object

• Question 4:

  Consider the following symbol:



  Which of the following best describes what this symbol represents?

  A. A modular, deployable, and replaceable part of a software system that encapsulates its behavior and data and exposes these through a set of interfaces
  B. A perceptible form of the information carried by a business object
  C. A physical piece of data used or produced in software development, or by system deployment and operation
  D. A software environment for specific types of components and objects that are deployed on it
  C. A physical piece of data used or produced in software development, or by system deployment and operation

• Question 5:

  Consider the following diagram:



  Which of the following best describes what this diagram represents?

  A. A device with two system software environments. Two artifacts are deployed in one system software environment, and one artifact is deployed in the other environment
  B. A node with two devices. Two artifacts are deployed in one device, and one artifact is deployed in the other device
  C. A node with two system software environments. Two artifacts are deployed in one system software environment, and one artifact is deployed in the other environment
  D. A node with two application components. Two artifacts are deployed in one application component, and one artifact is deployed in the other components
  C. A node with two system software environments. Two artifacts are deployed in one system software environment, and one artifact is deployed in the other environment

• Question 6:

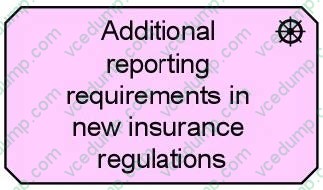

  Consider the following symbol, which represents information about a transformation project at ArchiSurance involving systems and business processes: Which of the following statements correctly expresses the meaning of the symbol?



  A. The ArchiSurance legal department has determined the impact of the new regulations
  B. The project must satisfy requirements for additional reporting
  C. The additional reporting requirements in new insurance regulations are driving change at ArchiSurance
  D. The project's systems must be flexible enough to accommodate any future changes in reporting requirements
  C. The additional reporting requirements in new insurance regulations are driving change at ArchiSurance

• Question 7:

  Which concept is typically used to model hardware systems such as mainframes, PCs, or routers?

  A. System software
  B. Network
  C. Artifact
  D. Device
  D. Device

• Question 8:

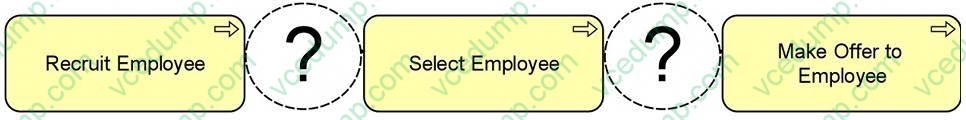

  At ArchiSurance, the Recruit Employee process passes information to the Select Employee process, which in turn passes information to the Make Offer to Employee process:



  Which ArchiMate relationship should be used to express the passage of information between processes?

  A. Triggering
  B. Access
  C. Flow
  D. Assignment
  C. Flow

• Question 9:

  Which of the following phases of the TOGAF ADM correspond most closely to the ArchiMate Motivation Extension?

  A. Preliminary, Architecture Vision, Requirements Management
  B. Opportunities and Solutions, Migration Planning, Implementation Governance
  C. Architecture Change Management
  D. Business Architecture, Information Systems Architectures, Technology Architecture
  A. Preliminary, Architecture Vision, Requirements Management

• Question 10:

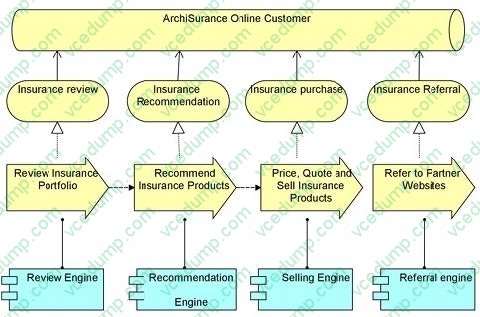

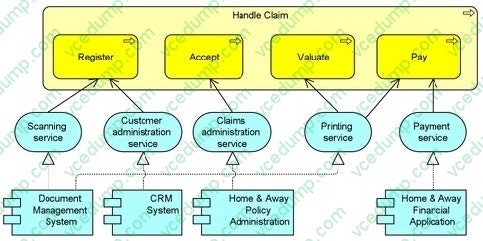

  Consider the following diagram:



  In which phase of the TOGAF Architecture Development Method (ADM) would such a view be most applicable?

  A. Preliminary Phase
  B. Phase B: Business Architecture
  C. Phase C: Information Systems Architectures
  D. Phase D: Technology Architecture
  C. Phase C: Information Systems Architectures
