Fortinet Fortinet Certifications NSE7_SDW-7.0 Questions & Answers

• Question 71:

  Which three performance SLA protocols are available on the FortiGate CLI only? (Choose three.)

  A. tcp-echo

  B. icmp

  C. twamp

  D. udp-echo

  E. smtp

  Correct Answer: ACD

  Command output from a fortigate:

  FW-01 (test-health-check) # set protocol

  ping Use PING to test the link with the server.

  tcp-echo Use TCP echo to test the link with the server. udp-echo Use UDP echo to test the link with the server. http Use HTTP-GET to test the link with the server. twamp Use TWAMP to test the link with the server. dns Use DNS query to test

  the link with the server. tcp-connect Use a full TCP connection to test the link with the server.

  ftp Use FTP to test the link with the server.

• Question 72:

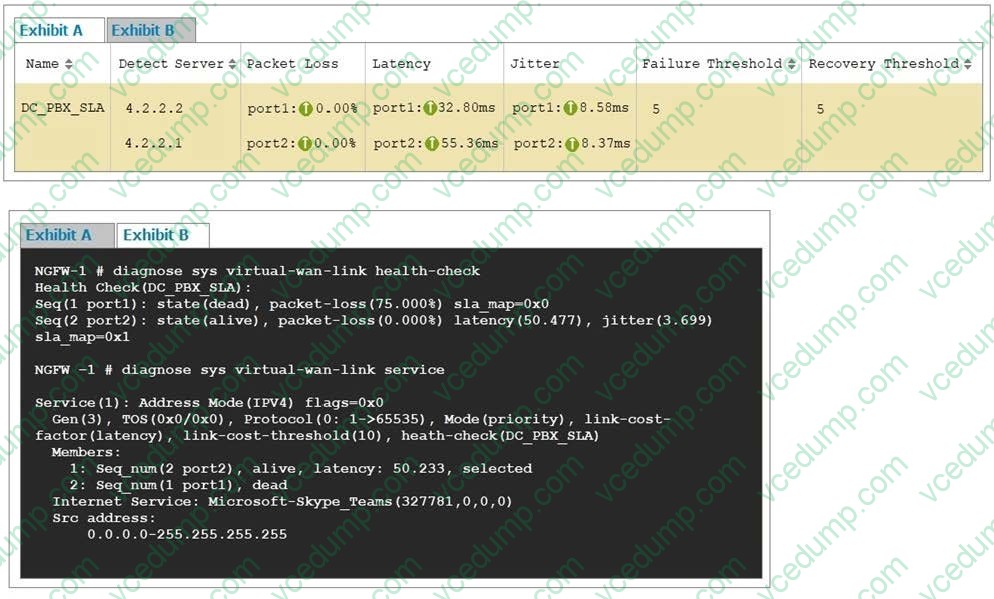

  Refer to exhibits.



  Exhibit A shows the performance SLA exhibit B shows the SD-WAN diagnostics output. Based on the exhibits, which statement is correct?

  A. Both SD-WAN member interfaces have used separate SLA targets.

  B. The SLA state of port1 is dead after five unanswered requests by the SLA servers.

  C. Port1 became dead 1ecause no traffic was offload through the egress of port1.

  D. SD-WAN member interfaces are affected by the SLA state of the inactive interface

  Correct Answer: B

  SD-WAN_6.4_Study_Guide page 57

• Question 73:

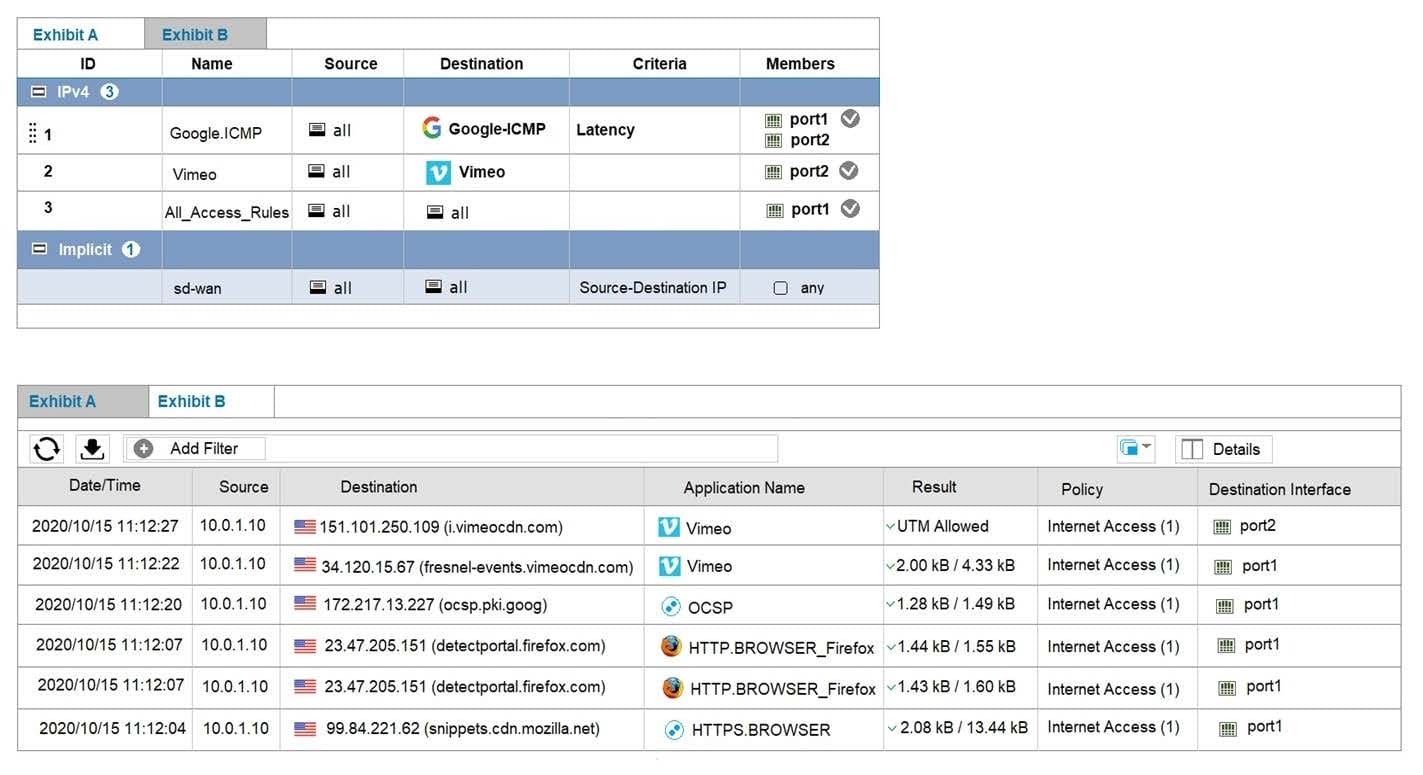

  Refer to exhibits.



  Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic. Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)

  A. The implicit rule overrides all other rules because parameters widely cover sources and destinations.

  B. SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom.

  C. The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces.

  D. The initial session of an application goes through a learning phase in order to apply the correct rule.

  Correct Answer: BD

• Question 74:

  What are the two minimum configuration requirements for an outgoing interface to be selected once the SD-WAN logical interface is enabled? (Choose two )

  A. Specify outgoing interface routing cost.

  B. Configure SD-WAN rules interface preference.

  C. Select SD-WAN balancing strategy.

  D. Specify incoming interfaces in SD-WAN rules.

  Correct Answer: BC

• Question 75:

  Which two statements about SLA targets and SD-WAN rules are true? (Choose two.)

  A. Member metrics are measured only if an SLA target is configured.

  B. SLA targets are used only by SD-WAN rules that are configured with Lowest Cost (SLA) or Maximize Bandwidth (SLA) as strategy.

  C. When configuring an SD-WAN rule, you can select multiple SLA targets of the same performance SLA.

  D. SD-WAN rules use SLA targets to check if the preferred members meet the SLA requirements.

  Correct Answer: BD

• Question 76:

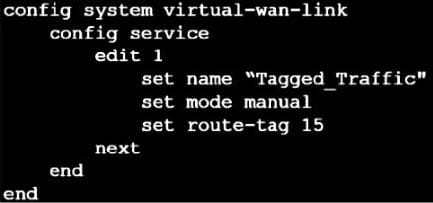

  Refer to the exhibit.



  Which statement about the command route-tag in the SD-WAN rule is true?

  A. It enables the SD-WAN rule to load balance and assign traffic with a route tag

  B. It tags each route and references the tag in the routing table.

  C. It uses route tags for a BGP community and assigns the SD-WAN rules with same tag.

  D. It ensures route tags match the SD-WAN rule based on the rule order

  Correct Answer: C

• Question 77:

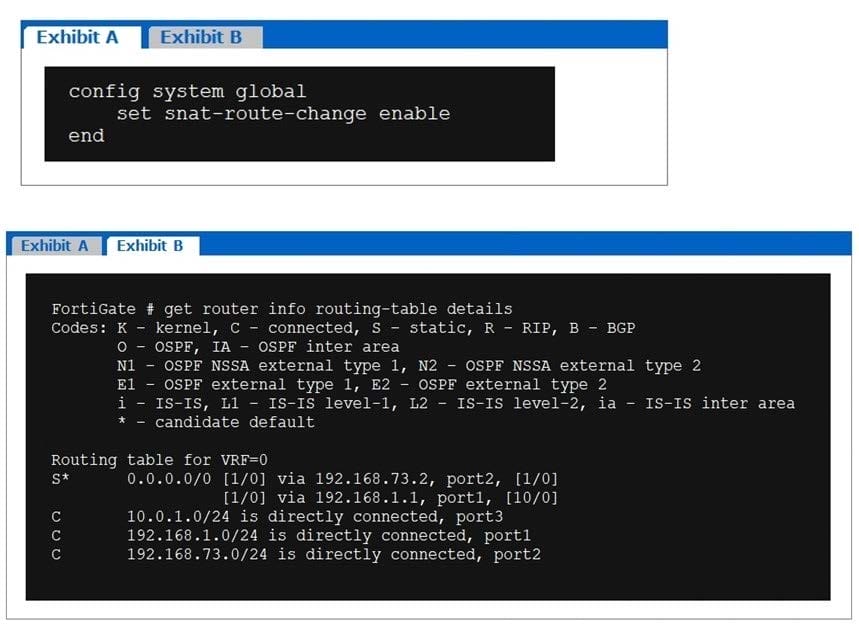

  Refer to exhibits.



  Exhibit A shows the source NAT global setting and exhibit B shows the routing table on FortiGate.

  Based on the exhibits, which two statements about increasing the port2 interface priority to 20 are true? (Choose two.)

  A. All the existing sessions that do not use SNAT will be flushed and routed through port1.

  B. All the existing sessions will continue to use port2, and new sessions will use port1.

  C. All the existing sessions using SNAT will be flushed and routed through port1.

  D. All the existing sessions will be blocked from using port1 and port2.

  Correct Answer: AC

• Question 78:

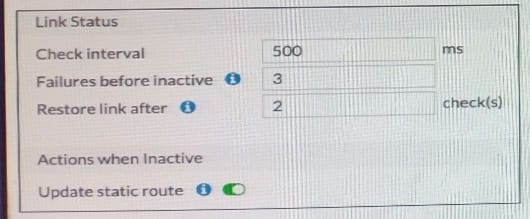

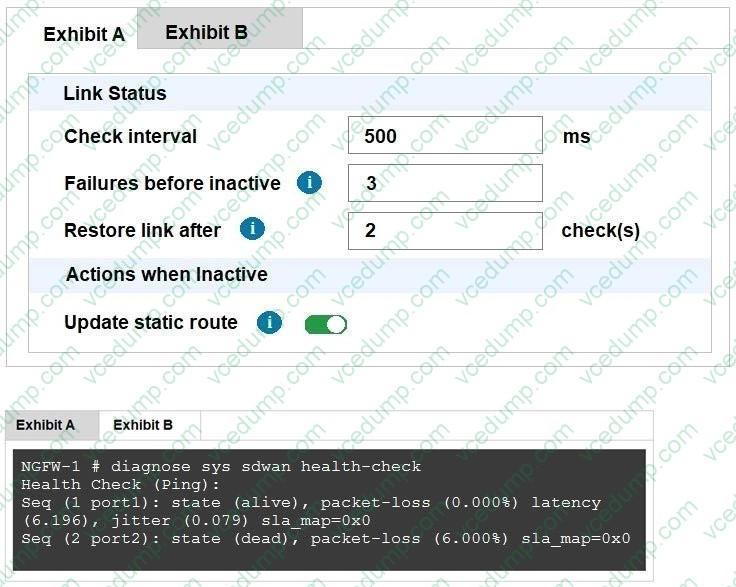

  Refer to exhibits. Exhibit A.

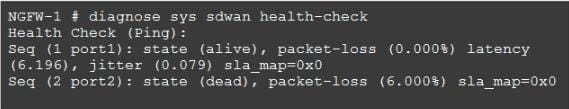

  Exhibit B.



  Exhibit A, which shows the SD-WAN performance SLA and exhibit B shows the health of the participating SD-WAN members. Based on the exhibits, which statement is correct?

  A. The dead member interface stays unavailable until an administrator manually brings the interface back.

  B. The SLA state of port2 has exceeded three consecutive unanswered requests from the SLA server.

  C. Static routes using port2 are active in the routing table.

  D. FortiGate has not received three consecutive requests from the SLA server configured for port2.

  Correct Answer: D

• Question 79:

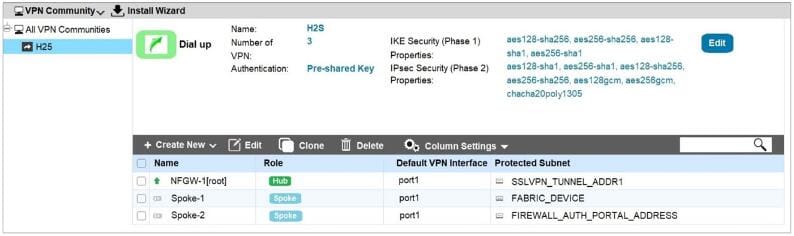

  Refer to the exhibit.



  What must you configure to enable ADVPN?

  A. On the hub VPN, only the device needs additional phase one sett

  B. ADVPN should only be enabled on unmanaged FortiGate devices.

  C. Each VPN device has a unique pre-shared key configured separately on phase one

  D. The protected subnets should be set to address object to all (0.0.0.0/0)..

  Correct Answer: D

  SD-WAN 6.4.5 Study Guide. pg 210

• Question 80:

  Which two settings can you configure to speed up routing convergence in BGP? (Choose two.)

  A. update-source

  B. set-route-tag

  C. holdtime-timer

  D. link-down-failover

  Correct Answer: CD
