Fortinet NSE6_FWF-6.4 Online Practice Questions and Exam Preparation

Fortinet NSE6_FWF-6.4 Online Questions & Answers

• Question 1:

  How can you find upstream and downstream link rates of a wireless client using FortiGate?

  A. On the FortiAP CLI, using the cw_diag ksta command
  B. On the FortiAP CLI, using the cw_diag -d sta command
  C. On the FortiGate GUI, using the WiFi Client monitor
  D. On the FortiGate CLI, using the diag wireless-controller wlac -d Sta command
  C. On the FortiGate GUI, using the WiFi Client monitor

  ---

  explanation:

  Explanation/Reference:

  The WiFi Client monitor on the FortiGate GUI shows the upstream and downstream link rates of a wireless client, along with other information such as MAC address, SSID, IP address, signal strength, and connection time. The link rates indicate the maximum data rates that the client can achieve in both directions. References: Secure Wireless LAN Course Description, page 7; [FortiOS 6.4.0 Handbook - Wireless Controller], page 37.

• Question 2:

  Which statement is correct about security profiles on FortiAP devices?

  A. Security profiles can only be applied to unencrypted wireless traffic.
  B. Security profiles can only be applied via firewall policies on the FortiGate.
  C. Security profiles are only supported on Bridge-mode SSIDs.
  D. Security profiles on FortiAP devices can use FortiGate subscription to inspect the traffic.
  D. Security profiles on FortiAP devices can use FortiGate subscription to inspect the traffic.

  ---

  explanation:

  Explanation/Reference:

  Security profiles on FortiAP devices can use FortiGate subscription to inspect the traffic, such as antivirus, web filtering, application control, and IPS. This feature is called local bridging and it allows the FortiAP to forward traffic to the FortiGate for security inspection before sending it to the destination network. This reduces the bandwidth consumption and latency of tunnel mode SSIDs. References: Secure Wireless LAN Course Description, page 9; [FortiOS 6.4.0 Handbook - Wireless Controller], page 46.

• Question 3:

  How are wireless clients assigned to a dynamic VLAN configured for hash mode?

  A. Using the current number of wireless clients connected to the SSID and the number of IPs available in the least busy VLAN
  B. Using the current number of wireless clients connected to the SSID and the number of clients allocated to each of the VLANs
  C. Using the current number of wireless clients connected to the SSID and the number of VLANs available in the pool
  D. Using the current number of wireless clients connected to the SSID and the group the FortiAP is a member of
  C. Using the current number of wireless clients connected to the SSID and the number of VLANs available in the pool

  ---

  explanation:

  Explanation/Reference:

  VLAN from the VLAN pool based on a hash of the current number of SSID clients and the number of entries in the VLAN pool.

  Reference: https://docs.fortinet.com/document/fortiap/7.0.1/fortiwifi-and-fortiap-configuration-guide/376326/configuring-dynamic-user-vlan-assignment

• Question 4:

  Which statement is correct about security profiles on FortiAP devices?

  A. Security profiles on FortiAP devices can use FortiGate subscription to inspect the traffic
  B. Only bridge mode SSIDs can apply the security profiles
  C. Disable DTLS on FortiAP
  D. FortiGate performs inspection the wireless traffic
  B. Only bridge mode SSIDs can apply the security profiles

  ---

  explanation:

  Explanation/Reference:

  Reference: https://docs.fortinet.com/document/fortiap/6.4.0/fortiwifi-and-fortiap-configuration-guide/47321/fortiap-s-bridge-mode-security-profiles

• Question 5:

  When deploying a wireless network that is authenticated using EAP PEAP, which two configurations are required? (Choose two.)

  A. An X.509 certificate to authenticate the client
  B. An X.509 to authenticate the authentication server
  C. A WPA2 or WPA3 personal wireless network
  D. A WPA2 or WPA3 Enterprise wireless network
  A. An X.509 certificate to authenticate the client
  B. An X.509 to authenticate the authentication server

  ---

  explanation:

  Explanation/Reference:

  X.509 certificates and work for connections that use Secure Socket Layer/Transport Level Security (SSL/TLS). Both client and server certificates have additional requirements. Reference: https://docs.microsoft.com/en-us/windows-server/networking/technologies/nps/nps-manage-cert-requirements

• Question 6:

  What is the first discovery method used by FortiAP to locate the FortiGate wireless controller in the default configuration?

  A. DHCP
  B. Static
  C. Broadcast
  D. Multicast
  A. DHCP

  ---

  explanation:

  Explanation/Reference:

• Question 7:

  A tunnel mode wireless network is configured on a FortiGate wireless controller. Which task must be completed before the wireless network can be used?

  A. The wireless network interface must be assigned a Layer 3 address
  B. Security Fabric and HTTPS must be enabled on the wireless network interface
  C. The wireless network to Internet firewall policy must be configured
  D. The new network must be manually assigned to a FortiAP profile
  C. The wireless network to Internet firewall policy must be configured

  ---

  explanation:

  Explanation/Reference:

  A FortiGate unit is an industry leading enterprise firewall. In addition to consolidating all the functions of a network firewall, IPS, anti-malware, VPN, WAN optimization, Web filtering, and application control in a single platform, FortiGate also has an integrated Wi-Fi controller.

  Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/723e20ad-5098-11e9-94bf-00505692583a/FortiWiFi_and_FortiAP-6.2.0-Configuration_Guide.pdf

• Question 8:

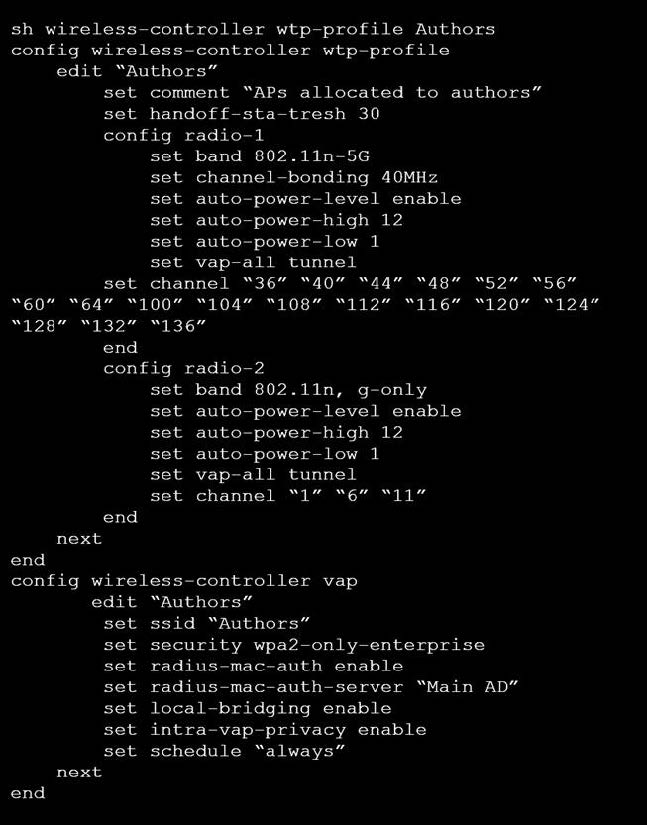

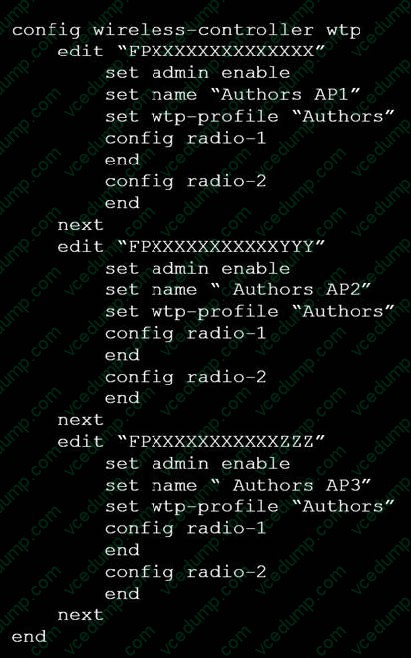

  Refer to the exhibits. Exhibit A



  Exhibit B



  A wireless network has been created to support a group of users in a specific area of a building. The wireless network is configured but users are unable to connect to it. The exhibits show the relevant controller configuration for the APs and

  the wireless network.

  Which two configuration changes will resolve the issue? (Choose two.)

  A. For both interfaces in the wtp-profile, configure set vaps to be “Authors”
  B. Disable intra-vap-privacy for the Authors vap-wireless network
  C. For both interfaces in the wtp-profile, configure vap-all to be manual
  D. Increase the transmission power of the AP radio interfaces
  B. Disable intra-vap-privacy for the Authors vap-wireless network
  C. For both interfaces in the wtp-profile, configure vap-all to be manual

  ---

  explanation:

  Explanation/Reference:

• Question 9:

  As a network administrator, you are responsible for managing an enterprise secure wireless LAN. The controller is based in the United States, and you have been asked to deploy a number of managed APs in a remote office in Germany. What is the correct way to ensure that the RF channels and transmission power limits are appropriately configured for the remote APs?

  A. Configure the APs individually by overriding the settings in Managed FortiAPs
  B. Configure the controller for the correct country code for Germany
  C. Clone a suitable FortiAP profile and change the county code settings on the profile
  D. Create a new FortiAP profile and change the county code settings on the profile
  C. Clone a suitable FortiAP profile and change the county code settings on the profile

  ---

  explanation:

  Explanation/Reference:

  Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/69a8fa9c-1eaa-11e9-b6f6-f8bc1258b856/fortigate-fortiwifi-and-fortiap-configuration-guide-54.pdf

• Question 10:

  Which of the following is a requirement to generate analytic reports using on-site FortiPresence deployment?

  A. SQL services must be running
  B. Two wireless APs must be sending data
  C. DTLS encryption on wireless traffic must be turned off
  D. Wireless network security must be set to open
  B. Two wireless APs must be sending data

  ---

  explanation:

  Explanation/Reference:

  FortiPresence VM is deployed locally on your site and consists of two virtual machines. All the analytics data collected and computed resides locally on the VMs.

  Reference: https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/30bd9962-44e8-11eb-b9ad-00505692583a/FortiPresence_VM-1.0.0-Administration_Guide.pdf
