Fortinet Fortinet Certifications NSE5_FMG-6.2 Questions & Answers

• Question 21:

  As a result of enabling FortiAnalyzer features on FortiManager, which of the following statements is true?

  A. FortiManager will reboot

  B. FortiManager will send the logging configuration to the managed devices so the managed devices will start sending logs to FortiManager

  C. FortiManager will enable ADOMs automatically to collect logs from non-FortiGate devices

  D. FortiManager can be used only as a logging device.

  Correct Answer: A

• Question 22:

  Which of the following items does an FGFM keepalive message include? (Choose two.)

  A. FortiGate uptime

  B. FortiGate license information

  C. FortiGate IPS version

  D. FortiGate configuration checksum

  Correct Answer: CD

• Question 23:

  View the following exhibit.



  Based on the configuration setting, which one of the following statements is true?

  A. The setting allows automatic updates to the policy package configuration for a managed device

  B. The setting enables the ADOMs feature on FortiManager

  C. This setting allows you to assign different VDOMs from the same FortiGate to different ADOMs.

  D. The setting disables concurrent ADOM access and adds ADOM locking

  Correct Answer: C

• Question 24:

  What configuration setting for FortiGate is part of a device-level database on FortiManager?

  A. VIP and IP Pools

  B. Firewall policies

  C. Security profiles

  D. Routing

  Correct Answer: D

• Question 25:

  In addition to the default ADOMs, an administrator has created a new ADOM named Training for FortiGate devices. The administrator sent a device registration to FortiManager from a remote FortiGate. Which one of the following statements is true?

  A. The FortiGate will be added automatically to the default ADOM named FortiGate.

  B. The FortiGate will be automatically added to the Training ADOM.

  C. By default, the unregistered FortiGate will appear in the root ADOM.

  D. The FortiManager administrator must add the unregistered device manually to the unregistered device manually to the Training ADOM using the Add Device wizard

  Correct Answer: C

• Question 26:

  An administrator run the reload failure command: diagnose test deploymanager reload config on FortiManager. What does this command do?

  A. It downloads the latest configuration from the specified FortiGate and performs a reload operation on the device database.

  B. It installs the latest configuration on the specified FortiGate and update the revision history database.

  C. It compares and provides differences in configuration on FortiManager with the current running configuration of the specified FortiGate.

  D. It installs the provisioning template configuration on the specified FortiGate.

  Correct Answer: A

• Question 27:

  In the event that the primary FortiManager fails, which of the following actions must be performed to return the FortiManager HA to a working state?

  A. Secondary device with highest priority will automatically be promoted to the primary role, and manually reconfigure all other secondary devices to point to the new primary device

  B. Reboot one of the secondary devices to promote it automatically to the primary role, and reconfigure all other secondary devices to point to the new primary device.

  C. Manually promote one of the secondary devices to the primary role, and reconfigure all other secondary devices to point to the new primary device.

  D. FortiManager HA state transition is transparent to administrators and does not require any reconfiguration.

  Correct Answer: C

• Question 28:

  An administrator would like to create an SD-WAN default static route for a newly created SD-WAN using the FortiManager GUI. Both port1 and port2 are part of the SD-WAN member interfaces. Which interface must the administrator select in the static route device drop-down list?

  A. port2

  B. virtual-wan-link

  C. port1

  D. auto-discovery

  Correct Answer: B

• Question 29:

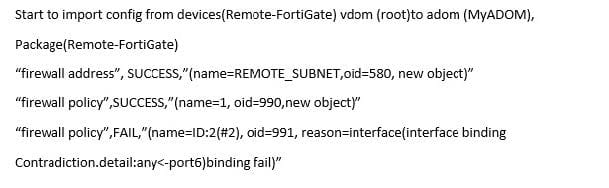

  View the following exhibit, which shows the Download Import Report:



  Why it is failing to import firewall policy ID 2?

  A. The address object used in policy ID 2 already exist in ADON database with any as interface association and conflicts with address object interface association locally on the FortiGate

  B. Policy ID 2 is configured from interface any to port6 FortiManager rejects to import this policy because any interface does not exist on FortiManager

  C. Policy ID 2 does not have ADOM Interface mapping configured on FortiManager

  D. Policy ID 2 for this managed FortiGate already exists on FortiManager in policy package named Remote-FortiGate.

  Correct Answer: A

• Question 30:

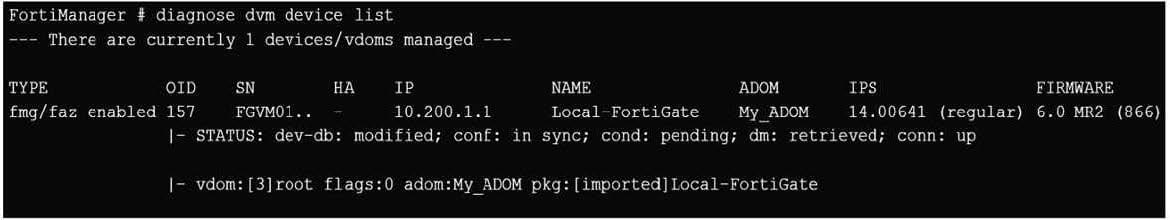

  Refer to the exhibit.



  Which two statements about the output are true? (Choose two.)

  A. The latest revision history for the managed FortiGate does match with the FortiGate running configuration

  B. Configuration changes have been installed to FortiGate and represents FortiGate configuration has been changed

  C. The latest history for the managed FortiGate does not match with the device-level database

  D. Configuration changes directly made on the FortiGate have been automatically updated to device- level database

  Correct Answer: AC

  STATUS:

  dev-db: modified; conf: in sync; cond: pending; dm: retrieved; conn: up -dev-db: modified - This is the

  device setting status which indicates that configuration changes were made on FortiManager.

  -

  conf: in sync - This is the sync status which shows that the latest revision history is in sync with Fortigate's configuration.

  -

  cond: pending - This is the configuration status which says that configuration changes need to be installed. Most probably a retrieve was done in the past (dm: retrieved) updating the revision history DB (conf:in sync) and FortiManager device level DB, now there is a new modification on FortiManager device level DB (dev-db: modified) which wasn't installed to FortiGate (cond: pending), hence; revision history DB is not aware of that modification and doesn't match device DB.

  Conclusion:

  Revision DB does match FortiGate.

  No changes were installed to FortiGate yet.

  Device DB doesn't match Revision DB.

  No changes were done on FortiGate (auto-update) but configuration was retrieved instead After an Auto-

  Update or Retrieve:

  device database = latest revision = FGT

  Then after a manual change on FMG end (but no install yet):

  latest revision = FGT (still) but now device database has been modified (is different). After reverting to a

  previous revision in revision history:

  device database = reverted revision != FGT
