Fortinet Fortinet Certifications NSE5_FAZ-7.0 Questions & Answers

• Question 61:

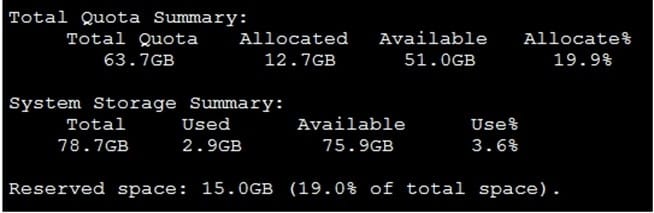

  View the exhibit.



  Why is the total quota less than the total system storage?

  A. 3.6% of the system storage is already being used.

  B. Some space is reserved for system use, such as storage of compression files, upload files, and temporary report files

  C. The oftpd process has not archived the logs yet

  D. The logfiled process is just estimating the total quota

  Correct Answer: B

  https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/368682/disk- space-allocation

• Question 62:

  You have recently grouped multiple FortiGate devices into a single ADOM. System Settings > Storage Info shows the quota used. What does the disk quota refer to?

  A. The maximum disk utilization for each device in the ADOM

  B. The maximum disk utilization for the FortiAnalyzer model

  C. The maximum disk utilization for the ADOM type

  D. The maximum disk utilization for all devices in the ADOM

  Correct Answer: D

  page 66 FortiAnalyzer_6.4_Study_Guide

• Question 63:

  When working with FortiAnalyzer reports, what is the purpose of a dataset?

  A. To provide the layout used for reports

  B. To define the chart type to be used

  C. To retrieve data from the database

  D. To set the data included in templates

  Correct Answer: C

  FortiAnalyzer_7.0_Study_Guide-Online pag. 257 Reference: https://docs2.fortinet.com/document/fortianalyzer/6.0.4/administration- guide/148744/creating-datasets

• Question 64:

  Which statement is true when you are upgrading the firmware on an HA cluster made up of two FortiAnalyzer devices?

  A. First, upgrade the secondary device, and then upgrade the primary device.

  B. Both FortiAnalyzer devices will be upgraded at the same time.

  C. You can enable uninterruptible-upgrade so that the normal FortiAnalyzer operations are not interrupted while the cluster firmware upgrades.

  D. You can perform the firmware upgrade using only a console connection.

  Correct Answer: A

  https://docs.fortinet.com/document/fortianalyzer/7.2.0/upgrade-guide/262607/upgrading-fortianalyzer-firmware

  >To upgrade firmware for a cluster, Fortinet recommends upgrading the HA secondary units first, followed by the HA primary unit last.

• Question 65:

  What is the purpose of a predefined template on the FortiAnalyzer?

  A. It can be edited and modified as required

  B. It specifies the report layout which contains predefined texts, charts, and macros

  C. It specifies report settings which contains time period, device selection, and schedule

  D. It contains predefined data to generate mock reports

  Correct Answer: B

  Reference: https://docs2.fortinet.com/document/fortianalyzer/6.0.8/administration- guide/618245/predefined-reports-templates-charts-and-macros

• Question 66:

  Which statements are true of Administrative Domains (ADOMs) in FortiAnalyzer? (Choose two.)

  A. ADOMs are enabled by default.

  B. ADOMs constrain other administrator's access privileges to a subset of devices in the device list.

  C. Once enabled, the Device Manager, FortiView, Event Management, and Reports tab display per ADOM.

  D. All administrators can create ADOMs--not just the admin administrator.

  Correct Answer: BC

• Question 67:

  Which two constraints can impact the amount of reserved disk space required by FortiAnalyzer? (Choose two.)

  A. License type

  B. Disk size

  C. Total quota

  D. RAID level

  Correct Answer: BD

  https://docs.fortinet.com/document/fortianalyzer/6.2.5/administration-guide/368682/disk- space-allocation

• Question 68:

  What FortiView tool can you use to automatically build a dataset and chart based on a filtered search result?

  A. Chart Builder

  B. Export to Report Chart

  C. Dataset Library

  D. Custom View

  Correct Answer: A

  Keyword is Fortiview feature. Chart Builder is in Log view and the export to report chart is in the fortiview. they are both similar just generated in different areas.

• Question 69:

  FortiAnalyzer uses the Optimized Fabric Transfer Protocok (OFTP) over SSL for what purpose?

  A. To upload logs to an SFTP server

  B. To prevent log modification during backup

  C. To send an identical set of logs to a second logging server

  D. To encrypt log communication between devices

  Correct Answer: D

• Question 70:

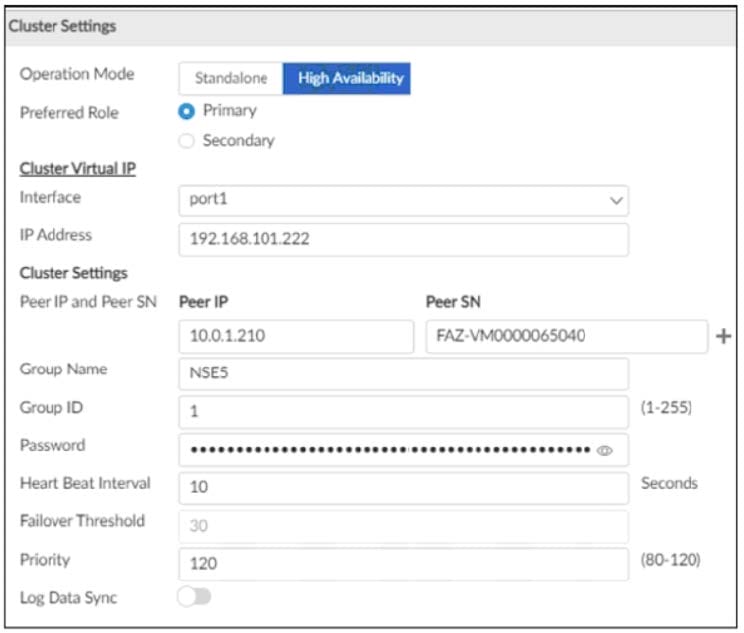

  Refer to the exhibit.



  The image displays the configuration of a FortiAnalyzer the administrator wants to join to an existing HA cluster. What can you conclude from the configuration displayed?

  A. This FortiAnalyzer will join to the existing HA cluster as the primary.

  B. This FortiAnalyzer is configured to receive logs in its port1.

  C. This FortiAnalyzer will trigger a failover after losing communication with its peers for 10 seconds.

  D. After joining to the cluster, this FortiAnalyzer will keep an updated log database.

  Correct Answer: B

  If the preferred role is Primary, then this unit becomes the primary unit if it is configured first in a new HA cluster. If there is an existing primary unit, then this unit becomes a secondary unit.
