NetApp NS0-520 Online Practice Questions and Exam Preparation

NetApp NS0-520 Online Questions & Answers

• Question 121:

  What are two examples of supported NetApp FC configurations? (Choose two.)

  A. a single NetApp node directly connected to a single host
  B. a single switched environment with a NetApp node connected to only one host
  C. a dual switched environment with a NetApp node connected to multiple hosts
  D. a single NetApp node directly connected to multiple hosts
  B. a single switched environment with a NetApp node connected to only one host
  C. a dual switched environment with a NetApp node connected to multiple hosts

• Question 122:

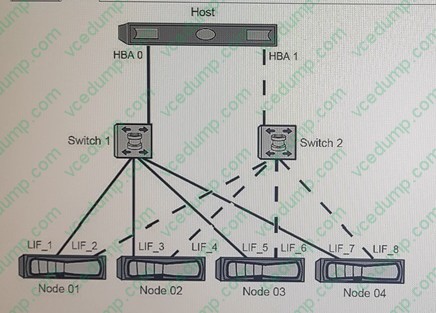

  Exhibit.



  A customer has an AFF A200 with a LUN residing in a volume by Node 4. The default Selection Mapping settings are effect. During a planned takeover cluster test, Node 3 performs a take over of Node 4. Referring to the exhibit, what is the expected number of paths seen from the host?

  A. 6
  B. 8
  C. 4
  D. 2
  A. 6

• Question 123:

  You want to create an additional SVM from the System Manager GUI to serve data only using block-based protocols. You know the SVM name, the aggregate containing the root volume, and the required protocols. What other information is required to successfully create this SVM?

  A. name servers
  B. SVM Management LIF network details
  C. search domains
  D. root volume security style
  D. root volume security style

• Question 124:

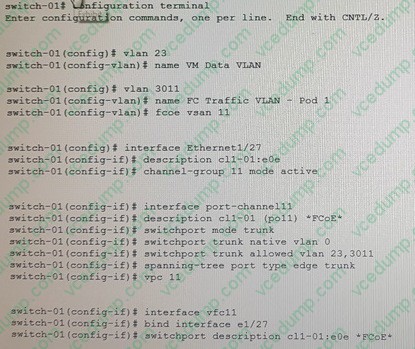

  Exhibit.



  An administrator is configuring FCoE on Cisco Nexus switches for a new AFF A200 ONTAP cluster. The administrator executes the commands shown in the exhibit to create the necessary network configuration.

  Which VLAN is responsible for controlling the FCoE traffic on the new interface?

  B. 3011
  C. 23
  D. 11
  B. 3011

• Question 125:

  A company wants to use jumbo frames to improve performance with their iSCSI network. When setting up the Ethernet switches for jumbo frames, which three components need to be configured? (Choose three.)

  A. Ethernet port on Management Console
  B. Ethernet port on RLM
  C. Ethernet port on host system
  D. Ethernet port on storage device
  E. Ethernet port on FC switch
  F. Ethernet switch ports being used
  C. Ethernet port on host system
  D. Ethernet port on storage device
  F. Ethernet switch ports being used

• Question 126:

  Which four FC fabric topologies does NetApp support? (Choose four.)

  A. four FC switches with multiple Inter-Switch Links (ISLs) between each pair of switches
  B. ten FC switches per fabric, daisy chained with a single ISL between switches
  C. four FC switches with multiple ISLs between ALL switches
  D. eight FC switches with no more than a single ISL between switches in a cascade topology
  E. dual FC switches with no ISLs
  F. a single FC switch
  G. a switched fabric that has 65537 ports
  A. four FC switches with multiple Inter-Switch Links (ISLs) between each pair of switches
  C. four FC switches with multiple ISLs between ALL switches
  E. dual FC switches with no ISLs
  F. a single FC switch

• Question 127:

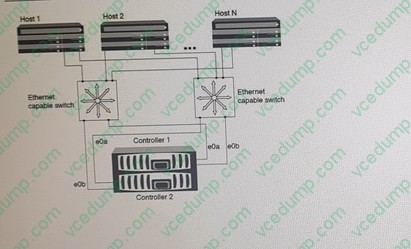

  Exhibit.



  Referring to the exhibit. What are two viable scenarios to test LUN multipathing on Host 1? (Choose two.)

  A. Reboot one of the switches.
  B. Disable one of the FC LIFs on Controller 1.
  C. Disconnect one of the host cables.
  D. Reboot Host 1.
  A. Reboot one of the switches.
  C. Disconnect one of the host cables.

  ---

  Explanation/Reference:

• Question 128:

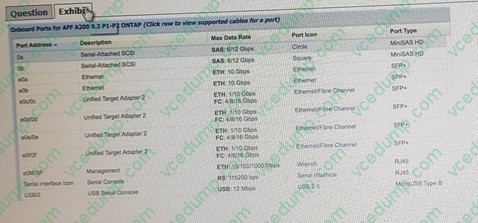

  Exhibit.



  An administrator has an AFF A200 HA pair.

  Referring to the exhibit, how many 10 Gbps connections would the customer have on a single node for SAN host connectivity?

  A. 4
  B. 6
  C. 7
  D. 2
  A. 4

• Question 129:

  While expanding a 200 GB LUN in an ONTAP 9.4 system, the following error is observed:



  What is the cause of this error?

  A. The volume auto-grow is disabled.
  B. The LUN reached maximum capacity.
  C. The LUN can be expanded up to 10 times its original size.
  D. Space reservation is enabled.
  A. The volume auto-grow is disabled.

• Question 130:

  Exhibit.



  You need to configure the SnapCenter Plug-in for VMware vSphere to back up and restore VMware datastores. Referring to the exhibit, which additional LIF type should you create before you configure the plug-in?

  A. intercluster
  B. node management
  C. SVM management
  D. cluster management
  C. SVM management
