NetApp NCIE SAN E-Series NS0-515 Questions & Answers

• Question 31:

  Which three documents should be provided to the customer after the E-Series installation is complete? (Choose three.)

  A. a document showing how much space is available for system expansion

  B. a document showing the cabinet layout with cabling information and IP addresses being used

  C. a document showing user IDs and passwords for all deployed devices

  D. a document with IMT pages that show the supported host configuration and fabric switches in the solution

  E. a document showing available power on the UPS with no equipment connected

  Correct Answer: BCE

• Question 32:

  A customer has an E5760 array with a 30-drive Dynamic Disk Pool (DDP) that uses 800 GB SSD drives. The customer needs to expand the pool by one drive but has only a 1.6 TB SSD drive available.

  In this scenario, what happens when the customer attempts to add the 1.6 TB drive to the existing pool?

  A. The pool is expanded by 1.6 TB

  B. The pool is expanded by 1.6 TiB

  C. The pool is expanded by 800 GB

  D. An error occurs, and the add fails

  Correct Answer: A

• Question 33:

  You want to find detailed information about the devices that are connected to the Brocade switch. In this scenario, which command would accomplish this goal?

  A. portloginshow

  B. zoneshow

  C. nsshow

  D. switchshow

  Correct Answer: A

  Reference: https://jp.fujitsu.com/platform/server/primergy/products/note/other/FOS_CmdRef_v720.pdf

  (849)

• Question 34:

  An E2812 system, without expansion shelves, is configured with 12 Gb SAS host interface cards (HICs) and is directly connected to a host. However, the host cannot access the volumes.

  In this scenario, which two troubleshooting steps should you take? (Choose two.)

  A. Verify that the host can ping the E2812 system over the SAS link

  B. Verify that the E2812 host port SAS link up lights are illuminated

  C. Verify that the E2812 SAS CHAP secret is set D. Verify that the correct SAS ports are in use on the E2812 system

  Correct Answer: BD

• Question 35:

  An administrator is asked to create an asynchronous mirroring environment that supports multiple mirroring relationships, each with different recovery point objectives (RPOs).

  In this scenario, how does the administrator create this environment?

  A. The administrator creates a mirror group with the appropriate RPOs

  B. The administrator creates multiple mirror pairs, each with their own schedule and RPO

  C. The administrator creates a single consistency group with multiple RPOs

  D. The administrator creates multiple mirror consistency groups with the appropriate RPOs

  Correct Answer: A

  Reference: https://www.netapp.com/us/media/tr-4656.pdf

• Question 36:

  Click the Exhibit button.



  Referring to the exhibit, what is the total number of ALUA paths from the host to a volume on the EF280?

  A. 8

  B. 6

  C. 2

  D. 4

  Correct Answer: D

  Reference: https://www.netapp.com/us/media/tr-4727.pdf

• Question 37:

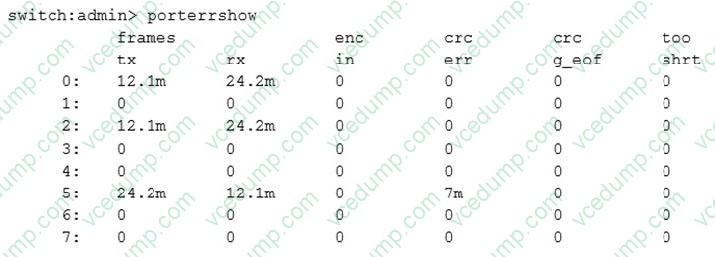

  Click the Exhibit button.



  Referring to the exhibit, what is the reason for the errors that are shown on port 5 on the switch of one of the fabrics?

  A. protocol errors, encoding errors, or conversion errors

  B. faulty SFPs, cables, or patch panels

  C. twisted cables, wrong plugs, or cable material

  D. wrong switch configuration

  Correct Answer: A

• Question 38:

  A customer is configuring an EF570 system on an internal network. Due to security concerns, the network does not have Internet access. The customer wants to regularly send standard support data to NetApp.

  In this scenario, what should the customer do to accomplish this task?

  A. Enable AutoSupport with a set interval and with the store locally option selected, manually move the data to a server with Internet access, and then send the data to NetApp.

  B. Open a support ticket with NetApp to enable AutoSupport local functionality, manually move the data to a server with Internet access, and then send the data to NetApp.

  C. Set up a script to initiate Collect Support Data on a set interval, manually move the data to a server with Internet access, and then send the data to NetApp.

  D. Set up a script to initiate Collect Support Data, remove the extra log files, manually move the data to a server with Internet access, and then send the data to NetApp.

  Correct Answer: A

  Reference: https://library.netapp.com/ecm/ecm_download_file/ECMLP2502818

• Question 39:

  An orphaned volume occurs during an asynchronous mirror implementation. You must recover the orphaned volume.

  In this scenario, which statement is correct?

  A. Remove the mirroring relationship on the orphan, then re-create the mirroring relationship

  B. Suspend mirroring operations on the orphan, then resume operations

  C. Deactivate the mirror consistency group that contains the orphan, then re-enable the group

  D. Perform a role change on the orphan, then re-create the mirroring relationship

  Correct Answer: A

  Reference: https://library.netapp.com/ecm/ecm_download_file/ECMP1394847

• Question 40:

  Where would you find the version of the driver and firmware for QLogic HBAs that are supported by NetApp E-Series systems?

  A. Interoperability Matrix Tool

  B. SANtricity Admin Guide

  C. Hardware Universe

  D. QLogic download webpage

  Correct Answer: D
