NetApp NCIE SAN E-Series NS0-515 Questions & Answers

• Question 21:

  Your AutoSupport does not automatically send reports to NetApp's ActiveIQ tool.

  In this scenario, how do you access the data that would have been sent using the AutoSupport feature?

  A. Use SANtricity Unified Manager to collect the support data remotely

  B. Access the event log by using SANtricity System Manager

  C. Use SANtricity System Manager to manually collect the support data

  D. Ask NetApp Support to help you to access the data by using special support tools

  Correct Answer: C

  Reference: https://mysupport.netapp.com/NOW/public/eseries/sam_archive1150/index.html

• Question 22:

  Click the Exhibit button.

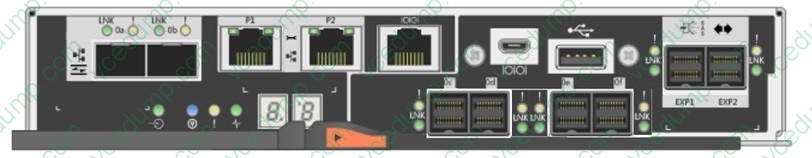

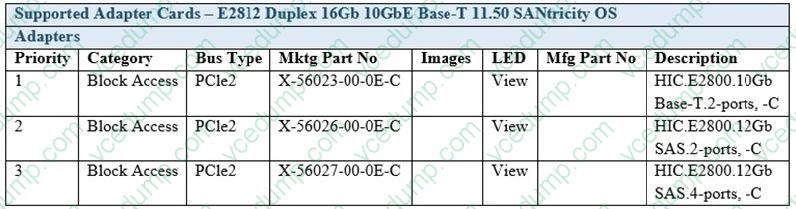

  You ordered a NetApp E2812 Duplex 16GB 10 GbE Base-T system. Referring to the exhibit, what is the maximum number of 10GbE Base-T ports available to be used?

  A. 8

  B. 4

  C. 6

  D. 12

  Correct Answer: B

• Question 23:

  A customer has launched a data analytics initiative and has been transferring old data into the new data lake. The customer has discovered some data read errors during the transfer process.

  In this scenario, how should the customer have avoided these data integrity issues?

  A. by ensuring that data assurance and media scan are always activated

  B. by deploying secure-capable drives

  C. by turning on cyclic redundancy checks (CRCs)

  D. by turning on erasure coding

  Correct Answer: A

• Question 24:

  Click the Exhibit button.



  Referring to the exhibit, what would you select in the search list to see all of the host selections for NetApp E-Series storage systems?

  A. Storage OS

  B. SANtricity

  C. E-Series SAN Host

  D. E-Series Controller Firmware

  Correct Answer: C

  Reference https://www.google.com/url? sa=tandrct=jandq=andesrc=sandsource=webandcd=1andved=2ahUKEwirltOiyqvnAhVhu3EKHcUrBjsQFjAAegQIAhABand url=https%3A%2F%2Fcommunity.netapp.com%2Ffukiw75442%2Fattachments% 2Ffukiw75442%2Feseries-santricity-and-related-plug-ins-discussions%2F557%2F1%2FIMT_ESeries_SAN_Host_20180424_090321201.pdfandusg=AOvVaw1LNpV6vBUxZXiyfgdcnlSz

• Question 25:

  Which alerting method would be configured using the SANtricity System Manager setup wizard?

  A. Syslog

  B. SNMP

  C. Web Services Proxy

  D. Email

  Correct Answer: B

  Reference: https://docs.oracle.com/cd/E19298-01/CRCM1573/CRCM1573.pdf

• Question 26:

  Which two steps are required to enable multifactor authentication on an E-Series system? (Choose two.)

  A. Test SSO login

  B. Configure In-Band Management

  C. Map roles

  D. Configure LDAP

  Correct Answer: AB

  Reference: https://www.netapp.com/us/media/tr-4712.pdf

• Question 27:

  Which iSCSI setting would you change from its default value to increase the throughput of an iSCSI host port on a NetApp E-Series system?

  A. maximum transmission unit (MTU)

  B. flow control

  C. Challenge-Handshake Authentication Protocol (CHAP)

  D. Time to Live (TTL)

  Correct Answer: A

  Reference: https://www.netapp.com/us/media/tr-3409.pdf

• Question 28:

  The NetApp E-Series system with a 32 Gb FC Host Interface Card (HIC) requires which type of fiber cable to connect to switches or to connect directly to hosts extending up to 100 meters?

  A. OM4

  B. OM3

  C. OM1

  D. OM2

  Correct Answer: B

  Reference: https://library.netapp.com/ecm/ecm_download_file/ECMLP2773537

• Question 29:

  When a drive fails in a Dynamic Disk Pool (DDP) with no free capacity, what happens to the data?

  A. It is rebuilt using the on-board backup database

  B. It is rebuilt using preservation capacity within the DDP

  C. It is evacuated to the preservation capacity within the DDP

  D. It is evacuated to a hot spare drive that is assigned to the DDP

  Correct Answer: B

  Reference: https://www.netapp.com/us/media/tr-4652.pdf (6)

• Question 30:

  Your company has an E-Series system connected to Cisco MDS switches. You are asked to provision a volume on a new Windows host, but the Windows host is unable to connect to the volume on the E-Series system. All other Windows hosts in the fabric are able to connect to their volumes.

  In this scenario, which three actions should you perform to accomplish this task? (Choose three.)

  A. Create a new virtual SAN (VSAN)

  B. Obtain the WWPN for the Windows HBA

  C. Restart the switches

  D. Create a single-initiator zone with the host and E-Series system

  E. Add a zone to the active zoneset

  Correct Answer: BCE
