NetApp NS0-193 Online Practice Questions and Exam Preparation

NetApp NS0-193 Online Questions & Answers

• Question 11:

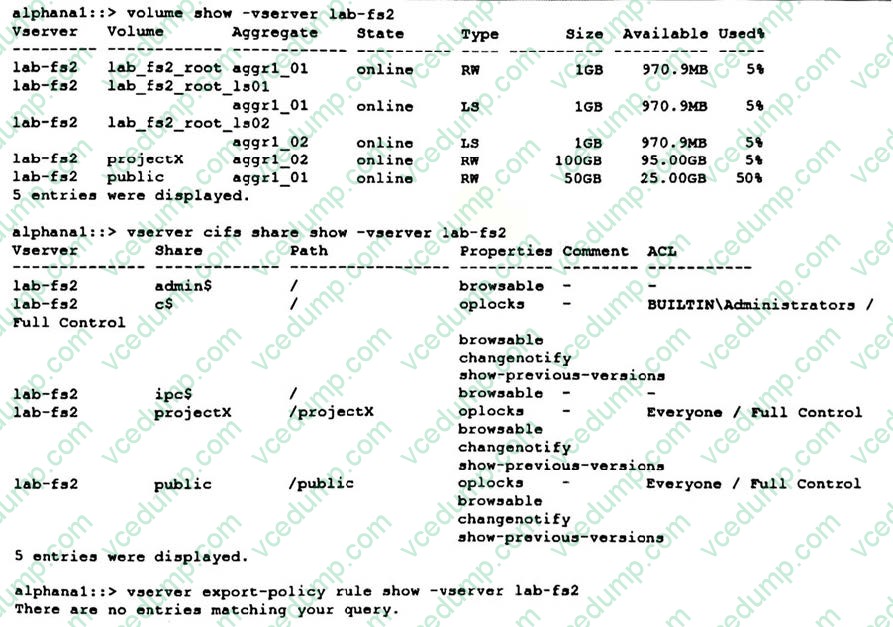

  Click the Exhibit button.



  You create a new CIFS share named projectX. Users are unable to see the new share. However, they can see and access the existing share named public. Referring to the exhibit, what should you do to allow users to access the new projectX share?

  A. Move the projectX volume to aggr1_01.
  B. Modify the projectX share permissions to allow access.
  C. Create an export policy rule to allow access.
  D. Update the load sharing mirror set.
  C. Create an export policy rule to allow access.

• Question 12:

  You want to aggregate throughput for a single LIF across several physical ports.

  In this scenario, which two ONTAP features would accomplish this goal? (Choose two.)

  A. broadcast domains
  B. unified target ports
  C. interface groups
  D. virtual IP (VIP) LIFs
  C. interface groups
  D. virtual IP (VIP) LIFs

  ---

  Reference: https://docs.netapp.com/ontap-9/topic/com.netapp.doc.dot-cm-nmg/GUID-A8EF6D34-1717-4813-BBFA-AA33E104CF6F.html https://library.netapp.com/ecmdocs/ECMP1401193/html/GUID-DBC9DEE2-EAB7-430A-A7734E3420EE2AA1.html

• Question 13:

  You provision a new ONTAP volume to use as a VMware vSphere NFS datastore. You successfully mount the volume to the vSphere (ESXi) hosts, and you can read, write, and delete small (less than 1 KB) test files. However, you cannot upload large files or Storage vMotion VMs to the new datastore. You verify that the volume is reporting adequate free space.

  Which action should you perform to troubleshoot this problem?

  A. Verify that the NFS LIF is on its home port.
  B. Verify the MTU configuration along the network path.
  C. Verify that the security style is set correctly on the volume.
  D. Verify that the export policy is correct for the volume.
  B. Verify the MTU configuration along the network path.

  ---

  Reference: https://kb.vmware.com/s/article/1003967

• Question 14:

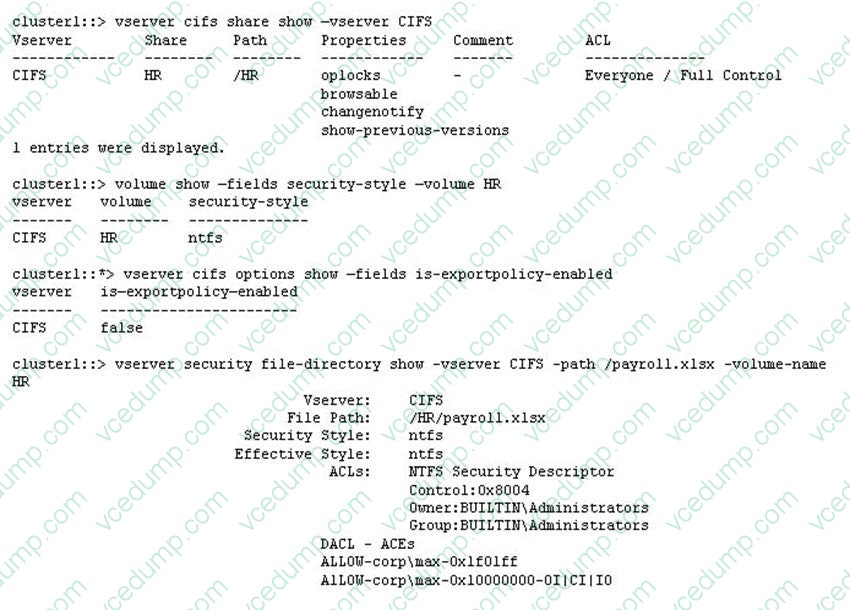

  Click the Exhibit button.



  The corp\eva user cannot access the payroll.xlsx file on the CIFS share that is called HR. The user is a member of the corp\Domain Users group only. Referring to the exhibit, what is the problem?

  A. The user has no permission to access this share.
  B. The user has no NTFS permissions for that file.
  C. The security style is not set correctly.
  D. The export policy is disabled.
  A. The user has no permission to access this share.

• Question 15:

  Users are unable to view the Previous Versions tab for an SMB share on an ONTAP 9.3 cluster. What are two reasons for this problem? (Choose two.)

  A. The show-previous-versions parameter is not set on the SMB share.
  B. The volume's snapshot-reserve is set to 0%.
  C. The volume's snapdir-access parameter is not set to true.
  D. The users do not have the correct share permissions.
  A. The show-previous-versions parameter is not set on the SMB share.
  C. The volume's snapdir-access parameter is not set to true.

  ---

  Reference: https://kb.netapp.com/app/answers/answer_view/a_id/1005263/~/enabling-the-windows-explorer-previous-versions-tab-in-ontap-

• Question 16:

  Click the Exhibit button.



  The 0f FCP port is not showing up in the list of FC/FCoE and NVMe adapters as shown in the exhibit. What is the problem in this situation?

  A. The 0f FCP port is configured as a target port, but it is not connected to a switch.
  B. The 0f FCP port is configured as a CAN port for FCoE.
  C. The 0f FCP port is configured as an initiator.
  D. The 0f FCP port is configured as a target port, but no SFP+ is installed.
  A. The 0f FCP port is configured as a target port, but it is not connected to a switch.

• Question 17:

  When using the storage aggregate show command, what are three valid RAID status states? (Choose three.)

  A. normal
  B. unknown
  C. mirror degraded
  D. offline
  E. reconstructing
  B. unknown
  D. offline
  E. reconstructing

  ---

  Reference: https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-cmpr-910%2Fstorage__disk__show.html

• Question 18:

  Which sequence of actions should you perform after replacing a memory DIMM?

  A. From the loader prompt, start diagnostics mode.
  B. From the special boot menu, select option 6, Update flash, from the backup configuration.
  C. From the special boot menu, select option 4, Clean configuration, and initialize all disks.
  D. From the loader prompt, boot the backup image.
  A. From the loader prompt, start diagnostics mode.

  ---

  Reference: https://library.netapp.com/ecm/ecm_download_file/ECMP1119134

• Question 19:

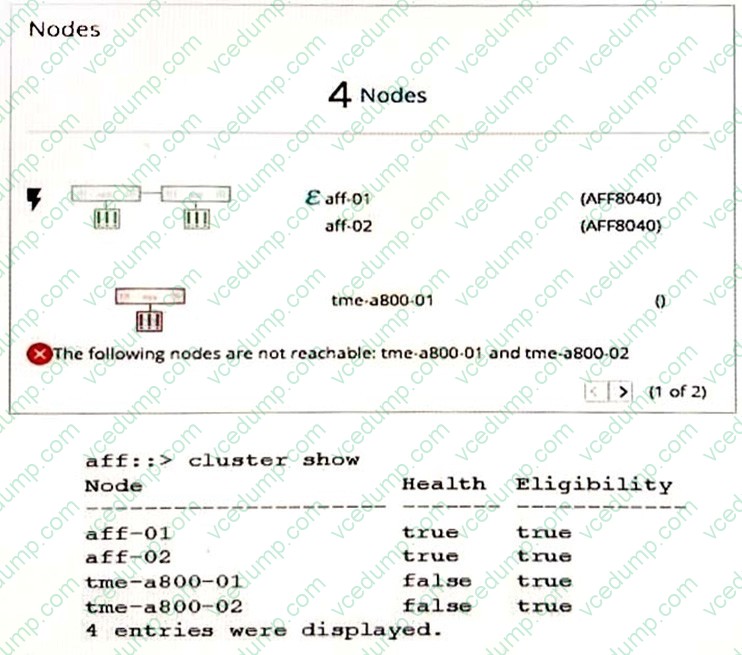

  Click the Exhibit button.



  The exhibit shows the Nodes section of OnCommand System Manager from ONTAP 9.5 and the output of the cluster show command. Referring to the exhibit, which two statements are correct about the tme-a800-01 and tme-a800-02 nodes? (Choose two.)

  A. The two nodes have lost their connections to the cluster network.
  B. The two nodes are both powered down.
  C. The two nodes have failed over to the AFF-01 and AFF-02 nodes.
  D. The two nodes have been unjoined from the cluster.
  A. The two nodes have lost their connections to the cluster network.
  B. The two nodes are both powered down.

• Question 20:

  Some users are unable to open certain files on an ONTAP SMB share. You verify that the users are able to open other files on the share. Which action should you perform to troubleshoot this issue?

  A. Validate network connectivity from the users to the NetApp cluster.
  B. Check the share-level permissions.
  C. Check the access-based enumeration settings.
  D. Perform a security trace.
  B. Check the share-level permissions.

  ---

  Reference: https://kb.netapp.com/app/answers/answer_view/a_id/1071815/~/troubleshooting-cifs-or-smb-access-denied-
