Mulesoft MCD-LEVEL1 Online Practice Questions and Exam Preparation

Mulesoft MCD-LEVEL1 Online Questions & Answers

• Question 201:

  What is minimal requirement in a flow for a Mule application to compile?

  A. Event Source
  B. Event Processors
  C. Error handlers
  D. Source and processors both
  B. Event Processors

  ---

  Explanation/Reference:

  Process section is must to get compiles. Process section must have one or more processors



• Question 202:

  Refer to the exhibits.



  The Validation component in the private flow throws an error. What response message is returned to a client request to the main flow's HTTP Listener?

  A. Error - private flow
  B. Error - main flow C. Success - main flow
  D. Validation Error
  B. Error - main flow C. Success - main flow

  ---

  Explanation/Reference:

  Error in validation component will get processed by Processer level On Error Propagate block and then error will be rethrown which will get processed by flow level error handler which will set payload to "Error- main flow". Hence correct answer is Error - main flow 1) Request is received by HTTP listener 2) Try scope gets executed 3) The validator component in the Try scope creates an Error Object because the payload is not null. 4) The On Error Propagate handles the error. The payload is set to "Error ?Try scope" 6) "Error ?Try scope" is returned to the 'On Error Continue' block. Main flow execution stops. Payload is set to "Error - main flow" 7) "Error - main flow" is returned to the requestor in the body of the HTTP request. HTTP Status Code: 200 ------------------------------------------------------------------------------------------------------------------------- ----------------- Reference Diagram though not exactly same, conditions are similar. They will help you answer any new question on error handling in real exam:



• Question 203:

  Which of the below is used by Mule application to manage dependencies which make sharing the projects lightweight and easier?

  A. Configuration file
  B. Global element
  C. POM.xml
  D. Cloudhub
  C. POM.xml

  ---

  Explanation/Reference:

  POM.xml contains info about the project and configurationn details used by Maven to build the project

• Question 204:

  Refer to the exhibits.



  The Set Payload transformer In the addltem subflow uses DataWeave to create an order object.

  What is the correct DataWeave code for the Set Payload transformer in the createOrder flow to use the addltem subflow to add a router cable with the price of 100 to the order?

  A. addltemf { payload: { price: "100", item: "router", itemType: "cable" } > )
  B. lookupf "addltem", { payload: { price: "100", item: "router", itemType: "cable" } } )
  C. addltemf { price: "100", item: "router", itemType: "cable" })
  D. lookupf "addltem", { price: "100", item: "router", itemType: "cable" } )
  B. lookupf "addltem", { payload: { price: "100", item: "router", itemType: "cable" } } )

• Question 205:

  Refer to the exhibit. This RAML fragment defines a Book data type that is used in a RAML API specification.



  An API implementation is created for this RAML API specification.

  What is valid JSON input for a request from a web client to an implementation of this RAML API specification?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  A. Option A

  ---

  Explanation/Reference:

• Question 206:

  How would you debug Mule applications?

  A. By Deploying apps on production
  B. Checking RAML specifications
  C. Using debugger component
  D. Use third party debugger application
  C. Using debugger component
  D. Use third party debugger application

• Question 207:

  An API has been created in Design Center. What is the next step to make the API discoverable?

  A. Publish the API to Anypoint Exchange
  B. Publish the API from inside flow designer
  C. Deploy the API to a Maven repository
  D. Enable autodiscovery in API Manager
  A. Publish the API to Anypoint Exchange

  ---

  Explanation/Reference:

  Correct answer is Publish the API to Anypoint Exchange Anypoint Exchange makes this possible by making it discoverable in below ways 1) In private exchange for internal developers 2) In a public portal for external developers/clients Here is diagram created by me to help you understand sequence:



• Question 208:

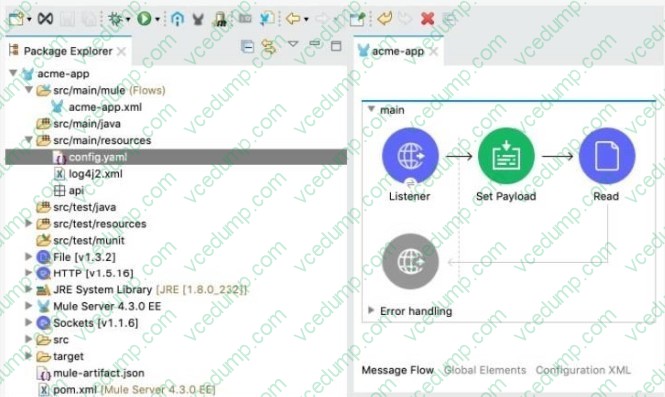

  Refer to the exhibit.



  The Mule application's connectors are configured with property placeholders whose values are set in the config.yaml file What must be added to the Mule application to link the config.yaml file's values with the property placeholders?

  A. A configuration-properties element in the acme-app xml file
  B. A dependency element in the pom xml file
  C. A file-config element in the acrne-app xml file
  D. A propertiesFile key/value pair in the mule-artifact json file
  A. A configuration-properties element in the acme-app xml file

• Question 209:

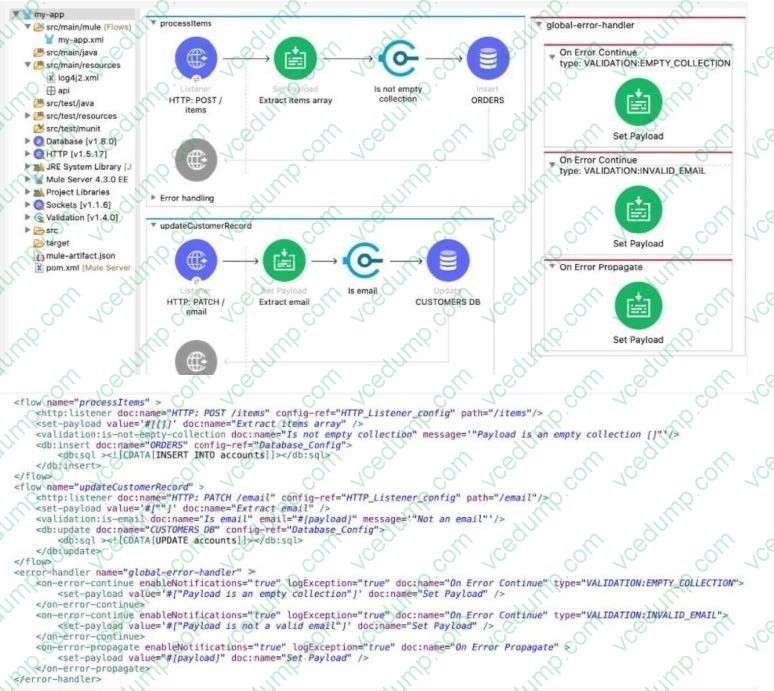

  Refer to the exhibits.



  The my-app xml file contains an Error Handier scope named "global-error-handler"

  The Error Handler scope needs to be set to be the default error handler for every flow in the Mule application

  Where and how should the value "global-error-handler" be added in the Mule project so that the Error Handler scope is the default error handler of the Mule application?

  A. In the mule-artifact json file, as the value of a key-value pair
  B. In the Validation folder as the value of a global element in the error-handling yaml file
  C. In the pom.xml file, as the value of a global element
  D. In the my-app.xml file, as an attribute of a configuration element
  D. In the my-app.xml file, as an attribute of a configuration element

• Question 210:

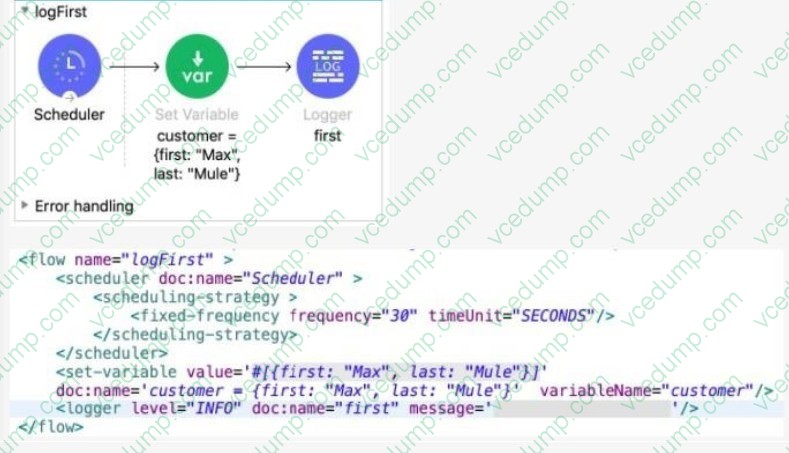

  Refer to the exhibits.



  The Set Variable transformer is set with value #[ [ first "Max" last "Mule"} ].

  What is a valid DataWeave expression to set as the message attribute of the Logger to access the value "Max" from the Mule event?

  A. vars "customer first"
  B. "customer first"
  C. customer first
  D. vars "customer" "first"
  D. vars "customer" "first"
