Mulesoft MCD-LEVEL1 Online Practice Questions and Exam Preparation

Mulesoft MCD-LEVEL1 Online Questions & Answers

• Question 121:

  A Mule application contains an ActiveMQ JMS dependency. The Mule application was developed in Anypoint Studio and runs successfully in Anypoint Studio. The Mule application must now be exported from Anypoint Studio and shared with another developer.

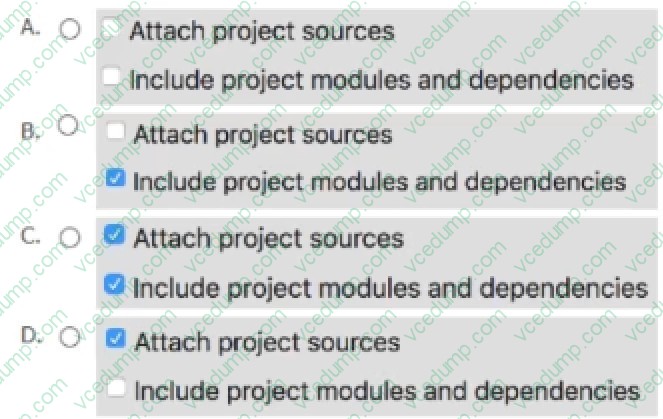

  What export options create the smallest JAR file that can be imported into the other developer's Anypoint Studio and run successfully?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 122:

  What are the latest specification of RAML available?

  A. 1.2
  B. 1
  C. 0.8
  D. 2
  B. 1

  ---

  Explanation/Reference:

  The current version of the RAML specification is 1.0

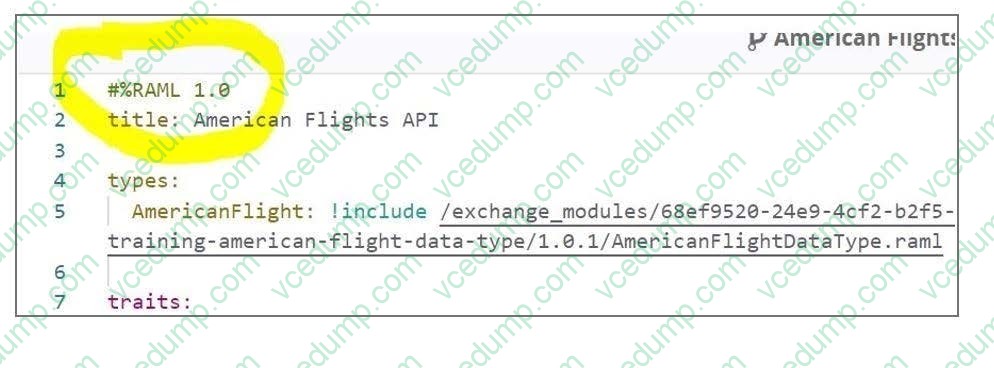

  You can check RAML version in RAML definition by referring to first comment. See highlighted part in below image.



• Question 123:

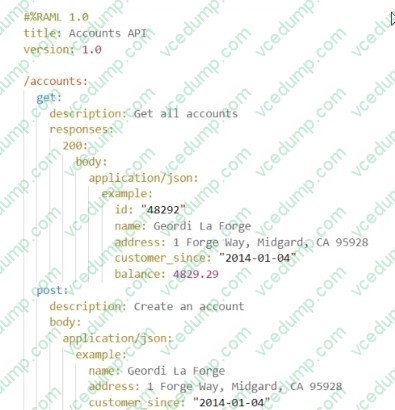

  Refer to the exhibit.

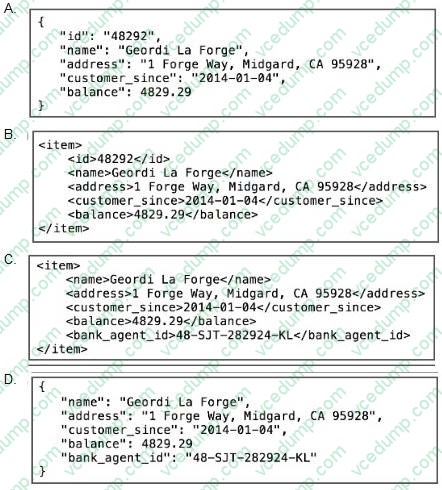

  What data is expected by the POST /accounts endpoint?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

• Question 124:

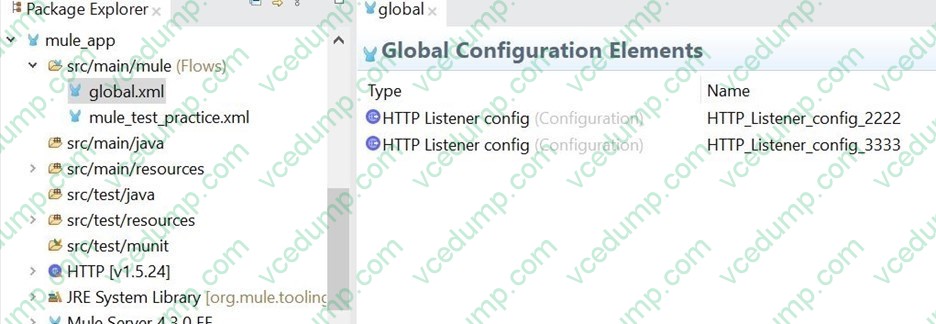

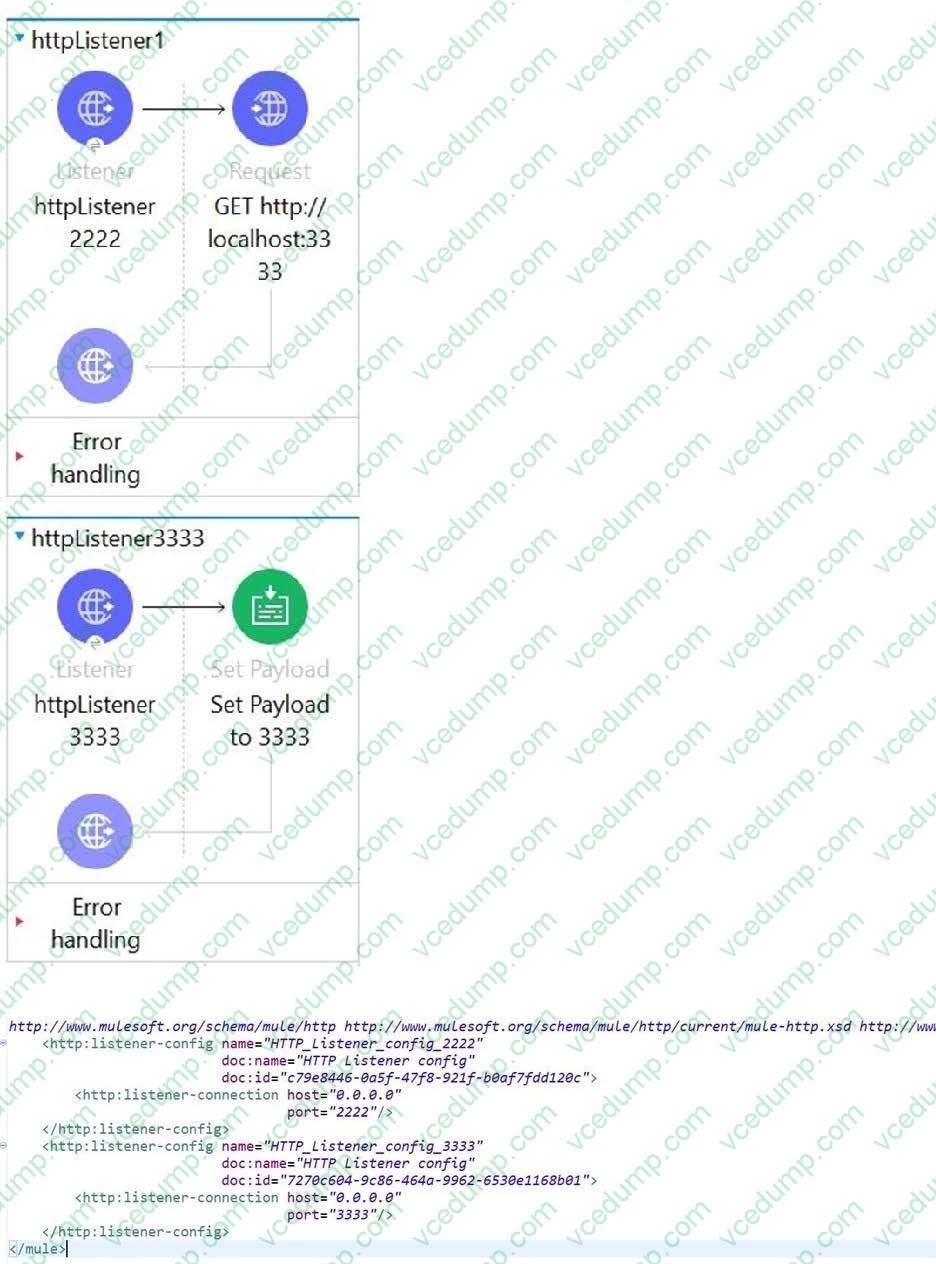

  Refer to the exhibits.





  The Mule application configures and uses two HTTP Listener global configuration elements.

  Mule application is run in Anypoint Studio.

  If the mule application starts correctly, what URI and port numbers can receive web client requests? If the mule applications fails to start , what is the reason for the failure?

  A. The mule application fails to start There is URL path conflict because both HTTP Listeners are configured with same path
  B. The mule application start successfully Web client requests can only be received at URI on port 2222 but not on port 3333
  C. The mule application fails to start because of the port binding conflict as HTTP request also use same port i.e. 3333
  D. The mule application start successfully Web client requests can be received at URI on port 2222 and on port 3333.
  D. The mule application start successfully Web client requests can be received at URI on port 2222 and on port 3333.

  ---

  Explanation/Reference:

  In this case both the flows can start without any error and requests can be received on both ports. Flow names httpListener1 can call other flow using HTTP request without any issues.

• Question 125:

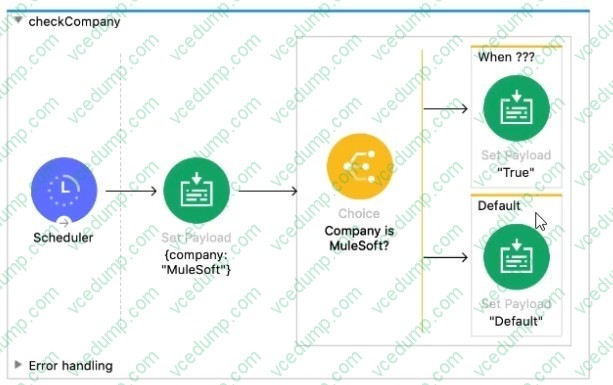

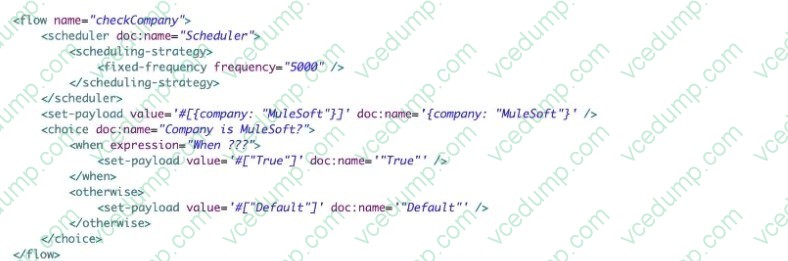

  Refer to the exhibits.





  The expression for the Choice router needs to be written.

  What is a valid expression to route Mule events to the non-default flow?

  A. #['MuleSoft' == paytoad.company]
  B. #[ company = "MuleSoft" ]
  C. #[ if( company = "MuleSoft") ]
  D. #[ if( 'MuleSoff == payload.company) ]
  A. #['MuleSoft' == paytoad.company]

• Question 126:

  What is output of Dataweave flatten function?

  A. Object
  B. Map
  C. Array
  D. LInkedHashMap
  C. Array

  ---

  Explanation/Reference:

  Correct answer is Array.

  Flatten turns a set of subarrays (such as [ [1,2,3], [4,5,[6]], [], [null] ]) into a single, flattened array (such as [ 1, 2, 3, 4, 5, [6], null ]). This example defines three arrays of numbers, creates another array containing those three arrays, and then

  uses the flatten function to convert the array of arrays into a single array with all values.

  Source

  %dw 2.0

  output application/json

  var array1 = [1,2,3]

  var array2 = [4,5,6]

  var array3 = [7,8,9]

  var arrayOfArrays = [array1, array2, array3]

  flatten(arrayOfArrays) Output [ 1,2,3,4,5,6,7,8,9 ]

• Question 127:

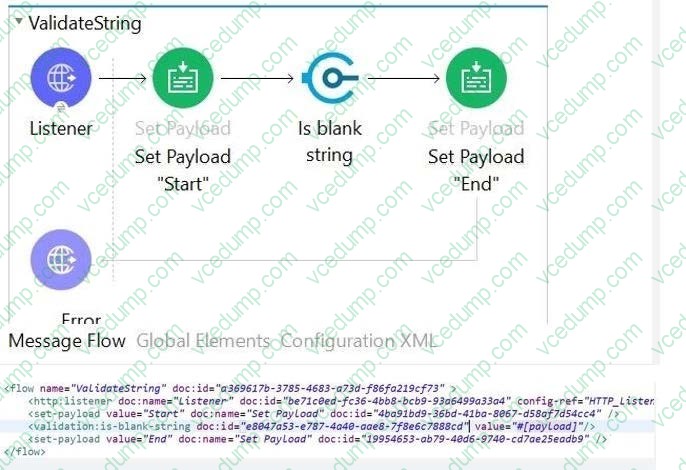

  Refer to the exhibits.



  A web client submits the request to the HTTP Listener. What response message would be returned to web client?

  A. End
  B. String is not blank
  C. No response would be sent back to client and request will get errored out in Mule
  D. Start
  B. String is not blank

  ---

  Explanation/Reference:

  Correct answer is String is not blank.

  ------------------------------------------------------------------------------------------------------------------------- ------------------------ Here's specifically what is happening here:

  1) Payload is successfully set to "Start"

  2) The Is Blank String validator creates an Error Object because the payload is string "Start". Execution stops

  #[error.description] = "String is not blank"

  3) Because no error handler is defined, the Mule default error handler handles the error. Remember, at its heart, the Mule Default Error handler is an error handling scope with just an on error propagate

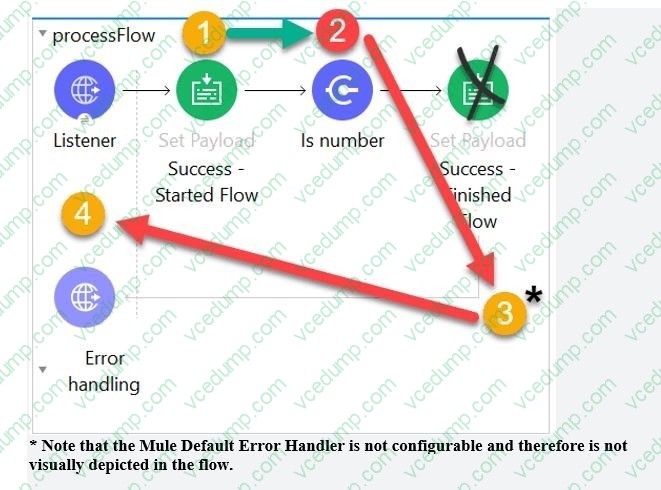

  4) "String is not blank" is the error message returned to the requestor in the body of the HTTP requestHTTP Status Code: 500 Reference Diagram:



• Question 128:

  What is the trait name you would use for specifying client credentials in RAML?

  A. headers
  B. client-id
  C. client-id-required
  D. cannot be specified in RAML
  C. client-id-required

  ---

  Explanation/Reference:

  client-id-required enforces clients to add client_id and client_secret.

  Please refer to below steps.

  Add a section called traits: at the root level to define query parameters:

  traits:

  -client-id-required:

  queryParameters:

  client_id:

  type: string

  client_secret:

  type: string

  2) Reference the trait in each of the methods to specify that each of the methods require these query parameters. After each method in the RAML file, add is:

  [client-id-required]. For example:

  /users:

  get:

  is: [client-id-required]

  description: Gets a list of JSONPlaceholder users.

• Question 129:

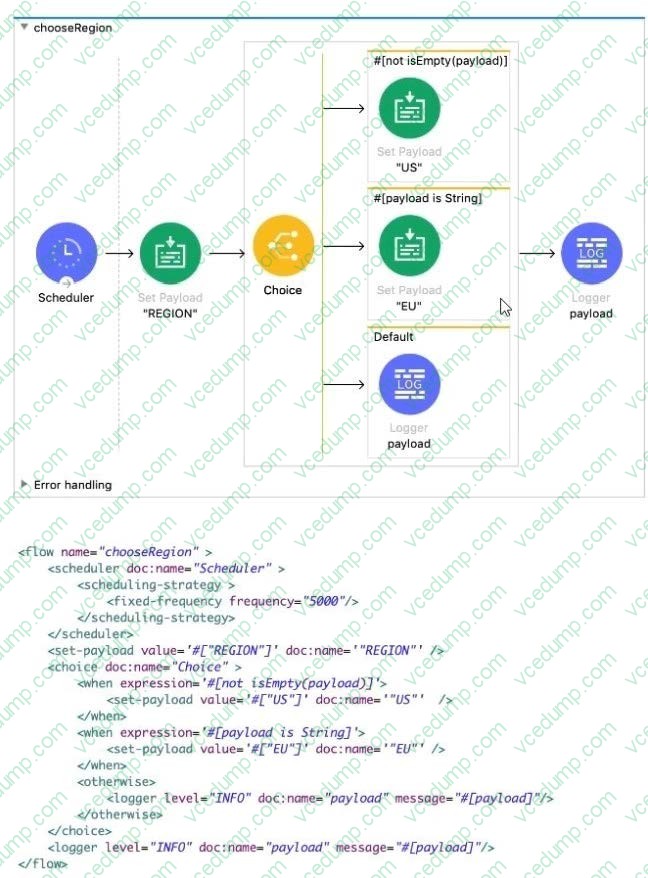

  Refer to the exhibits.



  A Mule application contains a Choice router. What is logged when the flow completes?

  A. EU
  B. US
  C. "REGION"
  D. ["US", "EU"]
  B. US

• Question 130:

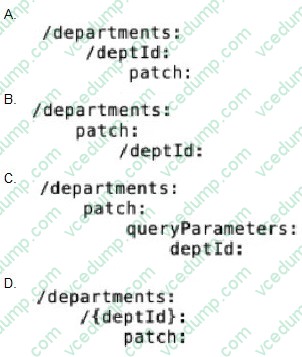

  A company has an API to manage departments, with each department identified by a unique deptld. The API was built with RAML according to MuleSoft best practices. What is valid RAML to specify a method to update the details for a specific department?



  A. Option A
  B. Option B
  C. Option C
  D. Option D
  D. Option D

  ---

  Explanation/Reference:

  URI parameter is basically used to identify a specific resource or resources

  *

  Here we want to update details about specific department, so question is asking 'How to use URI parameter' in RAML

  *

  Correct answer is

  /departments:

  /{deptId}:

  patch:

  Reference: https://docs.mulesoft.com/design-center/design-common-problems-raml-10
