Juniper JN0-361 Online Practice Questions and Exam Preparation

Juniper JN0-361 Online Questions & Answers

• Question 461:

  You have an established Layer 3 VPN where you are using static routing between your PE and CE devices. You must advertise their directly connected subnet to remote PE devices. Which two methods must you use? (Choose two.)

  A. Use a site identifier.
  B. Use the VRF table label.
  C. Use a VRF export policy.
  D. Use a route distinguisher.
  B. Use the VRF table label.
  C. Use a VRF export policy.

• Question 462:

  You want to verify the frequency and type of SPF calculations on your Junos device. Which command displays this information?

  A. show ospf database | match log
  B. show spf log
  C. show ospf log
  D. show ospf statistics
  C. show ospf log

• Question 463:

  Which statement is true regarding the default master routing instance?

  A. All IPv4 routes in the master routing instance are shared with user-defined routing instances.
  B. Interface routes in the master routing instance are shared with user-defined routing instances.
  C. Routes in the master routing instance are not shared with user-defined routing instances.
  D. All routes in the master routing instance are shared with user-defined routing instances.
  C. Routes in the master routing instance are not shared with user-defined routing instances.

• Question 464:

  -- Exhibit -[edit] user@router# show routing-options rib-groups { test { import-rib [ walter.inet.0 nancy.inet.0 ]; } } -- Exhibit -

  Click the Exhibit button.

  Referring to the exhibit, what is the result of the RIB group configuration?

  A. All routes from the walter.inet.0 and the nancy.inet.0 routing tables will be imported into the default master routing instance.
  B. Routes from the walter.inet.0 routing table will be imported into the nancy.inet.0 routing table.
  C. All routes will be shared between the walter.inet.0 and the nancy.inet.0 routing tables.
  D. Routes from the nancy.inet.0 routing table will be imported into the walter.inet.0 routing table.
  B. Routes from the walter.inet.0 routing table will be imported into the nancy.inet.0 routing table.

• Question 465:

  Which two statements are true about nonstop active routing (NSR)? (Choose two.)

  A. Graceful Routing Engine Switchover (GRES) must be configured for NSR to function properly
  B. NSR and graceful restart can be enabled at the same time
  C. NSR relies on helper support on neighboring devices
  D. When NSR is enabled, the rpd process runs on the backup Routing Engine
  A. Graceful Routing Engine Switchover (GRES) must be configured for NSR to function properly
  D. When NSR is enabled, the rpd process runs on the backup Routing Engine

• Question 466:

  In which two environments would BGP add value? (Choose two)

  A. an enterprise environment with a single upstream connection
  B. an enterprise environment with multiple upstream connections
  C. a service provider environment
  D. a home office environment
  B. an enterprise environment with multiple upstream connections
  C. a service provider environment

• Question 467:

  You are logged into a Junos device and issue the command show route protocol bgp. You see that the device has received the route 10 0.4/24 from two different IBGP peers. Local preference, MED, origin, and AS-path values are equal. Which criterion is used to determine which path will be preferred?

  A. cluster length
  B. router ID (RID)
  C. peer ID
  D. IGP cost
  B. router ID (RID)

• Question 468:

  Which statement is true when a VRRP master owns the VIP address?

  A. The VRRP priority will be set to 128.
  B. The VRRP priority will be set to 100.
  C. The VRRP priority will be set to 0.
  D. The VRRP priority will be set to 255.
  D. The VRRP priority will be set to 255.

• Question 469:

  Which two statements are true regarding GRE tunnel overhead? (Choose two.)

  A. If the host sends a packet larger than the MTU, that packet must be dropped.
  B. Packets are not dropped because the router clears the DF bit for GRE traffic by default.
  C. Packets larger than the MTU are fragmented or dropped depending on the DF bit setting.
  D. You can change the tunnel MTU to avoid packet fragmentation or drops.
  C. Packets larger than the MTU are fragmented or dropped depending on the DF bit setting.
  D. You can change the tunnel MTU to avoid packet fragmentation or drops.

• Question 470:

  Click the Exhibit button.

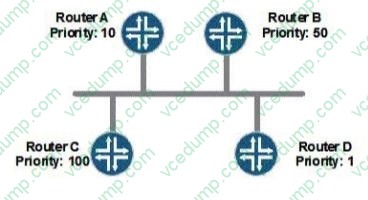

  In the exhibit Router A and Router B are operating on the LAN with Router B acting as the designated intermediate system (DIS). When Router C and Router D are added to the LAN. Which statement is true?

  A. Router C becomes the new DIS with no backup DIS.
  B. Router D becomes the new DIS with no backup DIS.
  C. Router C becomes the new DIS with Router B as the backup DIS.
  D. Router D becomes the new DIS with Router A as the backup DIS.
  A. Router C becomes the new DIS with no backup DIS.
