Juniper JN0-349 Online Practice Questions and Exam Preparation

Juniper JN0-349 Online Questions & Answers

• Question 11:

  You were provided a network diagram that told you to number your network from the 191.255.0.0/16 space. OSPF is enabled and adjacencies are up, but no routers are learning any routes. What can explain this?

  A. The default OSPF export policies advertise nothing, so you need to apply export policy
  B. The default OSPF import policy rejects all OSPF routes, so you need to apply import policy
  C. You need to modify the martian table with a 191.255.0.0/16 accept statement
  D. You need to enable OSPF on the lo0 interface to provide a route to the RID of each router in the network
  C. You need to modify the martian table with a 191.255.0.0/16 accept statement

• Question 12:

  Click the Exhibit button.

  You are implementing the network shown in the exhibit. You must ensure that all users can communicate with each other.

  What are three steps that should be taken in this scenario? (Choose three.)

  A. You must specify the appropriate Layer 3 IRB interface under each VLAN.
  B. You must define all ports as trunk ports and include all VLANs as members.
  C. You must define all ports as access ports and include the appropriate VLAN as a member.
  D. You must configure a single logical IRB interface with an IP address for each of the three networks.
  E. You must create a unique logical IRB interface for each network and assign an IP address within the appropriate network.
  A. You must specify the appropriate Layer 3 IRB interface under each VLAN.
  C. You must define all ports as access ports and include the appropriate VLAN as a member.
  E. You must create a unique logical IRB interface for each network and assign an IP address within the appropriate network.

• Question 13:

  If an EX Series switch receives a frame with a known destination MAC address, what is the expected behavior?

  A. The frame is sent out all ports assigned to the associated VLAN except the ingress port on which the frame was received.
  B. The frame is sent out all ports assigned to all configured VLANs except the ingress port on which the frame was received.
  C. The frame is sent out all trunk ports associated with the ingress VLAN regardless of whether a matching MAC address was found in the bridge table.
  D. The frame is sent out the egress port with a matching destination MAC address within the bridge table associated with the ingress VLAN.
  D. The frame is sent out the egress port with a matching destination MAC address within the bridge table associated with the ingress VLAN.

• Question 14:

  What are three types of port designation specific to Private VLANs? (Choose three.)

  A. Promiscuous ports
  B. Transparent ports
  C. PVLAN trunk ports
  D. Designated ports
  E. Isolated ports
  A. Promiscuous ports
  C. PVLAN trunk ports
  E. Isolated ports

• Question 15:

  You are concerned that someone from outside the company could use an open conference room port to access the network. Which feature should you use to address this concern?

  A. persistent MAC learning
  B. 802.1X
  C. DHCP snooping
  D. MAC limiting
  B. 802.1X

• Question 16:

  What are two functions of bridging? (Choose two.)

  A. blocking
  B. aging
  C. listening
  D. forwarding
  C. listening
  D. forwarding

• Question 17:

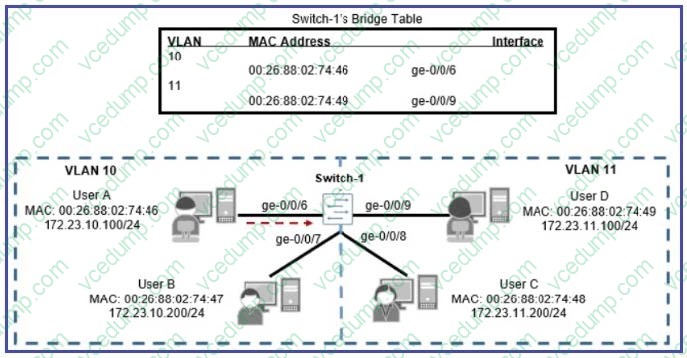

  Click the exhibit button.



  Switch-1 in the exhibit receives a packet from User A with a destination MAC address of

  00:26:88:02:74:47.

  Which statement in this scenario is correct?

  A. Switch-1 sends the packet out ge-0/0/7 only.
  B. Switch-1 sends the packet out ge-0/0/7 and ge-0/0/8.
  C. Switch-1 sends the packet out ge-0/0/6, ge-0/0/7, ge-0/0/8, and ge-0/0/9.
  D. Switch-1 sends the packet out ge-0/0/7, ge-0/0/8, and ge-0/0/9.
  A. Switch-1 sends the packet out ge-0/0/7 only.

• Question 18:

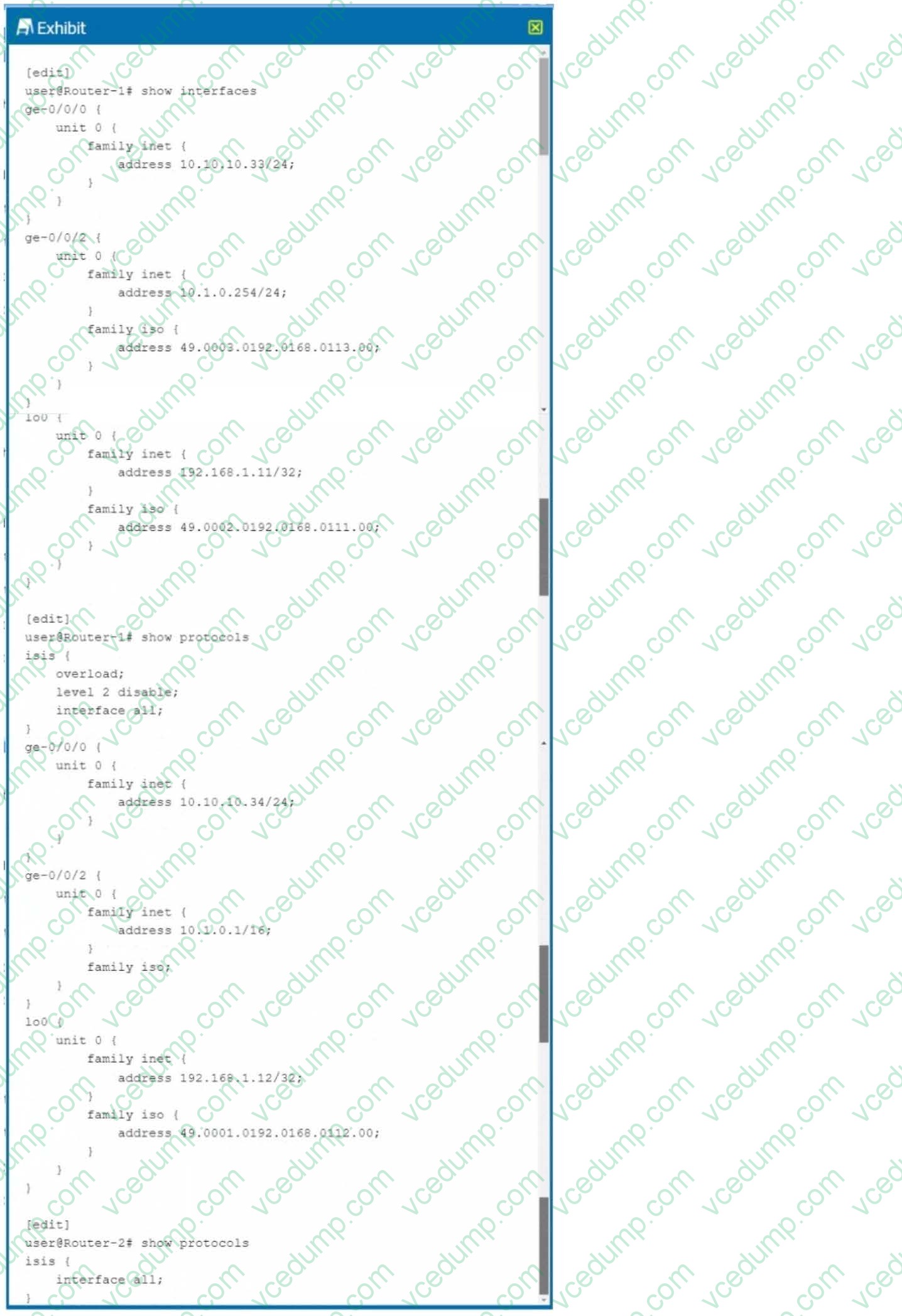

  Exhibit.



  Referring to the exhibit, Router-1 and Router-2 are failing to form an IS-IS adjacency. What should you do to solve the problem?

  A. Remove the overloaded statement from Router-1.
  B. Change the IP subnet masks to match on the ge-0/0/2 interfaces of both routers.
  C. Remove the ISO address from ge-0/0/2 on Router-1.
  D. Change the ISO areas on the Io0 interfaces to match on both routers.
  B. Change the IP subnet masks to match on the ge-0/0/2 interfaces of both routers.

• Question 19:

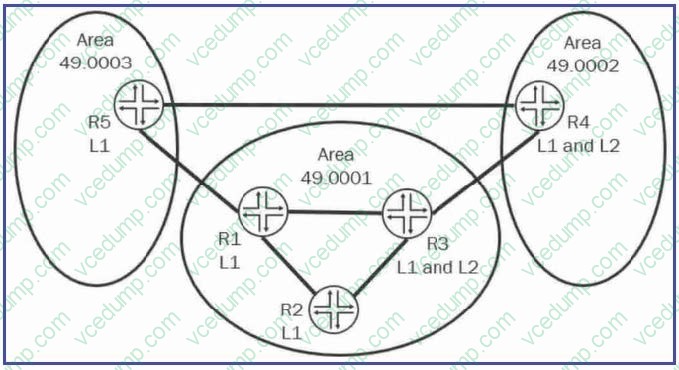

  Referring to the exhibit, which two statements are correct? (Choose two.)



  A. R2 and R3 can form a Level 1 IS-IS adjacency.
  B. R4 and R5 can form a Level 1 IS-IS adjacency.
  C. R1 and R5 can form a Level 1 IS-IS adjacency.
  D. R3 and R4 can form a Level 2 IS-IS adjacency.
  A. R2 and R3 can form a Level 1 IS-IS adjacency.
  D. R3 and R4 can form a Level 2 IS-IS adjacency.

• Question 20:

  You are deploying a new switch configuration at a small branch using EX3400 Series switches. You are concerned about loop prevention. In this scenario, which configuration would you deploy?

  A. RSTP
  B. EVPN
  C. MPLS
  D. BPDU
  A. RSTP
