Juniper JN0-103 Online Practice Questions and Exam Preparation

Juniper JN0-103 Online Questions & Answers

• Question 101:

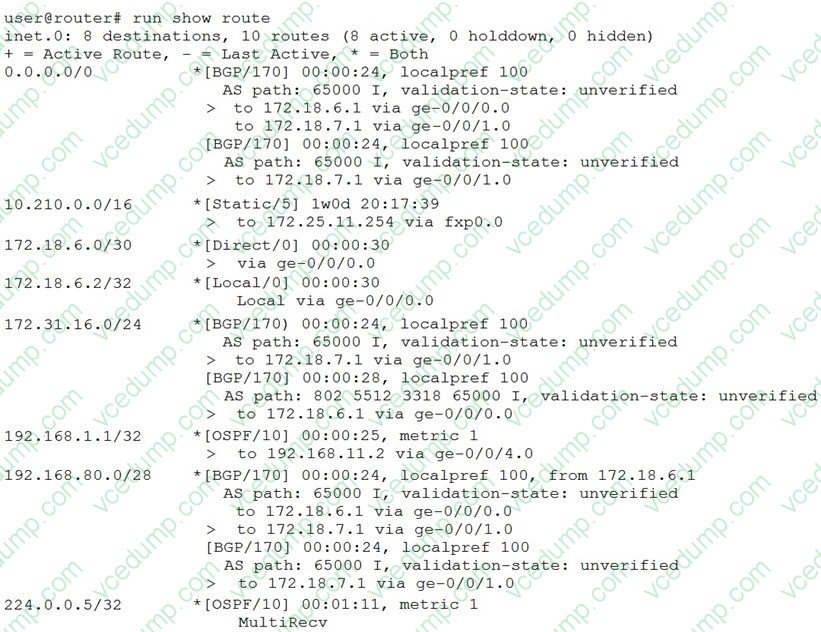

  What is the next hop for a packet destined to 192.168.80.98 as shown in the exhibit?

  A. 172.18.6.1
  B. 172.25.11.254
  C. 172.18.7.1
  D. 192.168.11.2
  A. 172.18.6.1

• Question 102:

  Which statement is true about the forwarding plane?

  A. The forwarding plane is the intelligence of the platform.
  B. The forwarding plane is based on an X86 architecture.
  C. The forwarding plane maintains the routing tables, bridging table, and primary forwarding table.
  D. The forwarding plane implements policers, stateless firewall filters, and class of service.
  D. The forwarding plane implements policers, stateless firewall filters, and class of service.

• Question 103:

  What is the decimal equivalent of 00000100?

  A. 2
  B. 4
  C. 9
  D. 12
  B. 4

• Question 104:

  Which two statements describe the connection between the control plane and the forwarding plane? (Choose two.)

  A. Exception traffic is preferred over control traffic during congestion.
  B. A rate limiter is configured by default.
  C. Control traffic is preferred over exception traffic during congestion.
  D. No rate limiter is configured by default.
  B. A rate limiter is configured by default.
  C. Control traffic is preferred over exception traffic during congestion.

• Question 105:

  Given the configuration shown below:

  set system authentication-order [ tacplus ]

  Which two statements are correct? (Choose two.)

  A. If the TACACS+ server is not available, the local user database is checked.
  B. If the TACACS+ server is available and rejects the username/password provided, the user is not allowed to access the device.
  C. If the TACACS+ server is not available, the user is not allowed to access the device.
  D. If the TACACS+ server is available and rejects the username/password provided, the local password database is checked.
  A. If the TACACS+ server is not available, the local user database is checked.
  C. If the TACACS+ server is not available, the user is not allowed to access the device.

• Question 106:

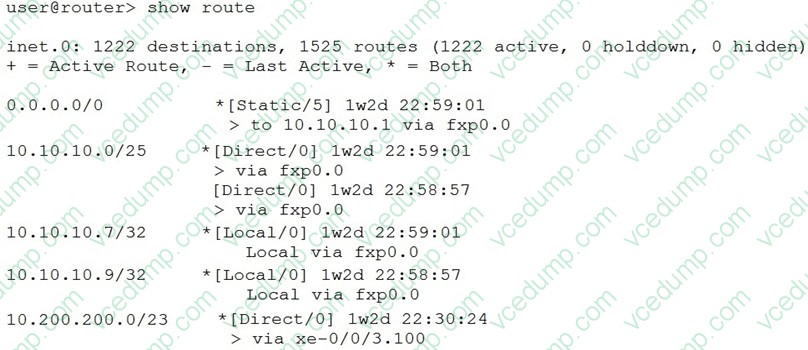

  What does the number inside the square bracket represent?



  A. Metric
  B. Local preference
  C. Protocol reference number
  D. Route preference
  D. Route preference

• Question 107:

  Which two statements are true regarding the role of the Routing Engine (RE)? (Choose two.)

  A. The RE controls and monitors the chassis.
  B. The RE manages the Packet Forwarding Engine (PFE).
  C. The RE receives a copy of the forwarding table from the forwarding plane.
  D. The RE implements class of service (COS).
  A. The RE controls and monitors the chassis.
  B. The RE manages the Packet Forwarding Engine (PFE).

• Question 108:

  The monitor traffic command provides access to which utility?

  A. tcpdump
  B. telnet
  C. traceroute
  D. netstat
  A. tcpdump

• Question 109:

  Which command is used to load the rescue configuration?

  A. load replace rescue
  B. load merge rescue
  C. rollback rescue
  D. rollback
  C. rollback rescue

• Question 110:

  Which command allows you to view the raw packet data of interface ge-1/0/5?

  A. Show interface ge-1/0/5 media
  B. Monitor interface traffic ge-1/0/5
  C. Show interface ge-/1/0/5 extensive
  D. Monitor traffic interface ge-1/0/5
  D. Monitor traffic interface ge-1/0/5
