HP HPE6-A70 Online Practice Questions and Exam Preparation

HP HPE6-A70 Online Questions & Answers

• Question 71:

  An Aruba Mobility Master (MM)-based solution has a WLAN that uses WPA2-Enterprise security. A test login on a wireless client fails. How can a network administrator determine whether the RADIUS server rejected the credentials or another issue occurred?

  A. View Technical Support information for the MM.
  B. Ping the IP address configured as the RADIUS server.
  C. Use the MM AAA Server Test Diagnostic tool.
  D. Use the tools in the MM Dashboard > Security window.
  C. Use the MM AAA Server Test Diagnostic tool.

• Question 72:

  An AP operates on channel 6. Which device causes the most significant and consistent interference with the signal?

  A. cellular phone
  B. weather radar
  C. wireless security camera operating on channel 8
  D. AP operating on channel 11
  C. wireless security camera operating on channel 8

• Question 73:

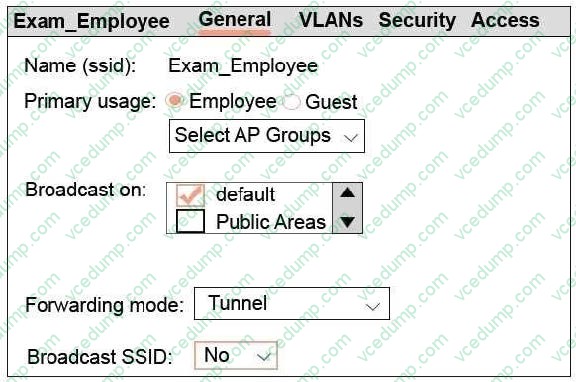

  Refer to the exhibit.



  What describes the behavior for this WLAN?

  A. APs in the default group broadcast the SSID. Clients can connect to the WLAN on APs in the default group only.
  B. No APs broadcast the SSID. Clients cannot connect to the WLAN until administrators activate it.
  C. No APs broadcast the SSID. Clients can connect to the WLAN on APs in the default group only.
  D. APs in the default group broadcast the SSID. Clients can connect to the WLAN on APs in any group.
  C. No APs broadcast the SSID. Clients can connect to the WLAN on APs in the default group only.

• Question 74:

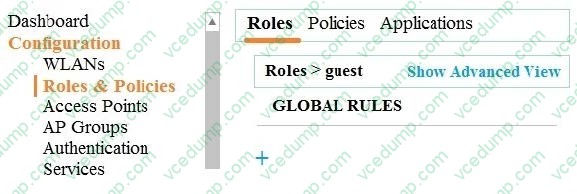

  Refer to the exhibit.



  A network administrator adds a global rule in the area shown in the exhibit. Where does the global rule take effect?

  A. It immediately applies only to the guest role, as part of the final policy applied to the role.Administrators cannot apply the rule to other roles.
  B. It immediately applies to the guest role and other roles, as part of the first policy applied to the role.
  C. It immediately applies to the guest role and other roles, as part of the final policy applied to the role.
  D. It immediately applies only to the guest role and other roles, as part of the first policy applied to the role. Administrators can choose to apply the rule to other roles.
  D. It immediately applies only to the guest role and other roles, as part of the first policy applied to the role. Administrators can choose to apply the rule to other roles.

• Question 75:

  A company has an Aruba Mobility Master (MM)-based solution. A network administrator wants to collect and analyze information about clients and access points (APs) over extended periods of time. What should the administrator do to achieve this goal?

  A. Add Aruba AirWave to the solution.
  B. Run a Traffic Analysis report on the MM.
  C. Make sure that MM has sufficient AppRF licenses.
  D. Enable archival from the MM interface Maintenance windows.
  A. Add Aruba AirWave to the solution.

• Question 76:

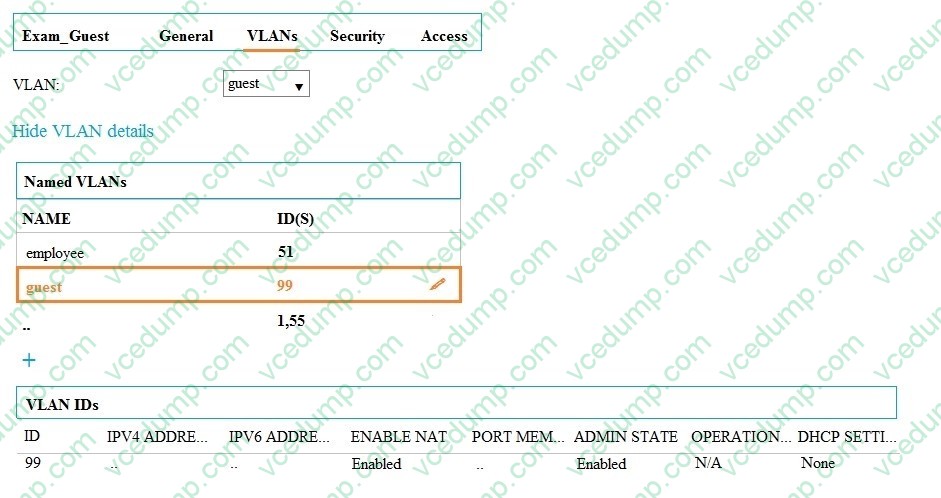

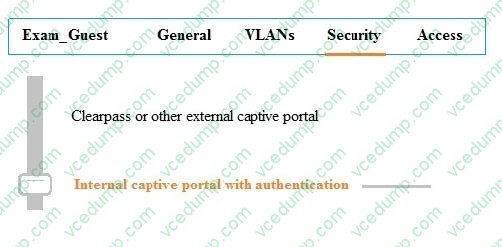

  Refer to the exhibits. Exhibit 1



  Exhibit 2



  A network administrator configures a guest WLAN on an Aruba Mobility Master (MM)-based solution. The exhibits show some of the settings for this WLAN. Which settings must the administrator configure on each Mobility Controller (MC) at the device level for this configuration to function properly?

  A. an IPsec preshared key
  B. CPSec certificates
  C. a portal page
  D. VLAN 99 IP settings
  D. VLAN 99 IP settings

• Question 77:

  A network administrator configures an Aruba Mobility Master (MM)-based solution to provide wireless access to employees. The solution must meet these criteria:

  1.

  Authenticate users to a network RADIUS server

  2.

  Enforce different Aruba firewall rules based on the user department How can the administrator meet these criteria in the simplest way?

  A. Have the RADIUS server assign users in different departments to different VLANs. Apply firewall policies based on IP ranges.
  B. Have the RADIUS server send different roles for users in different departments. Apply role-based firewall policies.
  C. Create multiple zones on the MM. Assign different departments and sets of firewall policies to different zones.
  D. Create a different WLAN and SSID for each department. Apply different firewall policies to each WLAN.
  B. Have the RADIUS server send different roles for users in different departments. Apply role-based firewall policies.

• Question 78:

  A company has a Mobility Master (MM)-based solution. A network administrator wants to monitor the types of applications in use in the wireless network. Which dashboard page in the MM interface should the administrator visit?

  A. Security
  B. Performance
  C. Traffic Analysis
  D. Network
  C. Traffic Analysis

• Question 79:

  A network administrator reduces an AP radio transmit power from 18 dBm to 15 dBm. This is a loss of 3 dBms. What is the current power as a percentage of the original power?

  A. 10%
  B. 33%
  C. 50%
  D. 83%
  C. 50%

• Question 80:

  A network administrator configures this policy:



  Users to which this policy applies are unable to receive IP addresses with DHCP. How should the administrator fix the issue?

  A. Change user to any in the user any svc-dhcp permit rule.
  B. Move the user any svc-dhcp permit rule to the bottom of the list.
  C. Remove the deny rule from the policy.
  D. Use the correct service alias in the user any svc-dhcp permit rule.
  D. Use the correct service alias in the user any svc-dhcp permit rule.
