HP HP2-Z34 Online Practice Questions and Exam Preparation

HP HP2-Z34 Online Questions & Answers

• Question 51:

  Several VPN instances have been set up on an HP Comware switch. What should the administrator do to ensure that no VPN instance uses up too many switch resources?

  A. Apply a service policy to each instance to assign that instance a percentage of resources
  B. Bind each instance to a specific port group or ASIC
  C. Set a maximum number of routes that each instance can have in its routing table.
  D. Set a CPU weight for each VPN instance to control how much of the CPU the instance can use.
  A. Apply a service policy to each instance to assign that instance a percentage of resources

• Question 52:

  A company is adding a second data center for disaster recovery. The data centers connect over a link supplied by a service provider with an IP network. The company wants a solution that extends Layer 2 connectivity between the data centers and does not require any special services from the service provider, such as MPLS.

  What can meet the needs for this design?

  A. QEVI
  B. lRF
  C. VPLS
  D. SPBM
  B. lRF

• Question 53:

  Which option is correct about the flash memory of an HP Comware switch with multiple MDCs?

  A. Each MDC has its own subfolder in the flash, but it can also access another MDC's subfolder if administrators specifically reference the appropriate folder ID.
  B. The entire flash directory is shared by every MDC. All MDCs have root access. Administrators may create new subfolders.
  C. Each MDC including the Admin MDC can only access its own subfolder in the flash The Admin MDC can also access the root folder, but not the subfolder for other MDCs.
  D. Except for the Admin MDC each MDC can only see and access its own subfolder in the flash. The Admin MDC has root access to the root folder and all subfolders.
  B. The entire flash directory is shared by every MDC. All MDCs have root access. Administrators may create new subfolders.

• Question 54:

  An administrator configures two VSANs on an HP Comware IRF virtual switch. The IRF members connect to a server with two Converged Network Adapters (CNAs) One CNA is connected to VSAN 1. and the other is connected to VSAN 2 The storage target for the server is also connected to VSAN 1 and VSAN 2.

  What is required for this setup to work?

  A. The HP switch must place the ports connected to the server CNAs in a link aggregation set to static mode
  B. The server CNAs must support multi-path I/O (MPIO)
  C. The HP switch must place the ports connected to the server CNAs in a link aggregation set to dynamic (LACP) mode
  D. The HP switch must support multi-path I/O (MPIO).
  A. The HP switch must place the ports connected to the server CNAs in a link aggregation set to static mode

• Question 55:

  Refer to the exhibit



  SPBM is being implemented on the backbone links shown in the exhibit. The servers in VLAN 10 (10.1.10.0/24) should be able to communicate at Layer 2 across the backbone. In the vsi section of the configuration on Switch 1. which logical

  components are required?

  A. the S-VLAN to which the servers are assigned and the ECT algorithm for distributing their traffic
  B. a unique l-SID for the servers and the B-VLAN that should carry their traffic
  C. the S-VLAN to which the servers are assigned and the B-VLAN that should carry their traffic
  D. a unique l-SID for the servers and the S-VLAN to which the servers are assigned
  C. the S-VLAN to which the servers are assigned and the B-VLAN that should carry their traffic

• Question 56:

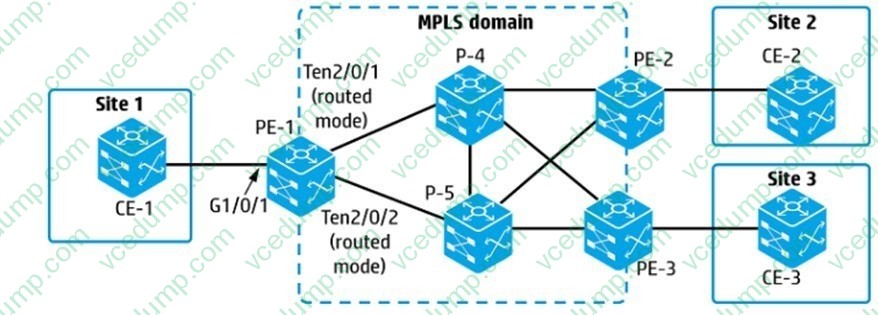

  Refer to the exhibit



  An administrator is setting up an MPLS Layer 2 VPN between customer Sites 1 and 2 and is defining the pseudo wire (PW) ID for this purpose. How should the PW IDs and router values be configured?

  A. Set the PW ID to a different value on PE-1 and PE-2 The value on each router must match the label advertised by the peer for its loopback address.
  B. Set the PW ID to a different value on PE-1 and PE-2 Also use a different value from other PWs on these routers.
  C. Set the PW ID to the same value on PE-1 and PE-2. Use a different value from other PWs on these routers.
  D. Set the PW ID to the same value on PE-1 and PE-2. The value on each router must match the S-VLAN ID for the associated service instance.
  D. Set the PW ID to the same value on PE-1 and PE-2. The value on each router must match the S-VLAN ID for the associated service instance.

• Question 57:

  An administrator binds VLAN interface 10 to VPN instance "TenantA" on an HP Comware switch by using this configuration:

  interfaceVlan-interface 10 ip address 10.1.10.1 255.255.255.0 How does the administrator's action affect the interface IP address?

  A. The interface loses the IP address, and the administrator must configure the IP address on this interface again.
  B. The IP address remains 10.1.10.1/24 but is extended with the Route Distinguisher (RD) and can now be assigned to an interface in another VPN instance.
  C. The interface loses the IP address and the administrator must map the interface to 10.1 10.1/24 from the VPN instance context
  D. The IP address remains 10.1 10.1/24. but now this subnet can also be assigned to an interface in another VPN instance.
  D. The IP address remains 10.1 10.1/24. but now this subnet can also be assigned to an interface in another VPN instance.

• Question 58:

  An HP Comware Switch 1 supports FCoE for connected servers with Converged Network Adapters (CNAs). On interface Ten 1/0/1 Switch 1 sends FCoE traffic in VSAN 2 to an upstream switch. Switch 2 which also supports FCoE What is the correct configuration for interface Ten 1/071?

  A. FC trunk port, which permits VSAN 2
  B. bound to a VFC interface, which is a trunk port and permits VSAN 2
  C. bound to a VFC interface, which is an access port in VSAN 2
  D. FC access port in VSAN 2
  C. bound to a VFC interface, which is an access port in VSAN 2

• Question 59:

  Refer to the exhibit



  An MPLS Layer 2 VPN is being implemented between Sites 1 and 2. The administrator wants PE-1 and PE-2 to set up the Virtual Circuit (VC) dynamically by using the Martini method. What is required to accomplish this goal?

  A. redistribution of Border Gateway Protocol (BGP) routes into Open Shortest Path First (OSPF) on PE-1 and PE-2
  B. remote LDP session between PE-1 and PE-2
  C. iPSec tunnel between PE-1 and PE-2
  D. VPN instance with the same route distinguisher (RD) on PE-1 and PE-2
  D. VPN instance with the same route distinguisher (RD) on PE-1 and PE-2

• Question 60:

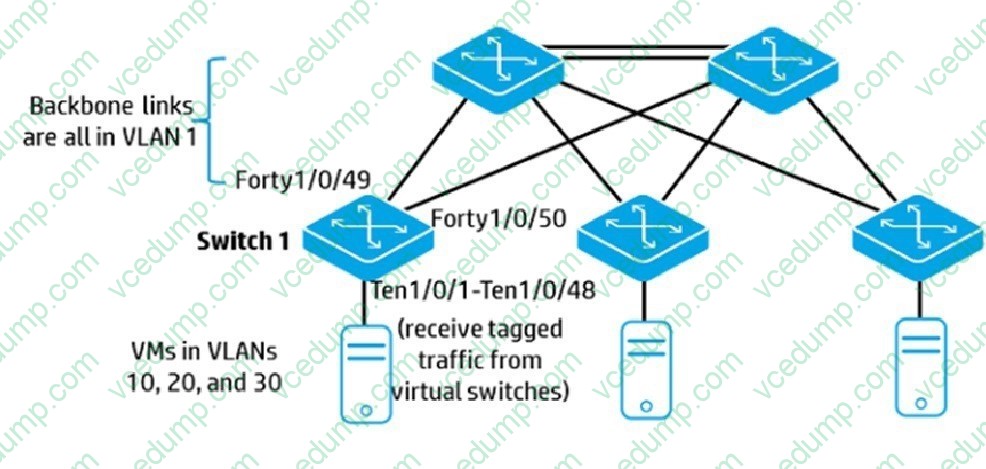

  Refer to the exhibit



  The company wants to use TRILL in the backbone links shown in the exhibit. Servers use VLANs 10, 20, and 30 and should be able to communicate across the backbone. On which Switch 1 interfaces should the administrator enable TRILL?

  A. VLAN interface 1 only
  B. VLAN interfaces 1,10, 20, and 30
  C. interfaces Forty1/0/49 and Forty1/0/50 only
  D. interfaces Ten1/0/1 to Ten1/0/48, and Forty1/0/49 and Forty1/0/50
  C. interfaces Forty1/0/49 and Forty1/0/50 only
