• Question 41:

  What is the correct use case for implementing priority flow control (PFC) on a switch port?

  A. The port carries data and storage traffic. PFC should be applied to the priority queue that is assigned to storage traffic.
  B. The port carries multimedia voice and video traffic PFC should be applied to the queues with a lower priority than multimedia traffic
  C. The port carries data and storage traffic PFC should be applied to the queues with a lower priority than storage traffic.
  D. The port carries multimedia voice and video traffic PFC should be applied to the priority queue that is assigned to multimedia traffic.
  C. The port carries data and storage traffic PFC should be applied to the queues with a lower priority than storage traffic.

• Question 42:

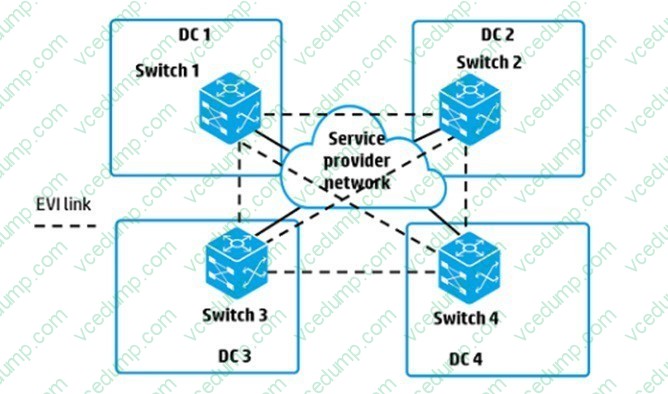

  Refer to the exhibit



  An administrator is creating the EVI network shown in the exhibit Switches 1 and 2 are configured as ENDP servers. and Switch 3 is configured as an ENDP client to the ENDP servers. Which configuration is correct for the EVI tunnel interface on Switch 3?

  A. The source IP address is the switch router ID; the addresses for switches 1. 2. and 4 need to be set as destinations
  B. The source IP address is the address on the connection to the service provider; no other destination IP addresses need to be set.
  C. The source IP address is the address on the connection to the service provider; the addresses for switches 1, 2, and 4 need to be set as destinations
  D. The source IP address is the switch router ID; no other destination IP addresses need to be set.
  C. The source IP address is the address on the connection to the service provider; the addresses for switches 1, 2, and 4 need to be set as destinations

• Question 43:

  An administrator creates two VPN instances on an HP Comware switch, in addition to the public instance. The switch implements routing protocols and MPLS. Which statement is correct about the routing tables and Label Forwarding Information Bases (LFIBs) maintained by the switch?

  A. The switch uses a single routing table and maintains a separate LFIB for each VPN instance
  B. The switch maintains a separate routing table and LFIB for each VPN instance, but the public tables automatically include entries from the other instances.
  C. The switch maintains a separate routing table and LFIB for each VPN instance.
  D. The switch maintains a separate routing table for each VPN instance and uses a single LFIB
  D. The switch maintains a separate routing table for each VPN instance and uses a single LFIB

• Question 44:

  What is the purpose of the nickname in TRILL switch settings?

  A. The nickname identifies the TRILL region and must match on every TRILL RBridge in the region.
  B. Administrators can use the nicknames to identify switches in CLI output.
  C. The nickname is the first factor for electing a root bridge
  D. TRILL RBridges use the nicknames as source and destination addresses in TRILL headers
  D. TRILL RBridges use the nicknames as source and destination addresses in TRILL headers

• Question 45:

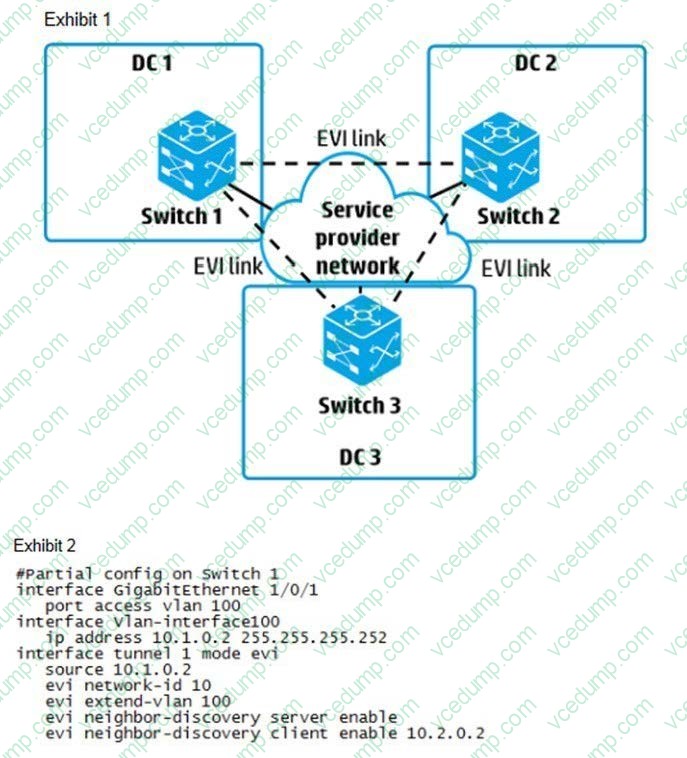

  Refer to the exhibit An EVI network is being set up as shown in Exhibit 1. Part of Switch 1's configuration is shown in Exhibit 2 All other switches are configured correctly and can reach each other. The EVI links should carry traffic in VLANs 4 to 20; however, when the administrator tries to ping a VLAN 4 device in DC 2 from DC 1. the ping fails.



  What should the administrator do?

  A. Change the tunnel source IP address to the Switch 1 router ID.
  B. Add tunnel destination IP addresses to the tunnel interface.
  C. Either disable the neighbor-discovery server setting or remove the client setting
  D. Configure the tunnel interface to extend VLANs 4 to 20 instead of VLAN 100.
  D. Configure the tunnel interface to extend VLANs 4 to 20 instead of VLAN 100.

• Question 46:

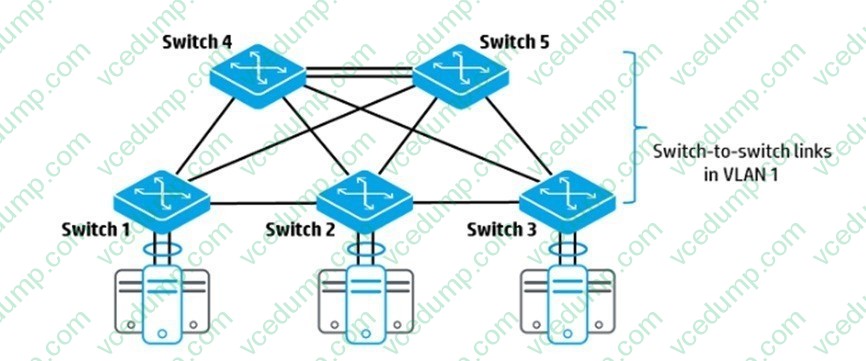

  Refer to the exhibit



  An administrator wants these switches to establish a TRILL region TRILL is enabled globally and nicknames are set. What must the administrator do so that each TRILL switch (RBridge) finds the best path to all other TRILL switches?

  A. Configure IS-IS on VLAN 1 on all the switches.
  B. Enable TRILL with the correct link-type on each switch-to-switch port
  C. Configure DRB priorities on all switch-to-switch links.
  D. Create a Virtual Service Instance (VSI) on each switch and define the other switches as TRILL peers.
  B. Enable TRILL with the correct link-type on each switch-to-switch port

• Question 47:

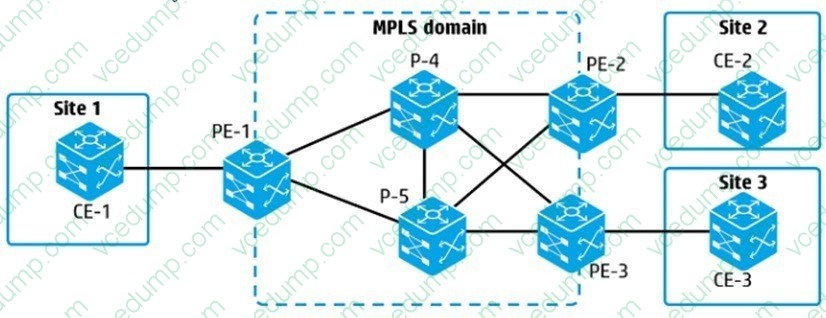

  Refer to the exhibit



  An MPLS VPLS solution (non-hierarchical) will connect the sites shown in the exhibit Which pseudo wire (PW) connections must the administrator configure?

  A. A full mesh of PWs between every PE router that connects to a site and every P router between them
  B. A hub-and-spoke set of PWs between one P router and all PE routers that connect to a site
  C. A full mesh of PWs between every PE router that connects to a site
  D. A hub-and-spoke set of PWs between one PE router and other PE routers that connect to a site
  D. A hub-and-spoke set of PWs between one PE router and other PE routers that connect to a site

• Question 48:

  Why might a customer decide to use MDC instead of Multi-VPN-Instance CE (MCE)?

  A. to isolate tenants while maintaining the ability to leak routes in and out of a tenant instance
  B. to integrate with Intelligent Resilient Framework (IRF)
  C. to manage all routing and switch functions with a single management team
  D. to provide further segmentation between tenants at the hardware or ASIC level
  A. to isolate tenants while maintaining the ability to leak routes in and out of a tenant instance

• Question 49:

  When is it recommended to block VRRP hellos between routers in the same VRRP instance?

  A. when the VRRP master and VRRP backup router are part of the same IRF virtual device
  B. when providing two VRRP master routers to be deployed in different data centers
  C. when the VRRP master and VRRP backup router are part of a TRILL domain
  D. when the VRRP master and VRRP backup router are top of the rack (ToR) switches
  A. when the VRRP master and VRRP backup router are part of the same IRF virtual device

• Question 50:

  How does a non-hierarchical VPLS Martini solution prevent looping for broadcasts and multicasts?

  A. PEs use a hub and spoke topology, relying on the hub to distribute broadcasts and multicasts.
  B. PEs use split horizon operations, never forwarding a packet received on a pseudo wire (PW) over another PW.
  C. PEs implement Shortest Path Bridging (SPB) VLAN Mode (SPBV).
  D. PEs implement a version of Spanning Tree Protocol (STP). preferably Multiple STP (MSTP).
  B. PEs use split horizon operations, never forwarding a packet received on a pseudo wire (PW) over another PW.
