HP HP2-Z32 Online Practice Questions and Exam Preparation

HP HP2-Z32 Online Questions & Answers

• Question 81:

  Which feature differentiates the default VSC from other VSCs that are configured on an MSM Controller?

  A. Traffic from the default VSC is always routed out the Internet port.
  B. The default VSC can be used to control untagged wired traffic that is received on the LAN port.
  C. The default VSC must always be access controlled.
  D. Wireless clients that fail authentication to another VSC are assigned to this VSC.
  B. The default VSC can be used to control untagged wired traffic that is received on the LAN port.

• Question 82:

  A customer has 600 APs and requires N+1 redundancy for the wireless services. Which teaming solution meets the customer's needs?

  A. Four MSM760 Controllers with 600 licenses total
  B. Three MSM760 Controllers with 800 licenses total
  C. Four MSM760 Controllers with 900 licenses total
  D. Three MSM760 Controllers with 600 licenses total
  A. Four MSM760 Controllers with 600 licenses total

• Question 83:

  A company wants to allow layer 2 roaming between two aps what are requirements for layer 2 roaming?

  A. The aps must both support fast roaming
  B. The WLAN no both aps must have the same security settings
  C. The aps must support the same service set ID(SSID)
  D. The WLAN no both aps must be configured as open systems.
  E. The aps redios must support the same basic and supported rates.
  C. The aps must support the same service set ID(SSID)

• Question 84:

  What distinguishes an HP MSM460 AP from an HP MSM430 AP?

  A. The MSM460 radios support 802.1n, while the MSM430 radios only support 802.11b/g/a.
  B. All radios on an MSM460 support 802.11n, while only one radio on an MSM430 supports this standard.
  C. The MSM460 radios support three spatial streams, while the MSM430 radios support two spatial streams.
  D. The MSM460 supports 802.11n with MIMO on all radios, while the MSM430 supports 802.11n without MIMO.
  C. The MSM460 radios support three spatial streams, while the MSM430 radios support two spatial streams.

• Question 85:

  A network administrator wants to use a dedicated link for teaming communications between two HP MSM720 Controllers. In each MSM720's teaming settings, the administrator selects port 4 and sets the VLAN ID to 101. What is the correct setting for the port 4 network profile?

  A. A network profile without a VLAN ID
  B. A network profile with a VLAN ID that is not used in any another profile
  C. A network profile with VLAN ID 101
  D. The default network profile (Access network)
  C. A network profile with VLAN ID 101

• Question 86:

  In addition to the data transmit rate, which other parameter is configurable for the QoS Priority levels?

  A. Notification of blocking enable
  B. Receive rate
  C. Retry amount
  D. Drop or queue choice
  B. Receive rate

• Question 87:

  The Use Controller for Access Control option is selected of a VSC that is defined on an HP MSM Controller.

  The VSC enforces MAC-Auth to an external RADIUS server and also users a wireless MAC filter Allow list. A client attempts to connect to the WLAN associated with this VSC its MAC address is defined ass allowed on the external RADIUS

  server but is not listed on the VSC's Wireless MAC filter Allow list.

  What happens when the client attempts to connect?

  A. The client can connect and forward traffic and no errors are logged.
  B. The client cannot connect or forward traffic.
  C. The client can connect but can only forward traffic to devices on the wireless MAC filter allow list.
  D. The client can connect and forward traffic but an error is logged on the controller.
  C. The client can connect but can only forward traffic to devices on the wireless MAC filter allow list.

• Question 88:

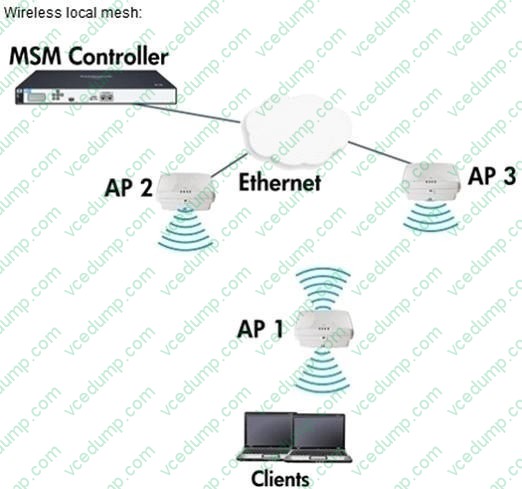

  Refer to the exhibit.



  A network administrator needs to configure a dynamic wireless mesh to connect HP MSM AP 1 to the network.

  AP 1 will be installed outdoors where Ethernet is not available. It will connect to AP2ortoAP3; one of which will provide the primary link and one of which will act as backup. Both AP 2 and AP 3 have connections to the Ethernet network and

  should not connect to each other.

  What are appropriate roles for the three APs?

  A. 1 = Slave; 2 = Alternate master; 3 = Alternate master
  B. 1 = Slave; 2 = Master 3 = Alternate master
  C. 1 = Slave; 2 = Master; 3 = Master
  D. 1 = Alternate master; 2 = Alternate master; 3 = Alternate master
  B. 1 = Slave; 2 = Master 3 = Alternate master

• Question 89:

  Which 802.11n technology involves a radio transmitting the same data on more than one antenna'?

  A. channel bonding
  B. band steering
  C. multiple spatial streaming
  D. transmit beam forming
  C. multiple spatial streaming

• Question 90:

  A company has an MSM solution that is providing wireless access for its employees. The company now needs a simple wireless guest solution, and the MSM administrator is creating modern for guests' an access controlled VSC for this

  purpose. The company has a cable Internet access, and the controller should route traffic directly to the Internet Service Provider (ISP) router through this modern. The MSM administrator has created an IP interface for VLAN 1000 on the

  controller's Internet port.

  What else must the MSM administrator do?

  A. Create a route to the ISP router through the core switch.
  B. Connect the controller's LAN port to the cable modern.
  C. Disconnect the controller's Internet port from the core switch and connect it to the cable modern.
  D. Set VLAN 1000 as the egress VLAN in the guest VSC.
  D. Set VLAN 1000 as the egress VLAN in the guest VSC.
