HP HP2-Z32 Online Questions & Answers

• Question 31:

  A network administrator deploys several HP MSM APs and an HP MSM Controller. The APs discover the controller, establish management tunnels, and become synchronized. The administrator wants to check some settings on one of the

  APs and attempts to reach its web browser interface, but the request times out.

  However, a ping to the AP succeeds.

  What explains this behavior?

  A. The global setting for controlled AP provisioning is disabled.
  B. The APs' Web interfaces are not available after they become managed by the controller.
  C. The APs' Web management tool features have been disabled either at the AP group level or the controlled AP level.
  D. The controller has deployed an access control list (ACL) to the AP. The management station's address must be added to this list.
  C. The APs' Web management tool features have been disabled either at the AP group level or the controlled AP level.

• Question 32:

  A company is deploying an HP MSM760 Controller that will control approximately 80 HP MSM APs. The HP MSM solution will provide wireless guest services and a WLAN for employees, which is secured with WPA2 and 802.1X. The controller will perform the following functions:

  1. Handle all guest traffic

  2. Provide DHCP services for guest clients

  3. Force guests to log in through a web page and implement access controls How should the network administrator connect the controller to the corporate LAN?

  A. The administrator must connect both the LAN port and the Internet port, and the ports must be in different VLANs.
  B. The administrator can connect either the LAN port or the Internet port, or both ports, but it is typically recommended to connect the Internet port.
  C. The administrator must connect both the LAN port and the Internet port, and the ports must be in the same VLAN.
  D. The administrator must connect only the LAN port.
  D. The administrator must connect only the LAN port.

• Question 33:

  How does 802.11h (DFS) help 802.11 devices avoid interference?

  A. The standard enables 802.11n APs to switch channels when they encounter any interference on any channel in the 5.0 GHz range. It offers no benefits for non-n devices.
  B. The standard ensures that 802.11 devices do not interfere with other non-802.11 devices that use the 2.4 GHz range.
  C. The standard ensures that 802.11 devices operating in the 5 GHz (UNII2-UNII2e) frequency range do not interfere with radar.
  D. The standard enables 802.11g and 802.11n devices to switch channels when interference causes the SNR to drop below the minimum level.
  C. The standard ensures that 802.11 devices operating in the 5 GHz (UNII2-UNII2e) frequency range do not interfere with radar.

• Question 34:

  A network administrator is configuring an HP MSM765 zl Controller and wants to use only the Internet port 1 to forward traffic onto the wired network. How should the network administrator configure the LAN port 2?

  A. Place 2 in the same VLAN as l.
  B. Disable 2.
  C. Place 2 in the network management VLAN.
  D. Isolate 2 by placing it in an unused VLAN.
  B. Disable 2.

• Question 35:

  The HP MSM Controller features a free access option.

  When a user clicks the Free Access button, the controller creates a user account for the guest. What is one feature of that account?

  A. The account is copied to Guest Management Software (GMS) if the MSM Controller is synchronized with that application.
  B. The username and password are derived from entries that the user types into the login page.
  C. The account has an expiry time that is derived from the session timeout value in the default AC profile.
  D. The account has an expiry time that is derived from the free access validity duration.
  D. The account has an expiry time that is derived from the free access validity duration.

• Question 36:

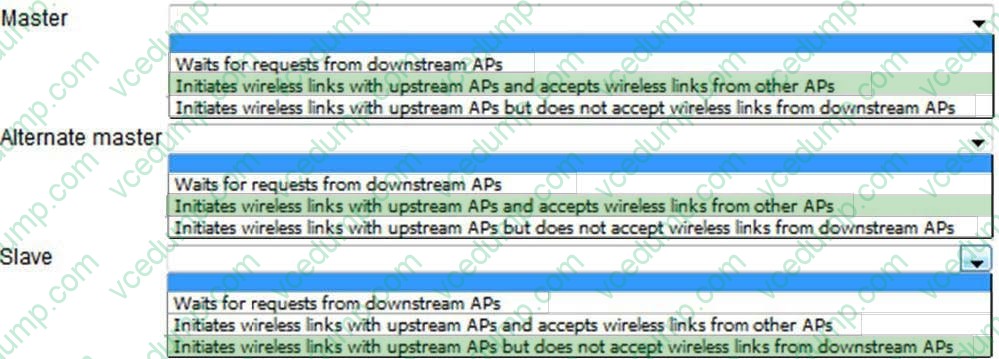

  When configuring a wireless mesh, an AP is assigned one of three roles. Match the description to each role.





• Question 37:

  A company requires a wireless Access Point (AP) that supports Multiple-in, Multiple-Out (MIMO) and three spatial streams. Which HP MSM AP provides these capabilities?

  A. MSM310
  B. MSM317
  C. MSM430
  D. MSM460
  D. MSM460

• Question 38:

  When is AP Provisioning required before deploying controlled APs in a simple network topology?

  A. When using a Local Mesh to connect to the network
  B. When an AP needs to be deployed with dynamic IP addressing
  C. When the access point is using a Group other than the Default Group
  D. Discovery of third-party access points
  E. When you have Layer 2 connectivity to a controller
  A. When using a Local Mesh to connect to the network

• Question 39:

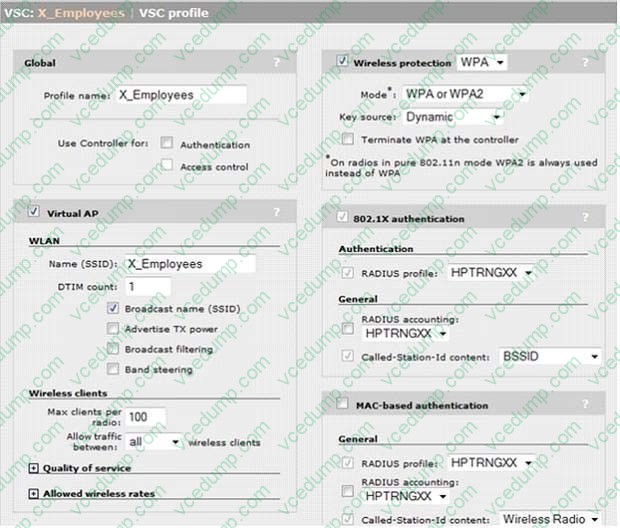

  Refer to the exhibit.



  The exhibit shows the settings for the X_Employees VSC. Which devices will negotiate the EAP method for this VSC?

  A. MSM AP and the external RADIUS server
  B. Station and the MSM AP
  C. Station and the external RADIUS server
  D. Station and the internal RADIUS server of the MSM Controller
  D. Station and the internal RADIUS server of the MSM Controller

• Question 40:

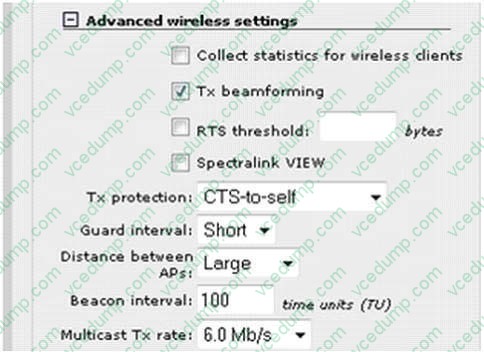

  Refer to the exhibit.



  An MSM APis operating in 802.11n mode, and legacy (a/g) traffic is being transmitted on the same radios as the 802.11n traffic. Which Advanced wireless setting prevents collisions from legacy traffic?

  A. Tx beamforming
  B. Guard interval
  C. Multicast Tx rate
  D. Tx protection
  B. Guard interval
