HP HP0-Y49 Online Practice Questions and Exam Preparation

HP HP0-Y49 Online Questions & Answers

• Question 1:

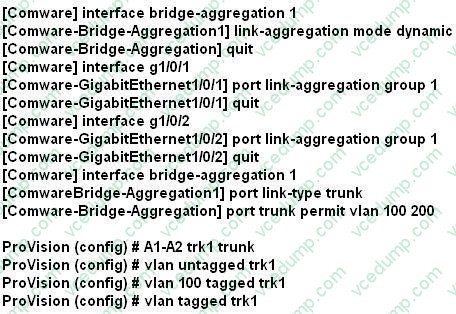

  Refer to the exhibit.

  Exhibit Switch configuration



  A network administrator is configuring an aggregated link between an HP Comware and ProVision switch.

  The network administrator applies the configurations to the switches, as shown in the exhibit. The two links on the both switches are up, and they can see each other on both links in the local LLDP table.

  What will be the outcome?

  A. The ProVision switch must initiate LACP for the link become active
  B. Link aggregation fails because the VLAN tagging was not configured correctly
  C. The Commware switch must initiate LACP for the link to become active
  D. Link aggregation fails because of a protocol issue
  C. The Commware switch must initiate LACP for the link to become active

• Question 2:

  What does an IP host learn from an ARP reply?

  A. An IP address
  B. The local subnet
  C. A MAC address
  D. A Netbios name
  C. A MAC address

• Question 3:

  A network administrator has purchased the first HP Comware for a company. The network administrator has never used the CLI of a Comware device before and needs to perform specific management functions. Which action requires the network administrators to be in user view to execute from the Comware switch?

  A. Verify connectivity with transactions or ping tools
  B. Verify files located in flash memory
  C. Execute the display commands
  D. Create a VLAN and assign ports to it.
  B. Verify files located in flash memory

• Question 4:

  A network administrator configures this command on an HP ProVision Switch:

  Vlan 30 ip helper-address 10.0.3.253

  After the network administrator configures the command, using in VLAN 30 report that their PCs fail to acquire addresses using DHCP.

  Which command must the network administrator add to the ProVision switch configuration to solve this problem?

  A. IP helper-address enable
  B. DHCP enable
  C. IP routing
  D. DHCP-relay
  C. IP routing

• Question 5:

  Which type of access is considered an In-band management connection?

  A. Serial connection to Console port
  B. Dial-up to an auxiliary port
  C. SSH from a desktop to the device
  D. Telnet to an HP iLO management port
  C. SSH from a desktop to the device

• Question 6:

  Which command can a network administrator execute on an HP Commware switch to manage configuration files?

  A. Restore startup-configuration
  B. Erase startup-configuration
  C. Rename config
  D. Erase startup-config
  A. Restore startup-configuration

  ---

  http://www.h3c.com/portal/Technical_Support___Documents/Technical_Documents/Switches/H 3C_S12500_Series_Switches/Configuration/Operation_Manual/H3C_S12500_CG-Release7128-6W710/01/201301/772595_1285_0.htm

• Question 7:

  Which open standard allows a switch with PoE support to correctly determine the power requirements of a connected device?

  A. ICMP
  B. AutoPower
  C. LLDP-MED
  D. CDP
  C. LLDP-MED

  ---

  The Link Layer Discovery Protocol (LLDP) is a vendor-neutral link layer protocol in the Internet Protocol Suite used by network devices for advertising their identity, capabilities, and neighbors on an IEEE 802 local area network, principally wired Ethernet. Media Endpoint Discovery is an enhancement of LLDP, known as LLDP-MED, that provides the following facilities:

  Auto-discovery of LAN policies (such as VLAN, Layer 2 Priority and Differentiated services settings) enabling plug and play networking. Device location discovery to allow creation of location databases and, in the case of Voice over Internet Protocol (VoIP), Enhanced 911 services. Extended and automated power management of Power over Ethernet (PoE) end points.

• Question 8:

  When LLDP is enabled, which value is presented by default as the LLDP Chassis ID on both ProVision and Comware switches?

  A. Router ID
  B. System Name
  C. IP address
  D. MAC address
  D. MAC address

  ---

  display lldp local-information Global LLDP local-information: Chassis ID : 00e0-fc00-5600 System name : Sysname System description : H3C Comware Software. H3C S12508 Product Version S12500-C MW710B01BBIT25. Copyright (c) 2004-2011 Hangzhou H3C Tec h. Co., Ltd. All rights reserved. System capabilities supported : Bridge, Router System capabilities enabled : Bridge, Router

  MED information: Device class : Connectivity device MED inventory information of master board: HardwareRev : REV.A FirmwareRev : 109 SoftwareRev : 5.20 Alpha 2101 SerialNum : NONE Manufacturer name : H3C Model name : H3C Comware Asset tracking identifier : Unknown Table 1 Command output Field Description Global LLDP local-information Global LLDP information to be sent. Chassis ID Bridge MAC address of the device.

  Reference: http://www.h3c.com/portal/Technical_Support___Documents/Technical_Documents/Switches/H 3C_S12500_Series_Switches/Command/Command/H3C_S12500_CR-Release71286W710/04/201301/772500_1285_0.htm

• Question 9:

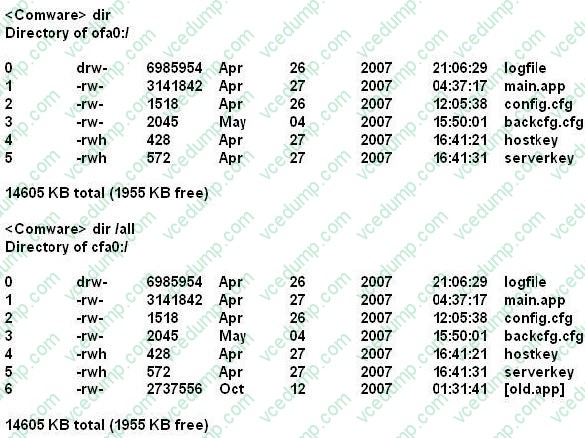

  Refer to the exhibit.

  Exhibit: HP Comware Switch dir command output



  A network administrator is upgrading the operating system on an HP Comware switch. When copying the new image from a TFTP server to flash of the switch, the process fails because there is not enough flash to store the new operating system. The new operating system is 3.2MB in size. The network administrator then executes the commands shown in the exhibit.

  Which action should the network administrator perform to solve this problem?

  A. Reformat flash and execute the TFTP upgrade command.
  B. Execute the clear Flash command and perform the TFTP upgrade again.
  C. Execute the reset recycle-bin command and perform the TFTP upgrade again.
  D. Execute the delete eld.app command and execute the TFTP upgrade command.
  C. Execute the reset recycle-bin command and perform the TFTP upgrade again.

  ---

  When you delete a file with HP switches, it moves the file to the recycle bin and the file still occupies storage space. To permanently delete the file from the recycle bin, execute the reset recycle-bin command in the original directory of the file.

• Question 10:

  A network administrator attempts to create a loopback interface on an HP Comware switch, and it fails.

  These are the commands the network administrator issues to do this.

  [Comware] interface loopback 2

  [Comware-Loopback2] ip address 172.18.20.1 255.255.255.0

  What is the problem with the proposed configuration/

  A. Only HP ProVision switches support loopback interface
  B. Loopback IP addresses must be in the 10.x.x.x subnet ranges
  C. Only one loopback is supported in Comware Loopback2 cannot be configured
  D. Loopback interface on Comware must use 32-bit marks
  D. Loopback interface on Comware must use 32-bit marks
