H12-351 Online Practice Questions

HCIE-WLAN (Written) V1.0

75 questions available · Page 1 of 8

Updated Exam DumpsVerified AnswersPass Guarantee

Get Complete Exam Dumps
Question 1 Single choice

Master NCE-Campuslnsight analyzes network issues during correlation analysis of poor-QoE clients, including coverage, interference throughput, and hardware issues.

  1. A

    True

  2. B

    False

Show answer and explanation

Correct answer: A

Question 2 Multiple choice

Which of the following encapsulation formats are used for EAP termination in 802.1X authentication? (Select All that apply)

  1. A

    EAP-TLS

  2. B

    EAPoL

  3. C

    EAPoR

  4. D

    EAP

Show answer and explanation

Correct answers: B, C

Question 3 Drag & drop

DRAG DROP

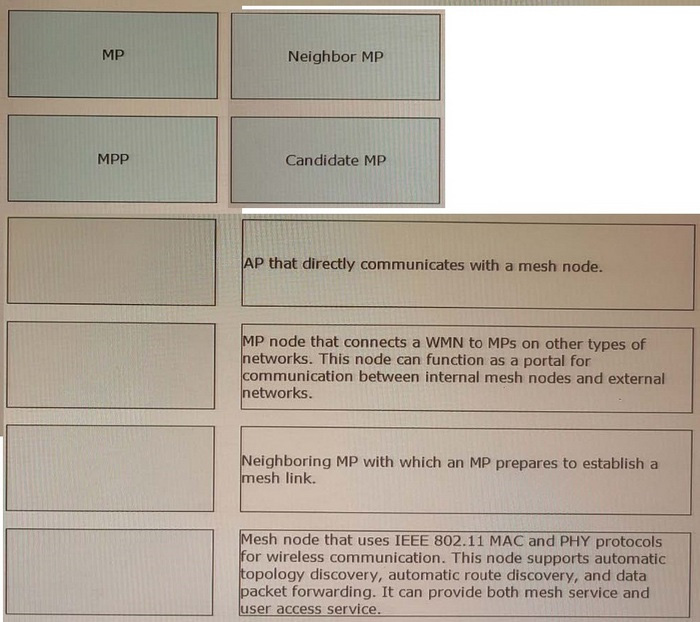

In mesh networking, APs have different roles. Drag the AP roles on the left to the role descriptions on the right.

Question diagram
Show answer and explanation

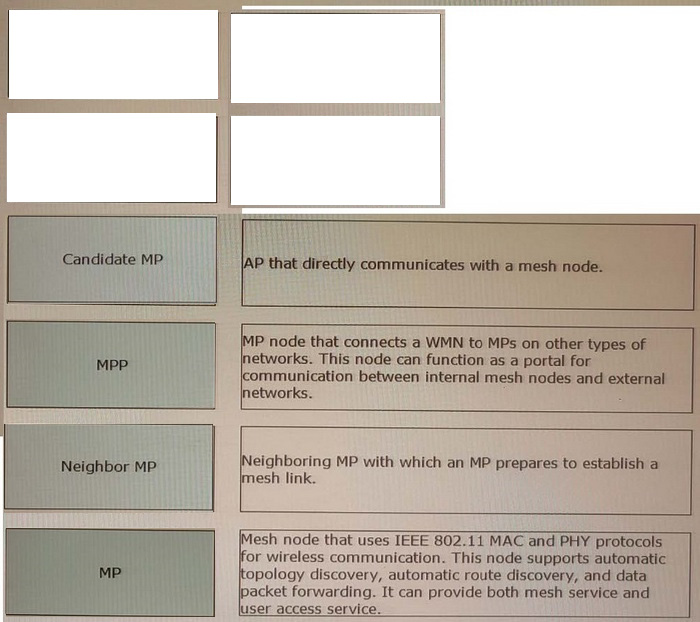

Correct answer diagram
Question 4 Multiple choice

Which of the following actions helps to mitigate co-channel interference in a dense deployment? (Select All that Apply)

  1. A

    Reduce AP transmit power

  2. B

    Use non-overlapping channels

  3. C

    Increase channel width

  4. D

    Enable dynamic channel assignment

Show answer and explanation

Correct answers: A, B, D

Question 5 Single choice

Satellite positioning can achieve high positioning accuracy in both indoor and outdoor scenarios.

  1. A

    True

  2. B

    False

Show answer and explanation

Correct answer: B

Question 6 Single choice

Which of the following items is not involved in the HLD phase?

  1. A

    Capacity planning

  2. B

    Network design

  3. C

    AP position planning

  4. D

    Deployment planning

Show answer and explanation

Correct answer: C

Question 7 Single choice

Which of the following statements about VXLAN is false?

  1. A

    A Layer 2 VXLAN gateway forwards traffic to a VXLAN network and can also be used for Intra-subnet communication on the same VXLAN network.

  2. B

    Layer 2 and Layer 3 VXLAN gateways must maintain VBDIF interfaces. Otherwise, users cannot communicate with each other through these interfaces.

  3. C

    A VBDIF interface is a logical interface created based on a BD. It is similar to a VLANIF interface on a traditional network.

  4. D

    A Layer 3 VXLAN gateway is used for inter-subnet communication on a VXLAN network and communication with external non-VXLAN networks.

Show answer and explanation

Correct answer: B

Question 8 Single choice

In 802. IX authentication using port-based access control, once a user is authenticated successfully on a port, subsequent users on this port can access the network without authentication. When the authenticated user goes offline, all other users are denied access to the network.

  1. A

    True

  2. B

    False

Show answer and explanation

Correct answer: A

Question 9 Multiple choice

Which of the following statements are true about data collection of IMaster NCE-Campuslnslght? (Select
All that Apply)

  1. A

    iMaster NCE-Campuslnsight uses telemetry to Implement efficient data collection.

  2. B

    Calculated data can be displayed on iMaster NCE-Campuslnsight only after a license Is loaded on the device management page.

  3. C

    To collect data from WLAN devices, ensure that WACs can communicate with the southbound IP address of iMaster NCE-Campuslnsight. APs do not need to communicate with the southbound IP address of iMaster NCE-Campuslnsight.

  4. D

    The UTC time of iMaster NCE-Campuslnsight must be the same as that of its managed devices.

Show answer and explanation

Correct answers: A, C

Question 10 Single choice

After multicast-to-unicast conversion is enabled on an AP's air interface, which of the followings is the destination MAC address of multicast packets sent over the air interface?

  1. A

    Multicast MAC address

  2. B

    MAC address of the multicast source

  3. C

    Broadcast MAC address

  4. D

    MAC address of a STA

Show answer and explanation

Correct answer: D
