Huawei H12-321 Online Practice Questions and Exam Preparation

Huawei H12-321 Online Questions & Answers

• Question 421:

  An enterprise needs to upgrade the AC. Which of the following methods is relatively secure to upload upgrade files to the AC?

  A. Use the AC as an SFTP client.
  B. Use the AC as an SFTP server.
  C. Use the AC as an FTP client.
  D. Use the AC as an FTP server.
  A. Use the AC as an SFTP client.

• Question 422:

  What is wrong about the load balancing algorithm described below?

  A. The load percentage is calculated by the formula (the number of users associated with the current RF / the maximum number of associated users supported by the current RF) ?100%
  B. Calculate the load percentage of all members in the equilibrium group and get the minimum value.
  C. Measure whether the allowed access is the difference between the percentage of the load of the AP radio that is pre-joined by the STA and the minimum value of the load percentage of all members, and compare this difference with the set load difference threshold (configured through the command line)
  D. If the STA continues to send an association request to the AP after rejecting the association, although the number of repetitions is greater than the set maximum number of rejection associations, the STA is eventually rejected.
  D. If the STA continues to send an association request to the AP after rejecting the association, although the number of repetitions is greater than the set maximum number of rejection associations, the STA is eventually rejected.

• Question 423:

  An enterprise needs to upgrade the AC. Which of the following methods is used to upload the upgrade file to the AC?

  A. AC as the SFTP Client
  B. AC as SFTP Server
  C. AC as an FTP Client
  D. AC as FTP Server
  A. AC as the SFTP Client

• Question 424:

  The following description of the Mesh wired port parameters is correct?

  A. Turning on user isolation is mainly for centralized accounting, which does not help improve user communication security.
  B. The wired port of the Mesh AP defaults to all VLANs.
  C. Mesh only supports adding ATM wired interfaces to VLANs in untagged form.
  D. Mesh supports adding ATM wired interfaces to VLANs in untagged and tagged formats.
  D. Mesh supports adding ATM wired interfaces to VLANs in untagged and tagged formats.

• Question 425:

  Which role does the Agile Controller serve in wireless access authentication?

  A. AD server
  B. LDAP server
  C. RADIUS server
  D. DNS server
  C. RADIUS server

• Question 426:

  Which statements about fast roaming are TRUE? (Multiple Choice)

  A. If the encryption and authentication mode is not WPA2+dotlx, non-fast roaming is implemented.
  B. Re-authentication is not required after fast roaming, and the STA only needs to complete 4-way key negotiation.
  C. Re-authentication is not required after fast roaming, and the STA does not need to complete 4-way key negotiation.
  D. Fast roaming can be implemented for any STA so long as APs support fast roaming.
  A. If the encryption and authentication mode is not WPA2+dotlx, non-fast roaming is implemented.
  B. Re-authentication is not required after fast roaming, and the STA only needs to complete 4-way key negotiation.

• Question 427:

  On a WLAN that uses the Agile Controller as the admission control server, which of the following is NOT the cause of 802.lx authentication failures?

  A. The key used by the Agile Controller to connect to the device is different from the key configured on the device.
  B. The accounting interval is not configured.
  C. Port 1813 is used on the server.
  D. The matched authorization rule defines the action "deny".
  B. The accounting interval is not configured.

• Question 428:

  Which statement about the Mesh network is FALSE?

  A. The Mesh network conforms to IEEE 802.11m.
  B. The Mesh network can both provide user access and forward wireless link signals.
  C. Multiple APs can form a Mesh network.
  D. Signals are routed from an AP to another within the Mesh network, and then transmitted to the wired network through the APs on a fixed path.
  A. The Mesh network conforms to IEEE 802.11m.

• Question 429:

  The following figure shows the Mesh configuration process. What are the contents of 5, 7, and 10 respectively?

  A. Refer to the Mesh template, configure the Mesh whitelist, and configure the Mesh template.
  B. Configure the Mesh whitelist, configure the Mesh template, and reference the Mesh template.
  C. Configure Mesh templates, reference Mesh templates, and configure Mesh whitelists.
  D. Configure a Mesh whitelist, reference a mesh template, and configure a mesh template.
  B. Configure the Mesh whitelist, configure the Mesh template, and reference the Mesh template.

• Question 430:

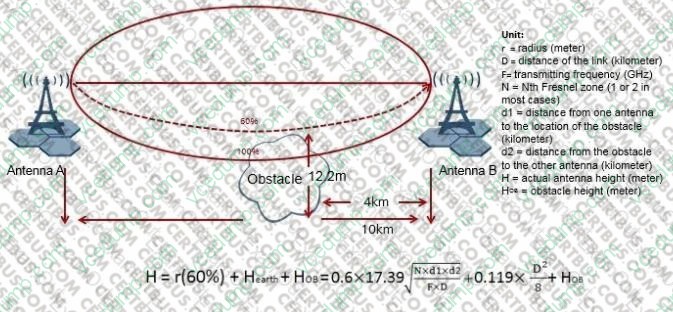

  As shown in the figure, a 12.2 m high tree is an obstacle on a 10 km point-to-point communication link. The distance between the tree and one of the antennas is 4 km. If the signal transmission frequency is 5.8 GHz, what is the minimum installation height of the receive and transmit antennas based on the following formula and the Fresnei zone radius at the 4 km point?



  A. 16 m
  B. 19 m
  C. 22 m
  D. 26 m
  B. 19 m
