Extreme Networks EW0-100 Online Practice Questions and Exam Preparation

Extreme Networks EW0-100 Online Questions & Answers

• Question 51:

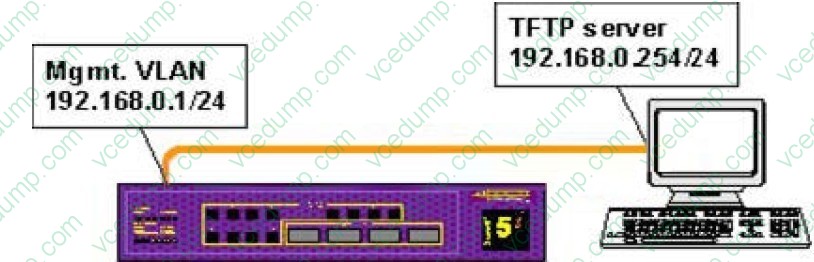

  Exhibit:



  Given the following diagram, which command would you use to send a switch configuration from the TFTP server to the switch?

  A. download config 192.168.0.254
  B. download config 192.168.0.1
  C. upload config 192.168.0.254
  D. upload config 192.168.0.1
  A. download config 192.168.0.254

• Question 52:

  Only one Type-3 LSA appears in the router's LSDB though there are multiple networks in the neighboring OSPF area . Which of the following commands created this result?

  A. config ospf area add range advertise type-3
  B. config ospf area add range advertise type-4
  C. config ospf area add range advertise type-5
  D. config ospf area add range advertise type-7
  A. config ospf area add range advertise type-3

• Question 53:

  In order for a static route to not forward broadcast or multicast traffic the __________ keyword must be used when it is configured.

  unicast-only

• Question 54:

  Why would the protocol for VLAN corporate listed as none?

  A. It is not possible for a VLAN to have NONE listed as the protocol.
  B. A protocol filter was added to the VLAN. That protocol filter was later deleted fromthe switch.
  C. A protocol filter has not yet been added to the VLAN.
  D. None of these.
  B. A protocol filter was added to the VLAN. That protocol filter was later deleted fromthe switch.

• Question 55:

  When configuring a point-to-point OSPF connection what is the relevance of the command config ospf vlan neighbor add ?

  A. The switch no longer needs to determine the ABR.
  B. Permanent virtual links are established to the backbone area.
  C. This prevents other switches from disrupting the existing adjacency.
  D. This command must be used when a switch is added to a new area.
  C. This prevents other switches from disrupting the existing adjacency.

• Question 56:

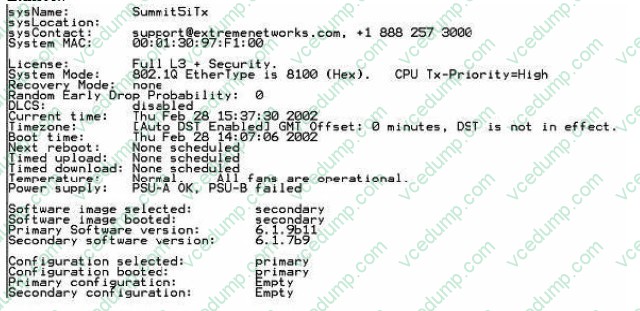

  Exhibit:



  Select the options that would allow you to change the active ExtremeWare version to 6.1.9b11 upon reboot.

  A. use image primary
  B. download config primary
  C. use config primary
  D. download image primary
  A. use image primary

• Question 57:

  ExtremeWare can automatically upload the active configuration via FTP.

  A. True
  B. False
  B. False

• Question 58:

  Like OSPF stub areas, NSSA areas cannot be used as transit areas for virtual links.

  A. True
  B. False
  A. True

• Question 59:

  If a switch's root bridge and bridge ID are the same, it is:

  A. Not participating in spanning tree.
  B. Directly adjacent to the root bridge.
  C. The root bridge.
  D. None of these.
  C. The root bridge.

• Question 60:

  How can you tell which ports are disabled?

  A. Flashing amber light
  B. Flashing green light
  C. Flashing red light
  D. None of these
  B. Flashing green light
