Extreme Networks EW0-100 Online Practice Questions and Exam Preparation

Extreme Networks EW0-100 Online Questions & Answers

• Question 21:

  What options must be configured when running ESRP and Spanning Tree within the same VLAN on the same switch?

  A. ESRP groups must be configured.
  B. ESRP domains must be configured.
  C. ESRP host-attach must be configured.
  D. ESRP and STP are not supported on the same switch.
  D. ESRP and STP are not supported on the same switch.

• Question 22:

  Which of the following is a predefined protocol filter?

  A. IPX_8022
  B. UDP
  C. IPX_8023
  D. None of these.
  A. IPX_8022

• Question 23:

  Which of the following are ways the IP route table becomes populated?

  A. access policies
  B. IPX RIP
  C. OSPF
  D. None of these.
  C. OSPF

• Question 24:

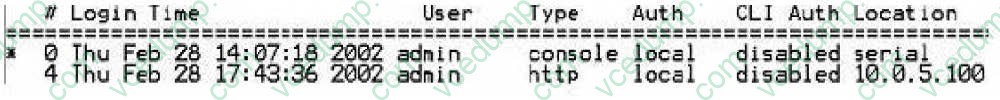

  Exhibit:



  After using the disable web command you later issue the show session command and see the following. How was it possible for someone to login through ExtremeWare Vista?

  A. Admin level accounts can always login through console, telnet, and HTTP.
  B. You did not reboot after issuing the disable web command.
  C. You did not save the configuration after issuing the disable web command.
  D. The disable web command does not exist.
  B. You did not reboot after issuing the disable web command.

• Question 25:

  OSPF area 0.0.0.0 is connected to area 1.1.1.1. Stub area 2.2.2.2 is connected to area 1.1.1.1. Area 2.2.2.2 routers show only directly connected networks in their IP route tables. What must you do to resolve this situation?

  A. Create a virtual link between areas 0.0.0.0 and 2.2.2.2.
  B. Create a virtual link between areas 2.2.2.2 and 0.0.0.0.
  C. Create a virtual link between areas 1.1.1.1 and 2.2.2.2.
  D. Create a virtual link between areas 1.1.1.1 and 0.0.0.0.
  A. Create a virtual link between areas 0.0.0.0 and 2.2.2.2.
  B. Create a virtual link between areas 2.2.2.2 and 0.0.0.0.

• Question 26:

  How would you schedule a configuration download to occur at regular intervals?

  A. download config
  B. download config
  C. download config every
  D. download config every
  D. download config every

• Question 27:

  SNMP access to ExtremeWare can be limited by the following methods:

  A. Use an access list
  B. Use an access profile
  C. Use the disable snmp access command
  D. None of these
  A. Use an access list
  B. Use an access profile
  C. Use the disable snmp access command

• Question 28:

  What is the default value for the RIP routetimeout setting?

  A. 30 seconds
  B. 60 seconds
  C. 120 seconds
  D. 180 seconds
  D. 180 seconds

• Question 29:

  Applying more than eight QoS classifications per switch is not recommended due to performance degredation.

  A. True
  B. False
  B. False

• Question 30:

  Without QoS, all packets are allowed equal access to an egress port.

  A. True
  B. False
  A. True
