Extreme Networks EW0-100 Online Practice Questions and Exam Preparation

Extreme Networks EW0-100 Online Questions & Answers

• Question 11:

  Which of the following is a predefined protocol filter?

  A. IP
  B. SMB
  C. RPC
  D. None of these.
  A. IP

• Question 12:

  Area 0.0.0.0 contains two networks: 10.15.0.0 and 10.20.0.0. Which command should be used in order for only one Summary LSA from area 0.0.0.0 to appear in the LSDB of area 1.1.1.1?

  A. config ospf area 0.0.0.0 add range 10.0.0.0/16 advertise type-3
  B. config ospf area 0.0.0.0 add range 10.0.0.0/24 advertise type-3
  C. config ospf area 0.0.0.0 add range 10.0.0.0/32 add type-3
  D. config ospf area 0.0.0.0 add range 10.0.0.0/8 add type-3
  D. config ospf area 0.0.0.0 add range 10.0.0.0/8 add type-3

• Question 13:

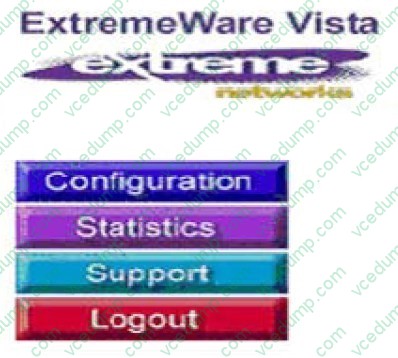

  Exhibit:



  Given this display, how would you find information similar to the SHOW SWITCH command?

  A. Click on STATISTICS, then SHOW, then SWITCH.
  B. Click on STATISTICS, then SWITCH, then SHOW.
  C. Click on STATISTICS, then SHOW.
  D. Click on STATISTICS, then SWITCH.
  D. Click on STATISTICS, then SWITCH.

• Question 14:

  When enabling load sharing in an Extreme switch, only a single switch must be configured. The switches will auto-negotiate the port sharing settings via the EDP protocol.

  A. True
  B. False
  B. False

• Question 15:

  Which of these are valid load sharing algorithms?

  A. MAC-based
  B. Ratio-based
  C. Round robin-based
  D. All of these.
  C. Round robin-based

• Question 16:

  What console port baud rate is suggested when performing a serial download of an ExtremeWare image to the switch?

  A. 38400
  B. 57600
  C. 115200
  D. None of these.
  A. 38400

• Question 17:

  OSPF area 20.20.20.20 connects to OSPF area 2.2.2.2. The network has been running for a week without issues. While examining the LSDB of an internal router in area 20.20.20.20, the network administrator sees that there are no Type-2

  LSAs for area 2.2.2.2 listed. The network administrator asks your opinion about this.

  What do you say?

  A. Type-2 LSAs are not forwarded outside of their area.
  B. Type-2 LSAs are not seen because Type-4 LSAs are enabled.
  C. Type-5 LSAs include the necessary Type-2 LSA information.
  D. None of these.
  A. Type-2 LSAs are not forwarded outside of their area.

• Question 18:

  The steps for OSPF to begin routing packets are:

  A. Hello packet exchange à LSA exchange à LSDB synchronization à OSPF routingtable calculation à OSPF routing
  B. LSA exchange à LSDB synchronization à Hello packet exchange à OSPF routing tablecalculation à OSPF routing
  C. Hello packet exchange à LSA exchange à LSDB synchronization à OSPF routing àOSPF routing table calculation
  D. None of these.
  A. Hello packet exchange à LSA exchange à LSDB synchronization à OSPF routingtable calculation à OSPF routing

• Question 19:

  Which of the following can you use to create a router interface?

  A. Create a VLAN and assign ports to it.
  B. Create a VLAN, assign ports to it, and assign it an IP address and subnet mask.
  C. Create a VLAN and assign it an IP address and subnet mask.
  D. None of these.
  B. Create a VLAN, assign ports to it, and assign it an IP address and subnet mask.

• Question 20:

  How do you disable Poison Reverse?

  A. disable rip poisonreverse noadvertise
  B. disable poisonreverse rip noadvertise
  C. disable rip poisonreverse
  D. disable poisonreverse rip
  C. disable rip poisonreverse
