EMC E20-616 Online Practice Questions and Exam Preparation

EMC E20-616 Online Questions & Answers

• Question 31:

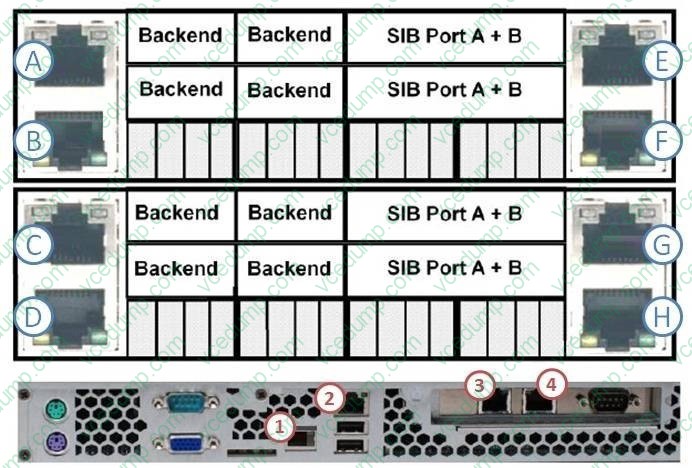

  Refer to the Exhibit.



  While configuring a Multi-Engine VMAX 20K, the CE is connecting Engine numbers 4 and 5 with cables. What is the type and sequence of connections required to connect the Lowest Engine number?

  A. Purple Cable; connects F to G and H to 3
  B. Green Cable; connects F to G and H to 3
  C. Purple Cable; connects F to G and E to 3
  D. Green Cable; connects F to G and E to 3
  B. Green Cable; connects F to G and H to 3

• Question 32:

  What is the vault hyper size in GB for configuring a new VMAX 40K?

  A. 9
  B. 5
  C. 4.5
  D. 0.5
  A. 9

• Question 33:

  Refer to the Exhibit.



  What is the purpose of 'A' as illustrated in the configuration tool bar selections?

  A. Saves IMPL file to disk under the same name and folder.
  B. Saves IMPL bin under a different name and folder.
  C. Saves changes made in current window, which is required before closing.
  D. Tests configuration changes made in this window.
  A. Saves IMPL file to disk under the same name and folder.

• Question 34:

  You are configuring a VMAX 40K for an Open Sytems host. Where can you find the current VMAX 40K Simple Support Matrix?

  A. ELab Navigator
  B. Powerlink
  C. GS SSR web site
  D. Primus server
  A. ELab Navigator

• Question 35:

  A customer using a VMAX 20K containing 2 high density storage bays, each containing 250 drives wants to expand their capacity with 100 drives. What is the least expensive way to expand the existing configuration, but still a good choice for optimal performance in this configuration?

  A. Add two DAEs to each storage bay, each containing 25 drives
  B. Add four DAEs to the first storage bay, each containing 25 drives
  C. Add two storage bays, one to each loop and each bay containing 2 DAEs with 25 drives each
  D. Add one storage bay containing four DAEs with 25 drives each to the first loop
  A. Add two DAEs to each storage bay, each containing 25 drives

• Question 36:

  You are reviewing a VMAX configuration and find 4 TDAT devices. Which type of Symmetrix VMAX feature is configured?

  A. Cascaded
  B. Auto-Provsioning
  C. Virtual-Provisioning
  D. SNAP
  C. Virtual-Provisioning

• Question 37:

  You are installing a VMAX 40K with dispersed System Bay.

  Which length cables are required to provide back-to-back separation?

  A. 25M
  B. 10M
  C. 3.6M
  D. 20M
  A. 25M

• Question 38:

  Which procedure wizard option would you use to validate the configuration before it is loaded into the Symmetrix system?

  A. Simulation Utility
  B. Procedure Utility
  C. Configuration Utility
  D. Comparison Utility
  A. Simulation Utility

• Question 39:

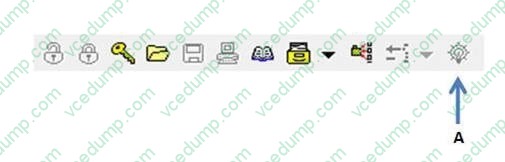

  Refer to the exhibit.



  What is the purpose of the "A" icon?

  A. Door LED indicator
  B. SymmWin Wizard
  C. Log Browser
  D. Configuration performance Check
  A. Door LED indicator

• Question 40:

  Which RAID 6 configuration is supported by Symmetrix?

  A. RAID 6 (14+2)
  B. RAID 6 (14+1)
  C. RAID 6 (7+1)
  D. RAID 6 (4+2)
  A. RAID 6 (14+2)
