EMC DES-5221 Online Practice Questions and Exam Preparation

EMC DES-5221 Online Questions & Answers

• Question 11:

  On what does PBR base routing decisions?

  A. Dijkstra Algorithm
  B. Batch traffic
  C. Administrator-defined forwarding
  D. Shortest path
  C. Administrator-defined forwarding

• Question 12:

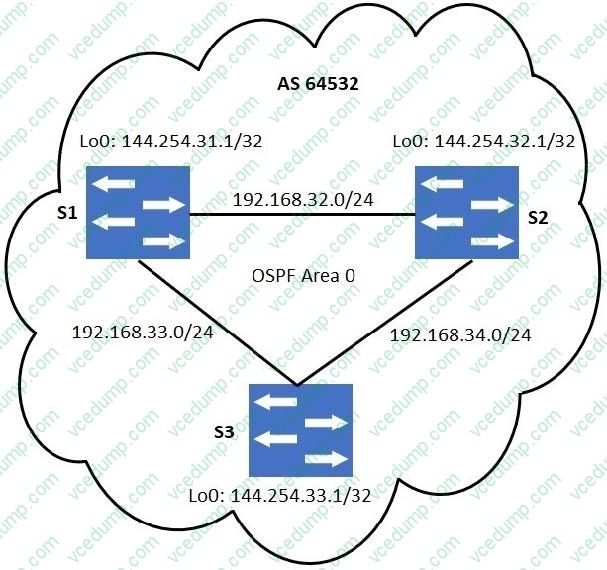

  Refer to the exhibit.

  No static routing has been configured. For iBGP loopback-based peering, which statement is correct?

  A. It is not necessary for the routing table on S1 to have an entry for the loopback network of S3.
  B. S1 should have the Loopback network of S3 in its routing table for loopback-based peering.
  C. For iBGP peering, physical interface addresses must be used.
  D. A static route on S1 to 144.254.32.1/32 will eliminate the need for loopback-based peering with S3.
  B. S1 should have the Loopback network of S3 in its routing table for loopback-based peering.

• Question 13:

  From which range can a network administrator choose when setting the RSTP priority value?

  A. 1-6400
  B. 0-61440
  C. 0-614400
  D. 1-64
  B. 0-61440

• Question 14:

  When configuring a vrf instance for the management interface that has been in use, what step must be done first to configure it?

  A. Configure a management route
  B. Remove the default route
  C. Remove all configured settings
  D. Configure an IP Address
  C. Remove all configured settings

• Question 15:

  Which command shows whether a LAG protocol is static or dynamic on a Dell EMC Networking OS10 switch?

  A. show lacp neighbor
  B. show running-configuration lacp
  C. show interface port-channel summary
  D. show port-channel summary
  D. show port-channel summary

• Question 16:

  What is a valid OS10 iBGP configuration?

  A. S2(config)# router bgp 64507 S2(config-router-bgp-64507)# peer-as 64507 S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown
  B. S2(config)# router bgp 64507 S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-bgp-64507)# remote-as 64507 S2(config-router-bgp-64507)# update-source loopback 0 S2(config-router-bgp-64507)# no shutdown
  C. S2(config)# router bgp 64507 S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# remote-as 64507 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown
  D. S2(config)# router bgp 64507 S2(config-router-bgp-64507)# remote-as 64507 S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown
  C. S2(config)# router bgp 64507 S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# remote-as 64507 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

• Question 17:

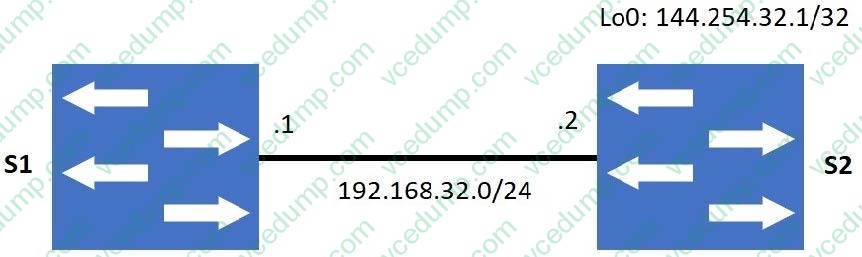

  Refer to the exhibit.

  Which configuration will allow S1 to ping S2's Lo0 address?

  A. S1(config-router)# ip route 144.254.32.1 192.168.32.2/32
  B. S1(config-router)# ip route 192.168.32.2 144.254.32.1/32
  C. S1(config)# ip route 144.254.32.1/32 192.168.32.2
  D. S1(config)# ip route 192.168.32.2 144.254.32.1/32
  C. S1(config)# ip route 144.254.32.1/32 192.168.32.2

• Question 18:

  Two OS10 switches reside within a VLT domain with statically configured primary-priorities. The current primary peer, switch OS10-A, has a priority of 100, while the secondary peer, OS10-B, has a priority of 200. If OS10-A reboots and comes back online, what roles will the VLT peers be assigned?

  A. OS10-A will be primary and OS10-B will be secondary.
  B. OS10-A will be secondary and OS10-B will be master.
  C. OS10-A will be standby and OS10-B will be primary.
  D. OS10-A will be secondary and OS10-B will be primary.
  D. OS10-A will be secondary and OS10-B will be primary.

• Question 19:

  How are multiple hardware based ACLs filtered?

  A. NTP
  B. DHCP
  C. NPU
  D. IP
  C. NPU

• Question 20:

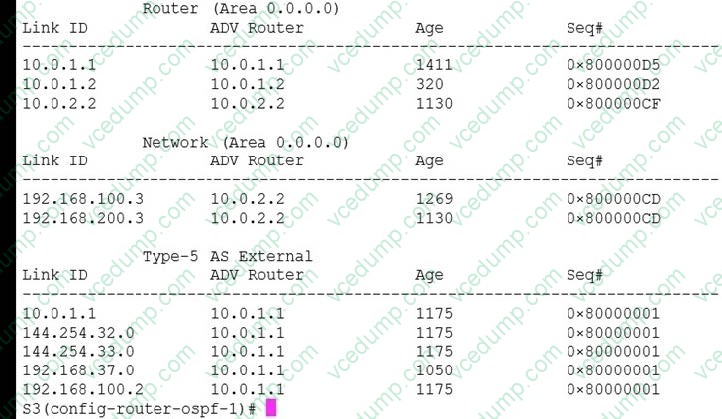

  Refer to the exhibit.

  The output shown is from which command?

  A. S3(config-router-ospf-1)# show ip ospf database
  B. S3(config-router-ospf-1)# show ip ospf topology
  C. S3(config-router-ospf-1)# show ip ospf lsa
  D. S3(config-router-ospf-1)# show ip ospf statistics
  A. S3(config-router-ospf-1)# show ip ospf database
