Dell DES-5121 Online Questions & Answers

• Question 11:

  Which technologies can be implemented when configuring policy-based routing?

  A. Policy-maps, Extended ACLs, and MAC ACLs
  B. Policy-maps, Route-maps, and Extended ACLs
  C. Route-maps, Extended ACLs, and MAC ACLs
  D. Route-maps, Policy-maps, and MAC ACLs
  B. Policy-maps, Route-maps, and Extended ACLs

• Question 12:

  A user's workstation is connected to an IP phone that is connected to a Dell EMC N-Series switch. Which type of traffic is typically tagged or untagged?

  A. Data = tagged, Voice = untagged
  B. Data = untagged, Voice = untagged
  C. Data = tagged, Voice = tagged
  D. Data = untagged, Voice = tagged
  D. Data = untagged, Voice = tagged

• Question 13:

  A network administrator wants to configure an ACL to deny traffic for a specific source IP and source UDP port. Which type of ACL should be used?

  A. Layer 2 Standard ACL
  B. Layer 2 Extended ACL
  C. Layer 3 Standard ACL
  D. Layer 3 Extended ACL
  D. Layer 3 Extended ACL

• Question 14:

  Which switchport mode is recommended for ports on a Dell EMC N-Series switch with IP phones using voice VLAN?

  A. Access
  B. Active
  C. Hybrid
  D. General
  D. General

• Question 15:

  In order to alter a packet's routing direction, which packet layers can policy-based routing use?

  A. Transport, Network, Link Layer, and Physical
  B. Link Layer, Physical, Presentation, and Session
  C. Network, Link Layer, Physical, and Session
  D. Application, Transport, Network, and Link Layer
  A. Transport, Network, Link Layer, and Physical

• Question 16:

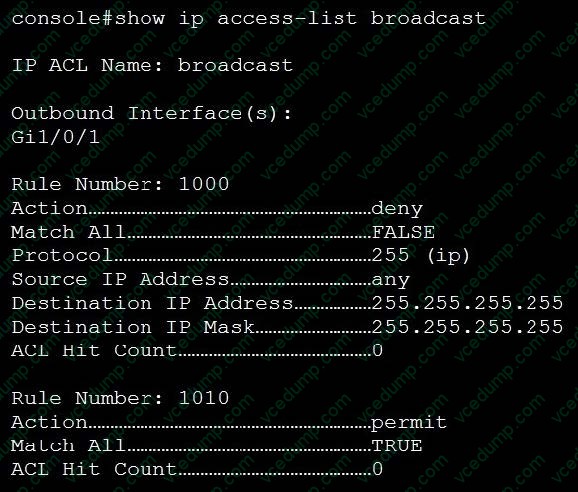

  Refer to the exhibit.



  A network administrator has created an ACL to block broadcast traffic to their server on port Gi1/0/1. Why is the ACL not functioning as desired?

  A. ACL is not applied in the correct direction
  B. ACLs do not support broadcast traffic
  C. Destination address mask is incorrect
  D. Destination IP address is incorrect
  A. ACL is not applied in the correct direction

• Question 17:

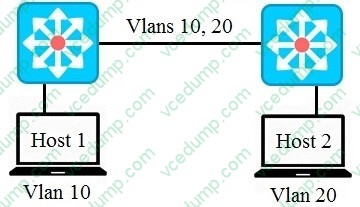

  Refer to the Exhibit.



  A network administrator needs to configure the switches to allow traffic to communicate from Host 1 to Host 2. Which recommended switch port mode should the interconnecting switch ports be configured?

  A. Access
  B. Trunk
  C. VLAN Stacking
  D. Hybrid
  B. Trunk

• Question 18:

  You need to configure OSPF on a DNOS 6 switch and have entered the following:

  Switch-1(config)# ip routing Switch-1(config)# interface vlan 20 Switch-1(config-if-vlan20)# ip address 10.1.20.1 255.255.255.0

  Switch-1(config)# router ospf Switch-1(config-router)# router-id 10.1.1.1

  Based on the information referenced above, what is missing from the configuration?

  A. area 0 is missing from the ip routing command
  B. ip ospf area 0 is missing from the interface vlan 20 section
  C. router ospf is missing the routing instance
  D. area 0 is missing from the router-id command
  B. ip ospf area 0 is missing from the interface vlan 20 section

• Question 19:

  A customer is upgrading their campus network Access layer switches. They require 2-10GbE uplinks, 48-1GbE ports with PoE, and stacking capability of up to 12 units. Which Dell EMC N-Series model will meet the customer's requirements?

  A. N1100 Series
  B. N1500 Series
  C. N2000 Series
  D. N4000 Series
  C. N2000 Series

• Question 20:

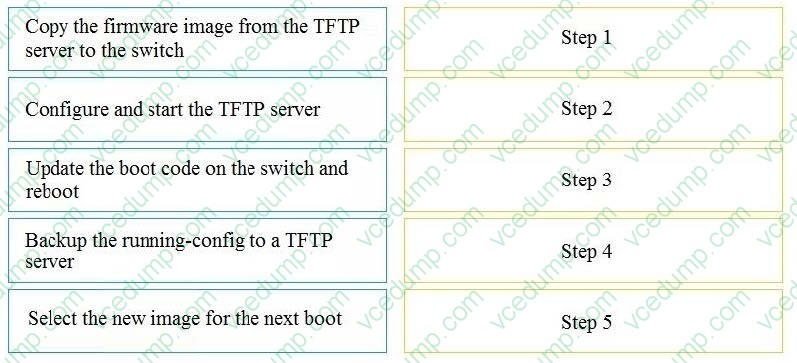

  DRAG DROP

  What is the typical sequence of steps to upgrade the firmware of a Dell EMC N-Series switch?

  Select and Place:
