• Question 11:

  SIMULATION

  You will need to use the PowerEdge Simulator to correctly answer questions in this Part. The simulator allows you to navigate through the PowerEdge interface and configure many items. You will be scored on your ability to perform tasks, configure items, and gather information within the simulated environment.

  Using the iDRAC UI, generate and save locally a SupportAssist collection with system information and debug logs only.



  A. Please check the explanation
  B. PlaceHolder
  C. PlaceHolder
  D. PlaceHolder
  A. Please check the explanation

  ---

  Explanation

  To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

  Step-by-Step Guide:

  Access SupportAssist in iDRAC:

  In the iDRAC interface, navigate to the Maintenance tab in the top menu.

  From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

  Initiate a Collection:

  In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

  Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

  Select Collection Components:

  When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

  Ensure no other components are selected to limit the collection to just the required data.

  Start the Collection:

  Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

  Save the Collection Locally:

  Once the collection is complete, you should see an option to Download or Save the file.

  Click the download link and save the collection file locally on your computer.

  Verify the Collection File:

  Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

  By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

• Question 12:

  Which two memory settings optimize a PowerEdge 16G server to support VMware ESXi?

  A. Near Balanced Configuration and Dell Fault Resilient Mode
  B. Balanced Memory Configuration and Dell Fault Resilient Mode
  C. Balanced Memory Configuration and Optimizer Mode
  D. Near Balanced Configuration and Optimizer Mode
  C. Balanced Memory Configuration and Optimizer Mode

  ---

  Explanation

  Optimizing Memory Settings for VMware ESXi on a Dell PowerEdge 16G Server Server Components (26%) Define the different processor, memory options, and memory configurations Understanding Memory Configuration Options

  When configuring a Dell PowerEdge 16th Generation (16G) server to support VMware ESXi, it's crucial to optimize memory settings for performance and reliability. The two memory settings that best optimize the server for VMware ESXi are: Balanced Memory Configuration Optimizer Mode

  1.Balanced Memory Configuration

  A balanced memory configuration ensures that memory modules (DIMMs) are evenly distributed across all memory channels and CPUs. This maximizes memory bandwidth and performance by enabling the server to utilize all available

  memory channels effectively.

  Benefits for VMware ESXi:

  Improved Performance: Balanced configurations reduce memory latency and increase throughput, which is essential for virtualization workloads.

  Enhanced Stability: Ensures consistent performance across virtual machines (VMs) by preventing memory bottlenecks.

  Dell Operate

  Server Components (26%): Emphasizes the importance of memory configurations and their impact on server performance.

  2.Optimizer Mode

  Optimizer Mode is a BIOS setting that configures the memory for optimal performance. It arranges the memory in a way that prioritizes speed and efficiency, typically by disabling features like memory mirroring or sparing that can reduce

  performance.

  Benefits for VMware ESXi:

  Maximum Memory Performance: Optimizer Mode allows the server to achieve the highest possible memory speeds.

  Ideal for Virtualization: VMware ESXi benefits from fast memory access, which improves VM performance and responsiveness.

  Dell Operate

  System Administration (18%): Configuring BIOS settings is critical for optimizing server operations, particularly for specific workloads like virtualization.

  Why the Other Options Are Less Optimal

  Near Balanced Configuration:

  This configuration is close to balanced but may have slight imbalances due to uneven DIMM distribution.

  Impact: Can lead to suboptimal performance compared to a fully balanced configuration.

  Dell Fault Resilient Mode:

  A memory mode that reserves a portion of memory for critical applications to protect against memory errors.

  Impact: Reduces available memory for VMs and can decrease overall performance, which is not ideal for VMware ESXi environments that require maximum memory resources.

  Conclusion

  For optimizing a Dell PowerEdge 16G server to support VMware ESXi, selecting Balanced Memory Configuration and Optimizer Mode ensures the best performance and resource utilization. These settings maximize memory bandwidth and

  speed, which are critical for virtualization workloads.

• Question 13:

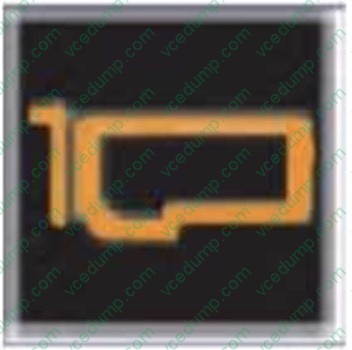

  Exhibit.



  A customer notices that an indicator on the left control panel of the PowerEdge Server has turned solid amber. What does this indicate?

  A. PCIe card is present.
  B. PCIe card performing a firmware update.
  C. PCIe card temperature is normal.
  D. PCIe card experiences an error.
  D. PCIe card experiences an error.

  ---

  Explanation

  Dell PowerEdge servers are equipped with various LED indicators on the left control panel to provide immediate visual feedback about the server's status and component health. These indicators help in quickly identifying and troubleshooting

  issues without needing to access the system logs immediately.

  Analyzing the Visual Indicators (Server Troubleshooting - 32%)

  As per the "Server Troubleshooting" section, one of the key skills is to "Analyze the visual indicators on server components - system ID, PSU, and BLINK."

  Color Codes and Their Meanings

  Solid Green Light: Indicates normal operation.

  Blinking Green Light: Indicates activity (such as data transfer).

  Solid Amber Light: Indicates a fault or error condition.

  Blinking Amber Light: Indicates a critical error or failure.

  Application to the PCIe Card Indicator

  In this scenario, the customer notices that an indicator on the left control panel has turned solid amber . Specifically, this indicator is associated with the PCIe card.

  Option A: "PCIe card is present."

  Presence is usually indicated by a solid green light, not amber.

  Option B: "PCIe card performing a firmware update."

  Firmware updates are often indicated by blinking lights but typically not solid amber.

  Option C: "PCIe card temperature is normal."

  Normal temperature conditions would not trigger an amber light; instead, they would maintain a solid green light.

  Option D: "PCIe card experiences an error."

  A solid amber light directly correlates with an error condition in the component.

  Conclusion

  Given the meaning of the solid amber indicator and its association with error conditions in Dell PowerEdge servers, the correct interpretation is that the PCIe card is experiencing an error.

  Dell Operate References

  Server Components (26%): Understanding server components like PCIe cards is crucial.

  Server Troubleshooting (32%): Analyzing visual indicators is a key troubleshooting step.

  Analyze the visual indicators on server components: Knowing the significance of LED colors aids in swift problem identification.

• Question 14:

  What is indicated when the Mid-Bay hard drive LED indicator is solid amber?

  A. Hard Drive has been removed.
  B. Hard Drive temperature is normal.
  C. Hard Drive has lost connectivity with the PERC.
  D. Hard Drive has entered a predictive failure status.
  C. Hard Drive has lost connectivity with the PERC.

  ---

  Explanation

  Understanding Hard Drive LED Indicators in Dell PowerEdge Servers

  Server Troubleshooting (32%)

  Analyze the visual indicators on server components - system ID, PSU, and BLINK

  Overview

  Dell PowerEdge servers utilize LED indicators on hard drive carriers to provide immediate visual feedback on the status of the drives. These indicators are essential for quick diagnostics and troubleshooting.

  Hard Drive LED Indicator Meanings

  Typically, the hard drive carrier has two LEDs:

  Activity LED (Green): Indicates drive activity (read/write operations).

  Status LED (Green/Amber): Indicates the status of the drive.

  Status LED Colors and Patterns

  Off: Drive is not present or powered off.

  Solid Green: Drive is online and functioning normally.

  Blinking Green: Drive is being accessed or undergoing initialization.

  Blinking Amber: Drive has entered a predictive failure state (SMART alerts).

  Solid Amber: Drive has failed or lost connectivity.

  Analyzing the Scenario

  Solid Amber LED on Mid-Bay Hard Drive: This indicates a critical issue with the drive.

  Explanation of Options

  Option A: Hard Drive has been removed

  Analysis: If the drive is removed, the status LED would be off because there is no power to the drive.

  Conclusion: Incorrect.

  Option B: Hard Drive temperature is normal

  Analysis: A normal temperature would not trigger an amber LED. Temperature warnings are usually indicated by system alerts or different LED patterns.

  Conclusion: Incorrect.

  Option C: Hard Drive has lost connectivity with the PERC

  Analysis: A solid amber LED often means the drive is not communicating with the RAID controller (PERC). This could be due to a failed drive or a connectivity issue.

  Conclusion: Correct Answer.

  Option D: Hard Drive has entered a predictive failure status

  Analysis: Predictive failures are typically indicated by a blinking amber LED, warning of impending drive failure.

  Conclusion: Incorrect.

  Dell Operate References

  Server Troubleshooting (32%)

  Analyze the visual indicators on server components: Understanding LED indicators is crucial for diagnosing hardware issues promptly.

  Server Components (26%)

  Define storage options, Drives, PERC: Knowledge of drive statuses and RAID controller interactions aids in accurate troubleshooting.

  Conclusion

  A solid amber LED on the hard drive indicates that the drive has failed or lost connectivity with the PERC controller. This status requires immediate attention to replace the drive or resolve the connectivity issue to prevent data loss.

• Question 15:

  What are two use cases for using a graphic processing unit (GPU)? (Select 2)

  A. Programmable for a particular application-specific purpose.
  B. Improve performance by accelerating networking hardware.
  C. Model and analyze signal data streams in real time.
  D. Isolate tenants from host management in a cloud landlord-tenant setting.
  E. Accelerate HPC and Al by using financial data for analysis of risk and return.
  C. Model and analyze signal data streams in real time.
  E. Accelerate HPC and Al by using financial data for analysis of risk and return.

  ---

  Explanation

  Understanding GPU Use Cases

  Server Components (26%)

  Explain how expansion cards are connected and the features of the GPU Overview of GPUs in Servers

  Graphics Processing Units (GPUs) are specialized processors designed to handle complex mathematical computations, particularly those involving parallel processing.

  Use Cases:

  High-Performance Computing (HPC)

  Artificial Intelligence (AI) and Machine Learning

  Real-Time Data Processing

  Modeling and Simulation

  Evaluation of Options

  Option A: Programmable for a particular application-specific purpose

  This describes Field-Programmable Gate Arrays (FPGAs), not GPUs. FPGAs can be programmed for specific tasks at the hardware level.

  Conclusion: Not a typical GPU use case.

  Option B: Improve performance by accelerating networking hardware

  Network acceleration is typically achieved using specialized network interface cards (NICs) or SmartNICs, not GPUs.

  Conclusion: Not a GPU use case.

  Option C: Model and analyze signal data streams in real time

  GPUs excel at processing large amounts of data in parallel, making them ideal for real-time signal processing and data stream analysis.

  Conclusion: Correct Answer

  Option D: Isolate tenants from host management in a cloud landlord-tenant setting

  This pertains to virtualization and security features, such as virtual machines and hypervisors, not specifically GPUs.

  Conclusion: Not a GPU use case.

  Option E: Accelerate HPC and AI by using financial data for analysis of risk and return

  GPUs accelerate HPC and AI workloads by handling complex computations efficiently. Analyzing financial data for risk and return is a common AI application that benefits from GPU acceleration.

  Conclusion: Correct Answer

  Dell Operate References

  Server Components (26%)

  Explain how expansion cards are connected and the features of the GPU: Understanding the role of GPUs in enhancing server capabilities for specific workloads.

  Conclusion

  The two correct use cases for GPUs are:

  Option C: Modeling and analyzing signal data streams in real time.

  Option E: Accelerating HPC and AI tasks, such as analyzing financial data for risk assessment.

  These use cases leverage the GPU's ability to process large volumes of data efficiently, improving performance for compute-intensive applications.

• Question 16:

  SIMULATION

  You will need to use the PowerEdge Simulator to correctly answer questions in this Part. The simulator allows you to navigate through the PowerEdge interface and configure many items. You will be scored on your ability to perform tasks, configure items, and gather information within the simulated environment.

  Click the Launch Simulator button.

  Using the iDRAC UI, what is listed as the Cache Memory Size for the H965i storage controller?

  Note: It is necessary to close (x) the simulator window before you can select a response to this question.



  A. 965 MB
  B. 8361 MB
  C. 1064 MB
  D. 8 GB
  D. 8 GB

  ---

  Explanation

  Launch the Simulator:

  Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

  Navigate to System Information:

  In the top menu bar, select the "Configuration" tab.

  From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

  Check the H965i Storage Controller:

  Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

  Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

• Question 17:

  Under which heading can the user locate Lifecycle logs in the iDRAC Ul?

  A. System
  B. System event log
  C. Diagnostics
  D. Maintenance
  D. Maintenance

  ---

  Explanation

  ocating Lifecycle Logs in the iDRAC UI Server Troubleshooting (32%) Explain the server logs and memory error Understanding Lifecycle Logs

  The Lifecycle Controller logs (Lifecycle Logs) are essential for tracking system events related to hardware configuration, firmware updates, and system health. These logs provide valuable information for troubleshooting and auditing

  purposes.

  Accessing Lifecycle Logs in iDRAC UI

  In the iDRAC web interface, administrators can navigate through various sections to access system information and logs.

  To locate the Lifecycle Logs:

  Log into the iDRAC Web Interface using your administrative credentials.

  Navigate to the "Maintenance" Tab:

  This section is dedicated to maintenance tasks and logs.

  Select "System Event Log" or "Lifecycle Log" under the Maintenance section to view the detailed logs.

  Explanation of Options

  Option A: System

  Incorrect: This section provides system overview and hardware information but does not contain the Lifecycle Logs.

  Option B: System Event Log

  Incorrect: While this log contains events, the Lifecycle Logs are specifically found under the Maintenance section.

  Option C: Diagnostics

  Incorrect: This area is used for running diagnostic tests, not for accessing Lifecycle Logs.

  Option D: Maintenance

  Correct Answer: The Lifecycle Logs are located under the Maintenance heading in the iDRAC UI.

  Dell Operate References

  Server Troubleshooting (32%): Accessing and interpreting server logs is vital for diagnosing issues.

  Explain the server logs and memory error: Understanding where logs are stored helps in efficient troubleshooting. Server Management and Configuration Tools (14%): Navigating the iDRAC UI is crucial for system administration tasks. Conclusion

  By knowing that the Lifecycle Logs are located under the Maintenance section, administrators can quickly access important system event information necessary for troubleshooting and maintaining server health.

• Question 18:

  What is a characteristic of Dell PowerEdge server out-of-band management?

  A. Cannot manage a powered off device
  B. Gives firmware update access to all users
  C. Network connection separate from data source
  D. Requires an operating system level agent
  C. Network connection separate from data source

  ---

  Explanation

  Understanding Dell PowerEdge Server Out-of-Band Management

  Server Management and Configuration Tools (14%)

  Define in-band and OOB management and at-the-box-management

  What is Out-of-Band (OOB) Management?

  Out-of-band management refers to the ability to manage and monitor a server independently of the operating system or primary network interfaces. Dell PowerEdge servers utilize the Integrated Dell Remote Access Controller (iDRAC) for

  OOB management.

  Characteristics of Out-of-Band Management:

  Independent Operation:

  OOB management operates independently of the server's operating system. It remains functional even if the server is powered off (as long as it is connected to a power source) or the operating system is unresponsive.

  Dedicated Network Connection:

  OOB management uses a network connection separate from the data network . This is typically achieved via a dedicated management port on the server, ensuring that management traffic does not interfere with data traffic.

  Option C reflects this characteristic accurately.

  No Need for Operating System Agents:

  OOB management does not require any software agents running on the operating system. Management tasks are performed directly through the iDRAC hardware.

  Option D is incorrect because OOB management does not require an OS-level agent.

  Remote Management Capabilities:

  Allows administrators to perform tasks such as monitoring hardware status, configuring settings, updating firmware, and even powering the server on or off remotely.

  Explanation of Options:

  Option A: Cannot manage a powered off device

  Incorrect: OOB management allows for the management of powered-off devices as long as the iDRAC is receiving power.

  Option B: Gives firmware update access to all users

  Incorrect: Access to firmware updates and other critical functions is controlled via user permissions within iDRAC. Not all users have equal access.

  Option C: Network connection separate from data source

  Correct: OOB management uses a dedicated network interface, separate from the server's primary data network interfaces.

  Option D: Requires an operating system level agent

  Incorrect: OOB management is independent of the operating system and does not require any OS-level agents.

  Dell Operate

  References:

  Server Management and Configuration Tools (14%)

  Define in-band and OOB management and at-the-box-management: Understanding the differences between in-band (requiring OS-level interaction) and out-of-band management is crucial for effective server administration.

  Conclusion:

  Dell PowerEdge server out-of-band management is characterized by the use of a network connection separate from the data source , allowing for independent and remote management of the server hardware without relying on the operating

  system.

• Question 19:

  Which option is a granular user privilege configurable in the iDRAC9?

  A. Access virtual console
  B. Readonly
  C. Edit logs
  D. Change dashboard view
  A. Access virtual console

  ---

  Explanation

  Understanding Granular User Privileges in iDRAC9

  System Administration (18%)

  Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

  Granular User Privileges in iDRAC9

  iDRAC9 provides the ability to assign specific privileges to user accounts, allowing for fine-grained control over what actions users can perform.

  Explanation of Options

  Option A: Access virtual console

  Access to the virtual console is a specific privilege that can be granted or denied to individual users in iDRAC9. This allows administrators to control who can remotely access the server's console.

  Conclusion: Correct Answer .

  Option B: Readonly

  The Readonly privilege is a role that allows users to view settings without making changes. It is not considered a granular privilege but a predefined user role.

  Conclusion: Not as granular as specific privileges.

  Option C: Edit logs

  iDRAC9 does not provide a specific privilege to edit logs, as logs are critical records that should not be altered for security and auditing purposes.

  Conclusion: Incorrect.

  Option D: Change dashboard view

  Changing the dashboard view is a user interface preference and not typically a privilege that is controlled or assigned in iDRAC9.

  Conclusion: Incorrect.

  Dell Operate References

  System Administration (18%)

  Configure user access: Understanding how to assign and manage user privileges in iDRAC9.

  Server Management and Configuration Tools (14%)

  Define the function of the iDRAC, login procedures, licensing, and connection methods:

  Emphasizes the importance of controlling access to management functions.

  Conclusion

  Access virtual console is a granular user privilege configurable in iDRAC9, allowing administrators to control remote console access on a per-user basis.

• Question 20:

  Which AMD powered server supports dual CPU. 16G, and iDRAC Express?

  A. R7625
  B. R7525
  C. R960
  D. R6615
  A. R7625

  ---

  Explanation

  Identifying the AMD-Powered Server that Supports Dual CPU, 16G, and iDRAC Express Server Portfolio and Features (10%) Define chassis form factors and numbering nomenclature Identify server features and specifications Server Components (26%) Define the different processor, memory options, and memory configurations Understanding the Server Models Option A: R7625 Features: Processor: AMD EPYC processors CPU Support: Dual-socket (supports two CPUs) Generation: 16th Generation (16G) Management: Comes with iDRAC9, supporting iDRAC Express Analysis: Meets all the specified criteria: AMD-powered Supports dual CPUs Is a 16G server Supports iDRAC Express Conclusion: Correct Answer

  Explanation of Other Options Option B: R7525 Features: Processor: AMD EPYC processors CPU Support: Dual-socket Generation: 15th Generation (15G) Management: Supports iDRAC9 Analysis: Does not meet the 16G requirement (it's a 15G server) Option C: R960 Features: Processor: Typically Intel Xeon processors CPU Support: Quad-socket (supports up to four CPUs) Generation: 14th or 15th Generation Analysis: Not AMD-powered Does not meet the dual CPU and 16G requirements Option D: R6615 Features: Processor: AMD EPYC processors CPU Support: Single-socket (supports one CPU Generation: 16th Generation (16G) Analysis: Does not support dual CPUs (only supports a single CPU) Dell Operate References Server Portfolio and Features (10%) Identify server features and specifications: Knowing the specifications of each server model is crucial for matching customer requirements.

  Server Components (26%)

  Define the different processor, memory options, and memory configurations: Understanding CPU support and generation compatibility.

  Conclusion

  The Dell PowerEdge R7625 is the AMD-powered server that supports dual CPUs, is part of the 16th Generation, and comes with iDRAC Express. It aligns perfectly with the specified requirements.
