IBM C9550-605 Online Practice Questions and Exam Preparation

IBM C9550-605 Online Questions & Answers

• Question 91:

  An integration developer is developing a mediation flow to integrate two applications using different message formats. The developer opts to use XSL Transformation mediation primitive to map the input and output messages. Which of the following property name-value pair must be configured for this XSL Transformation primitive to ensure only the body can be transformed?

  A. Root=/body
  B. Root =/smo/body
  C. XPath=/body
  D. XPath =/smo/body
  D. XPath =/smo/body

• Question 92:

  An integration developer is developing a mediation flow with multiple branches that need to be executed in a specific order. The integration developer plans to use the Flow Order mediation primitive to realize this situation. Which of the following are correct statements for the Flow Order primitive?

  A. A Flow Order primitive has one input terminal and can have any number of output terminals.
  B. A Flow Order primitive must be used at the beginning of a mediation request/response flow.
  C. Each output terminal of a Flow Order primitive is executed with an input message modified by the previous branch.
  D. The properties of a Flow Order primitive can be promoted to be configured at runtime.
  E. The output terminals are executed in the order that they are defined on the primitive, with each branch completing before the next starts.
  A. A Flow Order primitive has one input terminal and can have any number of output terminals.
  E. The output terminals are executed in the order that they are defined on the primitive, with each branch completing before the next starts.

• Question 93:

  During development of an SCA component, an integration developer configured event monitoring as follows: Destination = Audit Log Monitor = All Event Context = Digest Which one of the following statements indicates the level of the stored event data and its availability?

  A. The key attribute value of the business object is stored and is available through CEI.
  B. The key attribute value of the business object is stored but is not available through CEI.
  C. The entire business object is stored but is not available through CEI.
  D. The entire business object is stored and is available through Common Event Infrastructure (CEI).
  B. The key attribute value of the business object is stored but is not available through CEI.

• Question 94:

  Which part of the enterprise service bus reference architecture supports the reception of inbound messages, message processing, and the sending of response messages?

  A. Message model
  B. Mediation flow
  C. Service registry
  D. Communication protocol
  B. Mediation flow

• Question 95:

  A PurchaseOrder business object and a SalesOrder business object inherit from an abstract Order business object. Both PurchaseOrder and SalesOrder objects require an orderDate property. However, PurchaseOrder requires an orderType property that is not required by SalesOrder. What is the BEST way to model the objects?

  A. Define the orderDate property in the abstract OrderDefine the orderType property in PurchaseOrder
  B. Define the orderDate property in the abstract OrderDefine the orderType property in the abstract Order
  C. Define the orderDate property in PurchaseOrder and SalesOrderDefine the orderType property in PurchaseOrder
  D. Define the orderDate property in PurchaseOrder and SalesOrderDefine the orderType property in the abstract Order
  A. Define the orderDate property in the abstract OrderDefine the orderType property in PurchaseOrder

• Question 96:

  An integration developer is creating emulators using Component Test Explorer. The language used to create emulators is:

  A. Java.
  B. SCDL.
  C. BPEL.
  D. Groovy.
  D. Groovy.

• Question 97:

  An integration developer is designing an XML map and must update a particular value in the target to a fixed value that is not dependent on the source. What would be the most appropriate transform type for this situation?

  A. Set
  B. Move
  C. Append
  D. Assign
  C. Append

• Question 98:

  An integration developer has implemented an error handling strategy for a mediation module as illustrated in the Exhibit. According to the strategy, if a runtime exception occurs during the invocation of the target service, the module must:



  store a trace message in a file



  store an error code in a DB error table



  throw an exception in order to propagate the error to the invoking component

  But at runtime the developer observes that when a runtime error occurs, no error code is written in the DB even if the fail primitive is executed.

  What could be the most likely cause of the problem?

  A. The 'Join transaction' qualifier of the 'JDBCImport' interface is set to True' while it must be set to 'False'.
  B. The 'Transaction' qualifier of the 'ErrorHandlerMed' implementation is set to 'Global' while it must be set to 'Local'
  C. The 'Join transaction' qualifier of the 'TargetServicelFPartner' interface is set to '' while it must be set to True'.
  D. The 'Asynchronous invocation' qualifier of the 'JDBCImportPartner' reference is set to 'Commit' while it must be set to 'Call'.
  A. The 'Join transaction' qualifier of the 'JDBCImport' interface is set to True' while it must be set to 'False'.

• Question 99:

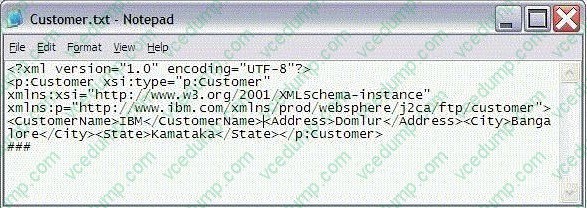

  Refer to the Exhibit.



  An integration developer is developing a module that needs to retrieve the content of a remote file via FTP. The integration developer intends to use an FTP Adapter to perform the operation. Which are the required steps to use the adapter in the correct way?

  A. Configure an FTP Inbound Adapter export with a Retrieve operation and an XML DataHandler.
  B. Configure an FTP Inbound Adapter export with a Retrieve operation and the default FTPFileBaseDataBinding data format
  C. Configure an FTP Outbound Adapter import with a Retrieve operation and an XML DataHandler.
  D. Configure an FTP Outbound Adapter import with a Retrieve operation and the defaultFTPFileBaseDataBinding data format.
  C. Configure an FTP Outbound Adapter import with a Retrieve operation and an XML DataHandler.

• Question 100:

  An integration developer implemented a mediation flow component that asynchronously invokes a target service through an SCA Import binding. The following Asynchronous reliability qualifiers have been set for the target service reference of the mediation flow component: ?Reliability: Best effort ? Request expiration:0 ? Response expiration: 60 seconds What is the behavior at runtime if the messaging engine of the WebSphere Enterprise Service Bus goes down after the message has been sent but before the target is invoked and comes back up and running in 30 seconds?

  A. The message is lost and no recovery can be performed.
  B. The message is automatically recovered and sent to the target service.
  C. The message can be manually recovered from the failed event manager and sent to the target service.
  D. The message can be manually recovered from the System Exception Destination and sent to the target service.
  A. The message is lost and no recovery can be performed.
