IBM IBM Certifications C9530-272 Questions & Answers

• Question 11:

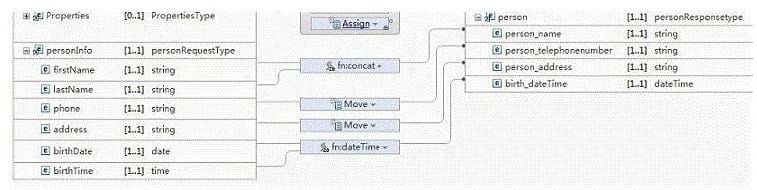

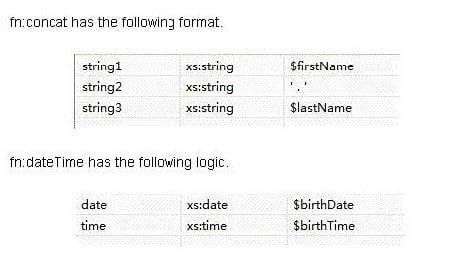

  A company has person information in its HR system and another application system. Person schemas in these two systems are similar. The solution developer uses the Mapping node to map the person information when developing an application. Following is the detailed information about the Mapping node.

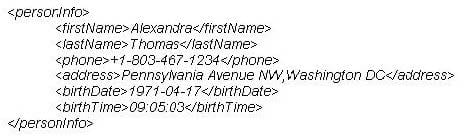

  This is the person information record that exists in the HR system.



  After the solution developer performs this transformation for this person information, which one of following results is correct?

  A. A. Alexandra . Thomas +1-803-467-1234 Pennsylvania Avenue NW,Washington DC 1971-04-17 09:05:03

  B. B. Alexandra . Thomas +1-803-467-1234 Pennsylvania Avenue NW,Washington DC 1971-04-17T09:05:03

  C. C. Alexandra Thomas +1-803-467-1234 Pennsylvania Avenue NW,Washington DC 1971-04-17T09:05:03

  D. D. Alexandra Thomas +1-803-467-1234 Pennsylvania Avenue NW,Washington DC 1971-04-17 09:05:03

  Correct Answer: B

• Question 12:

  A solution developer has deployed a message flow containing the DatabaseRetrieve node. The connection properties to the database were created using the mqsicreateconfigurableservice command. The solution developer has been told that the database is to be relocated to a different server. How should the connection properties be updated by the solution developer to reflect the new server?

  A. Run mqsisetdbparms.

  B. Run mqsichangebroker.

  C. Run mqsichangeproperties.

  D. Use a context sensitive menu in the Broker view of the Toolkit.

  Correct Answer: C

• Question 13:

  A solution developer needs to use the recording data feature for auditing purpose. The expected message size is up to 10 MB and the target database is DB2. Aside from the default, what additional configuration (s), if any, does the solution developer need to do?

  A. Use the supplied DB2 schema without changes.

  B. Update the DataCaptureStore configurable service to allow the extra size.

  C. Customize the supplied DB2 schema to increase the maximum message body size.

  D. Create a new database table to store the message body and configure the broker to use the new table.

  Correct Answer: C

• Question 14:

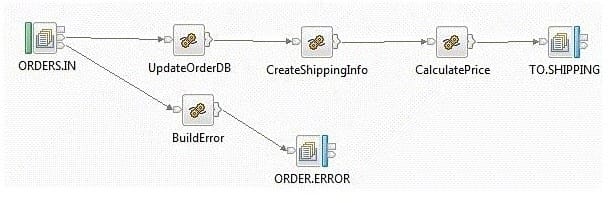

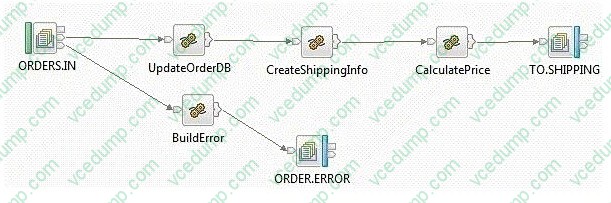

  A company has implemented the following message flow to process orders received:



  The ORDERS.IN node has the Transaction mode set to Yes.

  When a failure occurs in the CalculatePrice node it is noticed that the database updates performed in the UpdateOrderDB node are not rolled back. How should the solution developer modify the flow in order to rollback the database updates in the event of a failure?

  A. Add a Throw node following ORDER.ERROR.

  B. Change the Transaction mode of ORDERS.IN to Automatic.

  C. Set the Throw exception on database error property on UpdateOrderDB.

  D. Insert a TryCatch node between UpdateOrderDB and CreateShippingInfo to handle the error.

  Correct Answer: A

• Question 15:

  A solution developer has been informed of a problem with a message flow. Based on the error given, the problem seems to occur in ESQL code. The solution developer determines the need to debug the code. How does the solution developer set a breakpoint in the ESQL code?

  A. 1. Right click message flow

  2.

  Set breakpoint in appropriate location

  3.

  Redeploy flow

  B. 1. Right click Compute node

  2.

  Choose open ESQL

  3.

  Set breakpoint on right hand side margin

  4.

  Choose Debug

  C. 1. Double click Compute node

  2.

  Find code breakpoint location

  3.

  Right click left margin of code window beside this location

  4.

  Choose Add Breakpoint

  D. 1. Double click JavaCompute node

  2.

  Find code breakpoint location

  3.

  Left click margin of code window beside this location

  4.

  Choose Add Breakpoint

  Correct Answer: C

• Question 16:

  To activate any new function included in a fix pack, which command must the solution developer issue?

  A. mqsicvp command.

  B. mqsireioad command.

  C. mqsichangebroker command with the -f parameter.

  D. mqsichangeproperties command with the -n parameter.

  Correct Answer: C

• Question 17:

  To create a message definition, a solution developer has performed the following steps:

  1.Create a new message set 2.Create a new message definition file 3.Add a Tagged/Delimited String

  (TDS) physical format to the message set 4.Import a COBOL copybook 5.Add a Custom Wire Formats

  (CWF) physical format to the message set 6.Import a C header file Which of the following is true?

  A. The message definition file created in step 2 contains no logical definitions.

  B. The message definition file created in step 2 does not support any physical formats.

  C. The length of the fields on the TDS format in the C message definition are not set.

  D. The length of the fields on the CWF format in the COBOL message definition are not set.

  Correct Answer: A

• Question 18:

  A solution developer generates a pattern instance project from a built-in pattern. What should the solution developer do to change one or more of the pattern parameters of the pattern instance project?

  A. Modify the appropriate parameters in the pattern instance configuration file, and then regenerate the pattern instance project.

  B. Create a new pattern instance, set the pattern parameters in the instance, and then generate a new pattern instance project.

  C. Create a new pattern instance, modify the appropriate parameters in the pattern instance configuration file, and then regenerate the pattern instance project.

  D. Delete the pattern instance configuration file, create a new pattern instance, modify the new pattern instance configuration file as appropriate, and then generate the new pattern instance project.

  Correct Answer: B

• Question 19:

  A solution developer needs to troubleshoot why a message flow does not process any messages from a remote resource. To review how the message flow interacts with all external resources, where should the solution developer look?

  A. The ODBC log.

  B. The JVERBOSE log.

  C. The WebSphere MQ log.

  D. The WebSphere Message Broker Activity log.

  Correct Answer: D

• Question 20:

  A message flow that uses an SAPRequest node is reporting an expired password error in the system log. Which command does the solution developer need to issue to update the expired password?

  A. mqsicvp

  B. mqsisetdbparms

  C. mqsichangebroker

  D. mqsichangeproperties

  Correct Answer: B
