IBM IBM Certifications C9530-272 Questions & Answers

• Question 41:

  A solution developer needs to enhance an order processing message flow to create a file of all invoices processed, to show the date, time, invoice number and amount. The solution developer adds a Trace node at the end of the flow, and to also store the following information: Environment Invoice Number Amount Which Trace node pattern will provide the required output?

  A. Time=${CURRENT_TIMESTAMP} Invoice=${Environment.Invoice.Number || ' ' || Environment.Invoice.Amount}

  B. Time=${fn:CURRENT_TIMESTAMP} Invoice=${Environment.Invoice.Number || ' ' || Environment.Invoice.Amount}

  C. Time=${esql:CURRENT_TIMESTAMP} Invoice=${esql:CONCAT(Environment.Invoice.Number, ' ', Environment.Invoice.Amount)}

  D. Time=${CURRENT_TIMESTAMP} Invoice=${fn:CONCAT(Environment.Invoice.Number, ' ', Environment.Invoice.Amount)}

  Correct Answer: A

• Question 42:

  A solution developer is investigating a problem where a message flow does not run to completion. The message flow includes an aggregation block. The solution developer determines that messages are accumulating at the AggregateReply node. In order to resolve the problem, the solution developer needs to:

  A. wire the AggregateReply Timeout terminal.

  B. change the AggregateControl Timeout property to a nonzero positive value.

  C. change the AggregateReply Unknown message timeout property to a nonzero positive value.

  D. set the AggregateControl Timeout location property to specify where incomplete messages should be sent.

  Correct Answer: B

• Question 43:

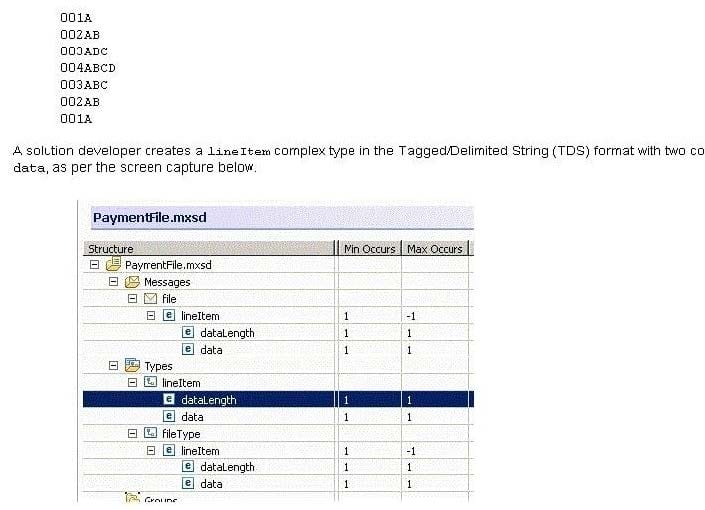

  An application sends a length encoded file that looks like the extract below. The first 3 bytes of each record indicates the size of the data that follows it.



  If both of these elements have their Physical Type set to Text, which one of the following options must the solution developer choose to correctly model the input data?

  A. dataLength of type xsd:int A.dataLength of type xsd:int data of type xsd:int with Length Reference set to dataLengthdata of type xsd:int with Length Reference set to dataLength

  B. dataLength of type xsd:short B.dataLength of type xsd:short data of type xsd:string with Length Reference set to dataLengthdata of type xsd:string with Length Reference set to dataLength

  C. dataLength of type xsd:int C.dataLength of type xsd:int data of type xsd:string with Length Reference set to dataLength and Inclusive Length Reference enableddata of type xsd:string with Length Reference set to dataLength and Inclusive Length Reference enabled

  D. dataLength of type xsd:string D.dataLength of type xsd:string data of type xsd:string with Length Reference set to dataLength and Inclusive Length Reference enableddata of type xsd:string with Length Reference set to dataLength and Inclusive Length Reference enabled

  Correct Answer: B

• Question 44:

  A solution developer is setting up Message Broker for debugging flows. There is a need to set the JVM debug port to 2314 from command line for a specific execution group called "MDM" and a broker called "WMBBRK1". Which command does the solution developer need to use?

  A. mqsichangebroker WMBBRK1 -e MDM -o ComIbmJVMManager -n jvmDebugPort -v

  B. mqsireportproperties WMBBRK1 -e MDM -i ComIbmJVMManager -n jvmDebugPort -v

  C. mqsichangeproperties WMBBRK1 -e MDM -o ComIbmJVMManager -n jvmDebugPort -v

  D. mqsichangeproperties WMBBRK1 -e MDM -i ComIbmJVMManager -n jvmDebugPort -v

  Correct Answer: C

• Question 45:

  A bank uses Process Server to implement a supervisor based, credit line approval process. Once initiated, the process does not return a response. This Process Server workflow needs to be started every time the Message Broker receives a new credit increase transaction. To implement this requirement, a solution developer can design a message flow that uses:

  A. Publication Node

  B. SCARequest Node

  C. a combination of SOAPAsyncRequest and SOAPAsyncResponse

  D. JavaCompute Node to invoke the process flow JAR files that are generated

  Correct Answer: B

• Question 46:

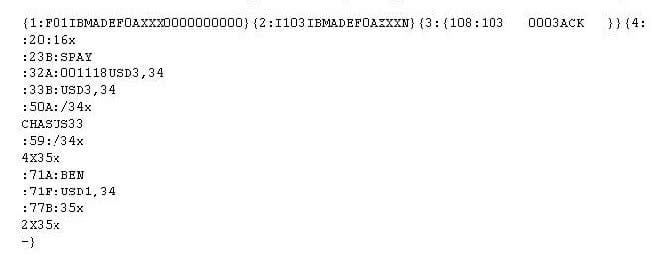

  An international fund transfer acknowledgement message having the below format is to be validated, before being sent to the payment gateway.



  A solution developer has to implement a message validator for these transactions. What message domain should the solution developer use to do so?

  A. MIME

  B. MRM-TDS

  C. MRM-CWF

  D. DataObject

  Correct Answer: B

• Question 47:

  A solution developer needs to transform a message. As such, the solution developer needs to insert the content from a input message tree into a storage area of Environment in one node, and then transform the message and Environment in another node into the output message tree. To do so, what can the solution developer use?

  A. Perl

  B. ESQL

  C. XSL Stylesheet

  D. Graphical Data Mapping

  Correct Answer: B

• Question 48:

  A solution developer creates a message flow that includes an XSLTransform node. The node property specifies that the XSL style sheet is to be cached. The solution developer deploys the XSL style sheet in the BAR file with the message flow. Subsequently, the style sheet needs to be revised. How does the solution developer enable the message flow to use the revised style sheet?

  A. Use the mqsicacheadmin command to refresh the cache with the new style sheet.

  B. Update the BAR file with the modified style sheet and redeploy it.

  C. Update the style sheet in the Application Development view of the Toolkit. Once the changes are saved, the style sheet is reloaded automatically by any message flows that use it.

  D. Update the style sheet in the directory specified by the Style sheet directory property of the XSLTransform node. Once the changes are saved, the style sheet is reloaded automatically by any message flows that use it.

  Correct Answer: B

• Question 49:

  A message flow needs to be designed such that available messages must be processed in sequential order. Missing messages in the sequence must be discarded if they appear later. The solution developer implements this message flow using Sequence and Resequence nodes. To meet the specifications for this message flow, how should the solution developer wire the Resequence node?

  A. The Out, Expire, and Missing terminals should be wired together.

  B. The Out terminal should be wired, but the Expire and Missing terminals should be left unwired.

  C. The Out and Missing terminals should be wired together, and the Expire terminal should be left unwired.

  D. The Out and Expire terminals should be wired together, and the Missing terminal should be left unwired.

  Correct Answer: D

• Question 50:

  A message flow with a JMSInput node receives a message with a blank Message Domain. The message is a TextMessage and does not include a JMSType header. Which domain parser should the solution developer expect the broker to use?

  A. XML

  B. BLOB

  C. XMLNSC

  D. JMSStream

  Correct Answer: A
